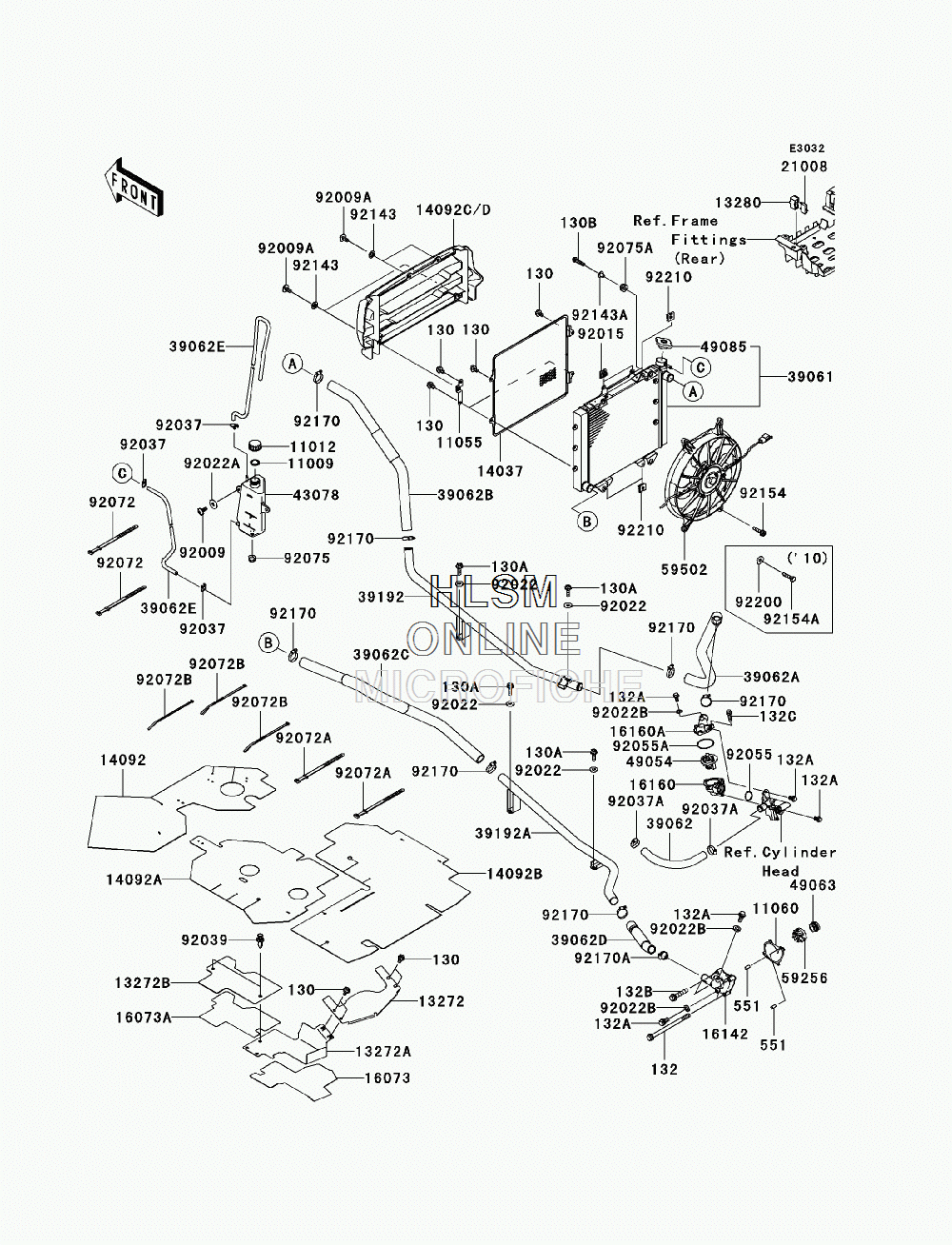

RADIATOR для Kawasaki TERYX 750 FI 4X4 SPORT (KRF750SAFA) - 2010 года выпуска
-
№АртикулНазвание
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1105511055-1953 BRACKET, RAD. COVERBRACKET, RAD. COVER
-
1106011060-1964 GASKET, WATER PUMPGASKET, WATER PUMP
-
1327213272-0729 PLATEPLATE
-
13272A13272-0738 PLATEPLATE
-
13272B13272-0739 PLATEPLATE
-
1328013280-0082 HOLDER, BREAKERHOLDER, BREAKER
-
1403714037-0104 SCREENSCREEN
-
1409214092-0083 COVERCOVER
-
14092A14092-0084 COVERCOVER
-
14092B14092-0085 COVERCOVER
-
14092C14092-0086-290 COVER, RADIATOR (L.GREEN)COVER, RADIATOR (L.GREEN)
-
1607316073-0110 INSULATORINSULATOR
-
16073A16073-0111 INSULATORINSULATOR
-
1614216142-0002 COVER-PUMP, WATERCOVER-PUMP, WATER
-
1616016160-0189 BODY, THERMOSTAT (LOWER)BODY, THERMOSTAT (LOWER)
-
16160A16160-0225 BODY, THERMOSTAT (UPPER)BODY, THERMOSTAT (UPPER)
-
2100821008-0008 BREAKER, RAD. FAN, 12ABREAKER, RAD. FAN, 12A
-
3906139061-0180 RADIATOR-ASSYRADIATOR-ASSY
-
3906239062-0316 HOSE-COOLING, FRONT HEAD-THERMOHOSE-COOLING, FRONT HEAD-THERMO
-
39062A39062-0317 HOSE-COOLING, THERMO-RIGHT HAND PIPEHOSE-COOLING, THERMO-RIGHT HAND PIPE
-
39062B39062-0318 HOSE-COOLING, RIGHT HAND PIPE-RAD.HOSE-COOLING, RIGHT HAND PIPE-RAD.
-
39062C39062-0319 HOSE-COOLING, RAD.-LEFT HAND PIPEHOSE-COOLING, RAD.-LEFT HAND PIPE
-
39062D39062-0320 HOSE-COOLING, RAD.-W/PHOSE-COOLING, RAD.-W/P
-
39062E39062-0324 HOSE-COOLING, 5.5X10.5X400HOSE-COOLING, 5.5X10.5X400
-
3919239192-0121 PIPE-WATER (RIGHT)PIPE-WATER (RIGHT)
-
39192A39192-0122 PIPE-WATER (LEFT)PIPE-WATER (LEFT)
-
4307843078-0041 RESERVOIRRESERVOIR
-
4905449054-1055 THERMOSTATTHERMOSTAT
-
4906349063-1055 SEAL-MECHANICAL, WATERSEAL-MECHANICAL, WATER
-
4908549085-0005 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
5925659256-1069 IMPELLERIMPELLER
-
5950259502-0047 FAN-ASSYFAN-ASSY
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
92009A92009-1662 SCREW, 6X14SCREW, 6X14
-
9201592015-1487 NUTNUT
-
9202292022-1342 WASHER, 6.5X16X2WASHER, 6.5X16X2
-
92022A92022-1346 WASHER, 6.5X20X1.6 (BLACK)WASHER, 6.5X20X1.6 (BLACK)
-
130130BB0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130A130BB0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
130B130BB0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
132132BB0690 BOLT-FLANGED-SMALL, 6X90BOLT-FLANGED-SMALL, 6X90
-
132A132BD0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132B132BD0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
132C132E0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
551551A0408 PIN-DOWEL, 4X8PIN-DOWEL, 4X8
-
92022B92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1589 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
9203992039-1229 RIVETRIVET
-
9205592055-1081 O-RING, 22.1X2.4O-RING, 22.1X2.4
-
92055A92055-1279 O-RING, 44.7X2.4O-RING, 44.7X2.4
-
9207292072-032 BAND, L=218BAND, L=218
-
92072A92072-056 BAND, L=186BAND, L=186
-
92072B92072-3509 BAND, L=292.1BAND, L=292.1
-
9207592075-1123 DAMPER, RUBBERDAMPER, RUBBER
-
92075A92075-209 DAMPERDAMPER
-
9214392143-1087 COLLARCOLLAR
-
92143A92143-1353 COLLARCOLLAR
-
92154A92154-0393 BOLTBOLT
-
9217092170-1284 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92170A92170-1497 CLAMPCLAMP
-
9220092200-0570 WASHERWASHER
-
9221092210-1323 NUTNUT
