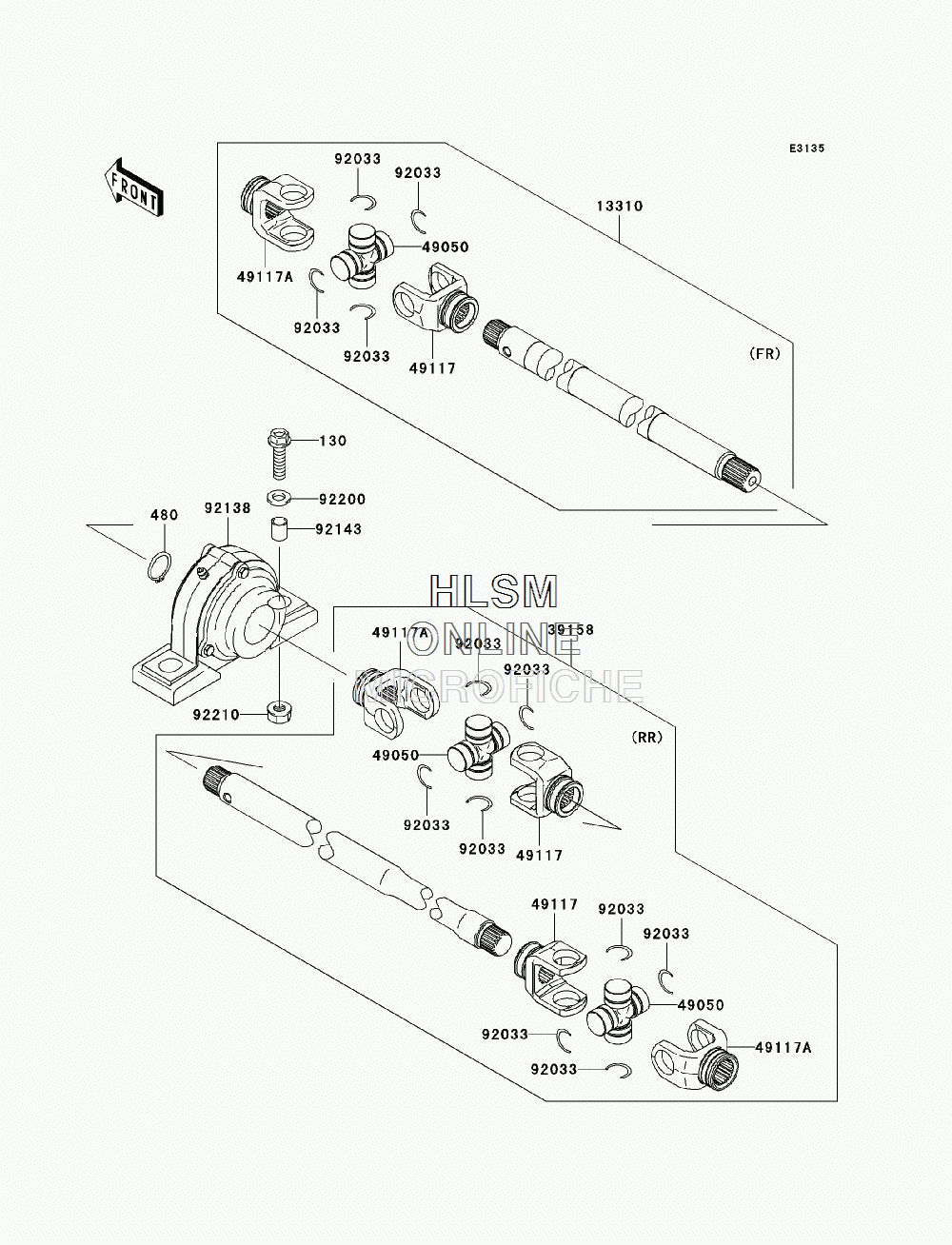

DRIVE SHAFT (PROPELLER) для Kawasaki MULE 4010 TRANS4X4 (KAF620RBF) - 2011 года выпуска
-
№АртикулНазвание
-
130130BB1035 BOLT-FLANGED,10X35BOLT-FLANGED,10X35
-
480480J2500 CIRCLIP-TYPE-C,25MMCIRCLIP-TYPE-C,25MM
-
1331013310-1027 SHAFT-ASSYSHAFT-ASSY
-
3915839158-7501 SHAFT-ASSY-DRIVE, REAR,PROPELLERSHAFT-ASSY-DRIVE, REAR,PROPELLER
-
4905049050-1075 SPIDERSPIDER
-
4911749117-1095 YOKE,DRIVEYOKE,DRIVE
-
49117A49117-1096 YOKE,DRIVEYOKE,DRIVE
-
9203392033-1030 RING-SNAPRING-SNAP
-
9213892138-0001 BEARING-COMPBEARING-COMP
-
9214392143-1634 COLLAR,10.3X12.7X15COLLAR,10.3X12.7X15
-
9220092200-1042 WASHER,10.5X19X2.3WASHER,10.5X19X2.3
-
9221092210-1204 NUT,LOCK,10MMNUT,LOCK,10MM
