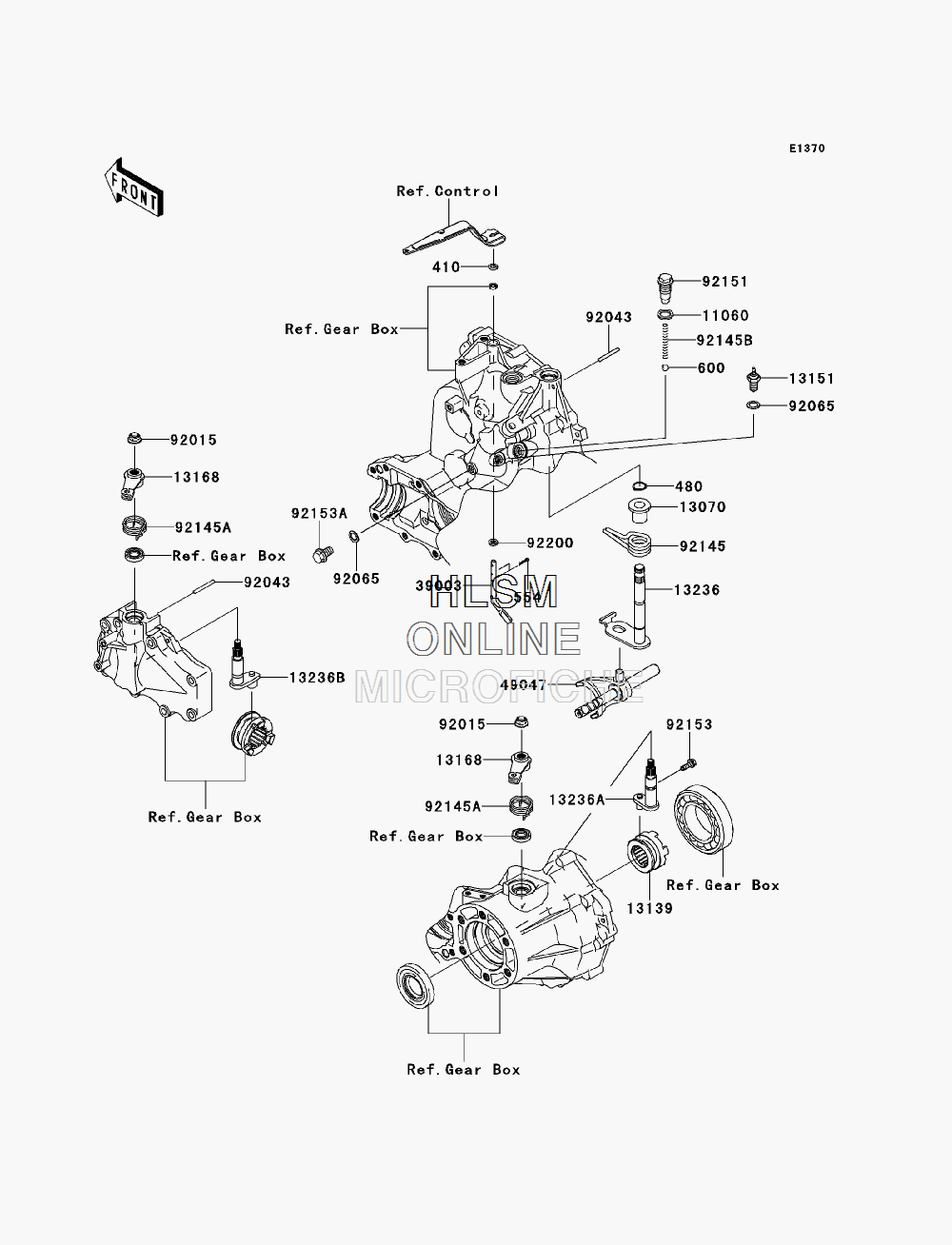

GEAR CHANGE MECHANISM для Kawasaki MULE 610 4X4 (KAF400ABF) - 2011 года выпуска
-
№АртикулНазвание
-
410410AA0600 WASHER-PLAIN-SMALLWASHER-PLAIN-SMALL
-
480480J1300 CIRCLIP-TYPE-C,13MMCIRCLIP-TYPE-C,13MM
-
554554DA0600 PIN-SNAPPIN-SNAP
-
600600A1000 BALL-STEEL,5/16BALL-STEEL,5/16
-
1106011060-1287 GASKET,14X20X2GASKET,14X20X2
-
1307013070-0030 GUIDEGUIDE
-
1313913139-0008 SHIFTER,DIFF LOCKSHIFTER,DIFF LOCK
-
1315113151-1080 SWITCH-COMP,NEUTRALSWITCH-COMP,NEUTRAL
-
1316813168-1523 LEVER,DIFF LOCKLEVER,DIFF LOCK
-
1323613236-0036 LEVER-COMP, FR/REARLEVER-COMP, FR/REAR
-
13236A13236-0037 LEVER-COMP,DIFF LOCKLEVER-COMP,DIFF LOCK
-
13236B13236-0168 LEVER-COMP,2WD/4WDLEVER-COMP,2WD/4WD
-
3900339003-1053 ARM-PIVOT,GOVERNORARM-PIVOT,GOVERNOR
-
4904749047-0013 ROD-SHIFT, FR/REARROD-SHIFT, FR/REAR
-
9201592015-1406 NUT,FLANGED,8MMNUT,FLANGED,8MM
-
9204392043-1579 PIN,4X34.8PIN,4X34.8
-
9206592065-058 GASKET,10.5X16X1GASKET,10.5X16X1
-
9214592145-0146 SPRINGSPRING
-
92145A92145-0226 SPRINGSPRING
-
92145B92145-1297 SPRING,CHANGE POSITIONSPRING,CHANGE POSITION
-
9215192151-1687 BOLT,CHANGE POSITIONBOLT,CHANGE POSITION
-
9215392153-0591 BOLT,6X16.6BOLT,6X16.6
-
92153A92153-0621 BOLT,10X16BOLT,10X16
-
9220092200-2029 WASHER,6.5X11.5X2.0WASHER,6.5X11.5X2.0
