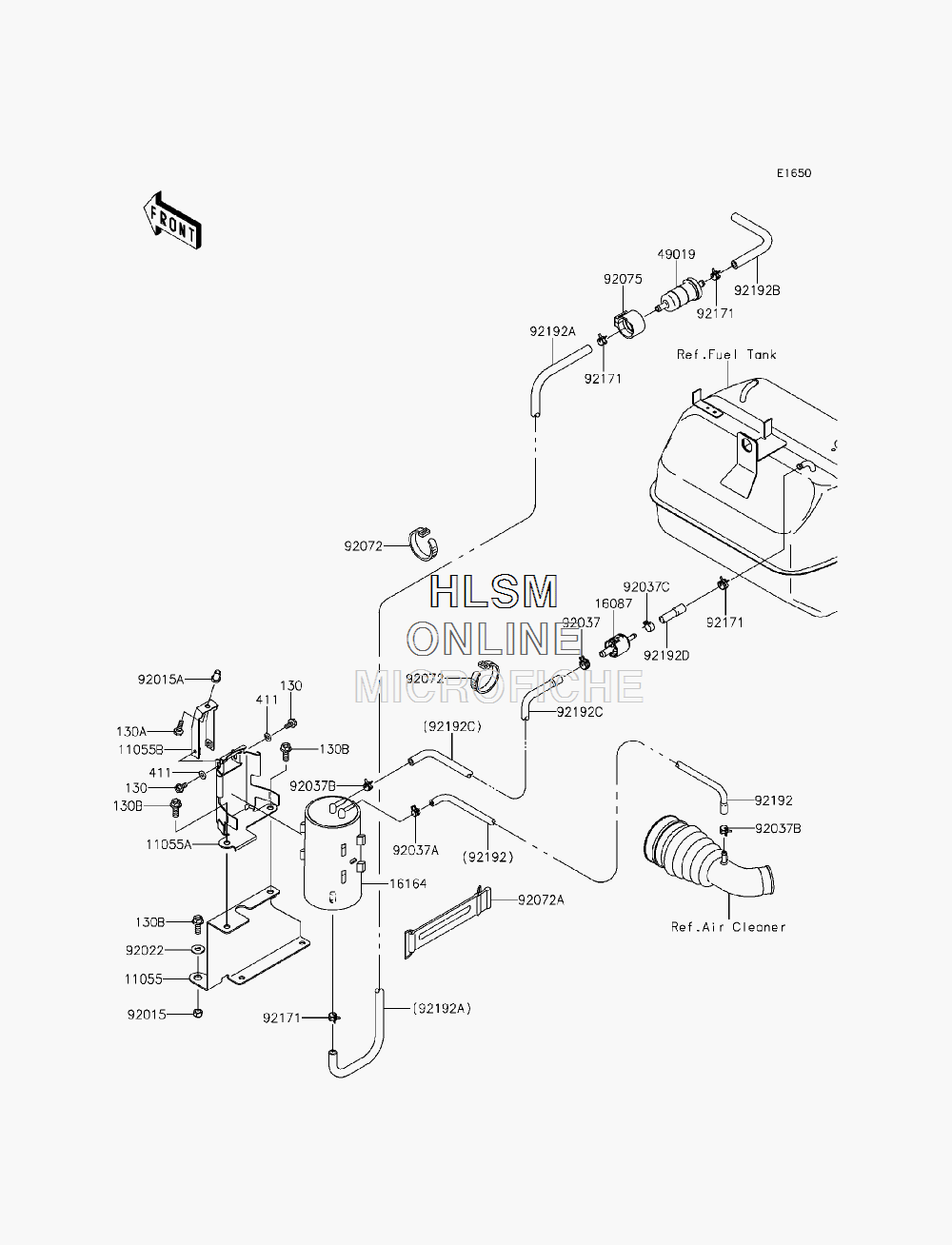

FUEL EVAPORATIVE SYSTEM для Kawasaki MULE 610 4X4 XC REALTREE APG HD (KAF400EBF) - 2011 года выпуска
-
№АртикулНазвание
-
130130BB0612 BOLT-FLANGED,6X12BOLT-FLANGED,6X12
-
130A130BB0618 BOLT-FLANGED,6X18BOLT-FLANGED,6X18
-
130B130BB0820 BOLT-FLANGED,8X20BOLT-FLANGED,8X20
-
411411AB0600 WASHER-PLAIN,6.5X13X1WASHER-PLAIN,6.5X13X1
-
1105511055-0262 BRACKET,LOWERBRACKET,LOWER
-
11055A11055-0263 BRACKET,UPPERBRACKET,UPPER
-
11055B11055-0401 BRACKET,FIX UPPERBRACKET,FIX UPPER
-
1608716087-0002 VALVE-CHECKVALVE-CHECK
-
1616416164-0007 CANISTERCANISTER
-
4901949019-1055 FILTER-FUELFILTER-FUEL
-
9201592015-1124 NUT,LOCK,8MMNUT,LOCK,8MM
-
92015A92015-1759 NUT,POP,6MMNUT,POP,6MM
-
9202292022-1317 WASHER,8.5X20X1.6,(BLACK)WASHER,8.5X20X1.6,(BLACK)
-
9203792037-1181 CLAMP,HOSE CLIPCLAMP,HOSE CLIP
-
92037A92037-1461 CLAMP,TUBECLAMP,TUBE
-
92037B92037-1505 CLAMP,TUBECLAMP,TUBE
-
92037C92037-2113 CLAMPCLAMP
-
9207292072-056 BAND,L=186BAND,L=186
-
92072A92072-1306 BAND,L=168BAND,L=168
-
9207592075-1853 DAMPER,FUEL FILTERDAMPER,FUEL FILTER
-
9217192171-0515 CLAMPCLAMP
-
9219292192-0591 TUBE,CANISTER-DUCTTUBE,CANISTER-DUCT
-
92192A92192-0592 TUBE,CANISTER-FILTERTUBE,CANISTER-FILTER
-
92192B92192-0609 TUBE,FILTER-AIRTUBE,FILTER-AIR
-
92192C92192-0768 TUBE,CHECK VALVE-CANISTERTUBE,CHECK VALVE-CANISTER
-
92192D92192-0769 TUBE,TANK-CHECK VALVETUBE,TANK-CHECK VALVE
