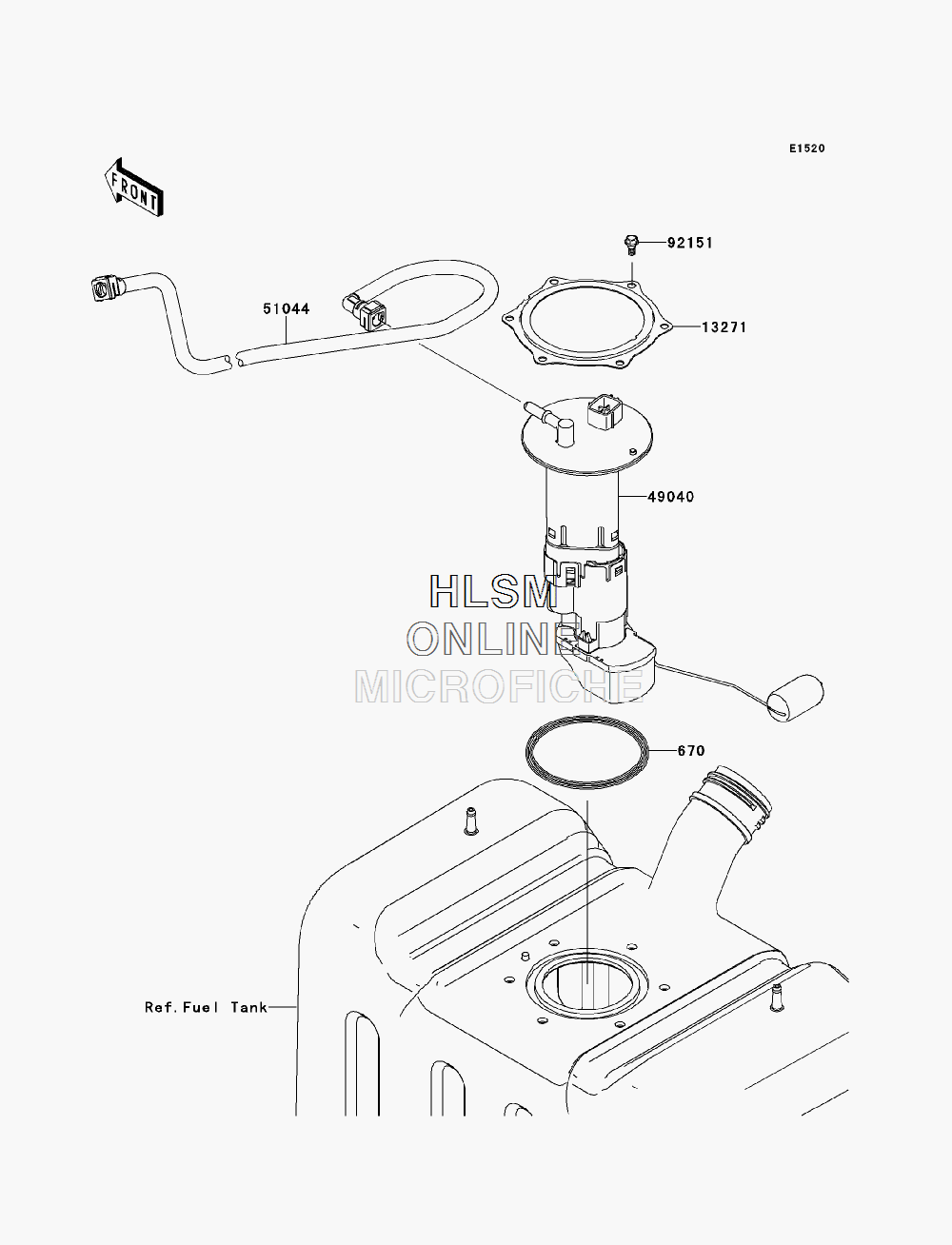

FUEL PUMP для Kawasaki TERYX 750 FI 4X4 LE (KRF750PBF) - 2011 года выпуска
-
№АртикулНазвание
-
670670E5090 O RINGO RING
-
1327113271-0980 PLATEPLATE
-
4904049040-0041 PUMP-FUELPUMP-FUEL
-
5104451044-0073 TUBE-ASSY,FUELTUBE-ASSY,FUEL
-
9215192151-1754 BOLT,FLANGED,5X11.5BOLT,FLANGED,5X11.5
