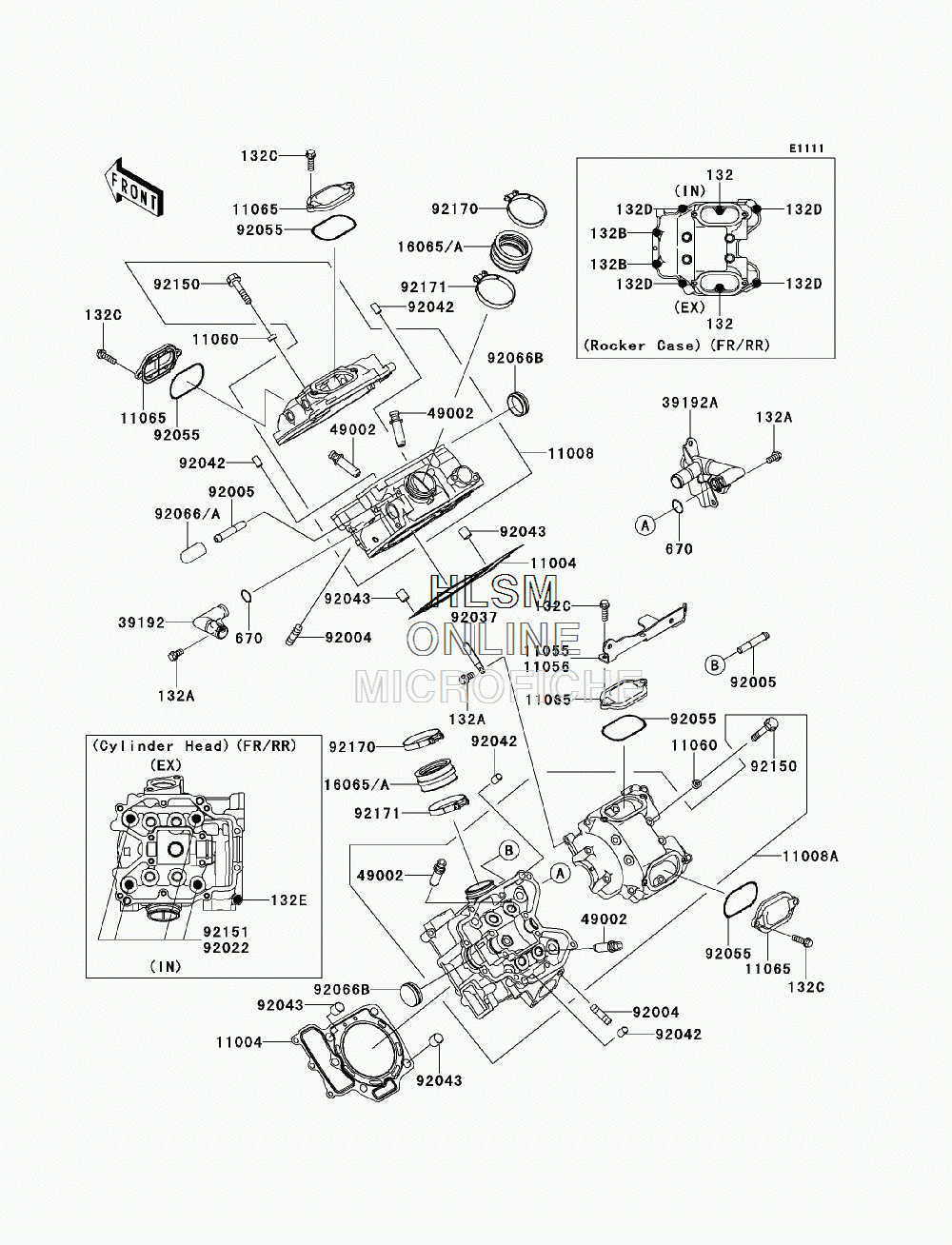

CYLINDER HEAD для Kawasaki TERYX 750 FI 4X4 LE (KRF750RBF) - 2011 года выпуска
-
№АртикулНазвание
-
132132BA0625 BOLT-FLANGED-SMALL,6X25BOLT-FLANGED-SMALL,6X25
-
132A132BD0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
132B132BD06130 BOLT-FLANGED-SMALL,6X130BOLT-FLANGED-SMALL,6X130
-
132C132BD0620 BOLT-FLANGED-SMALL,6X20BOLT-FLANGED-SMALL,6X20
-
132D132BD0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
132E132BD0695 BOLT-FLANGED-SMALL,6X95BOLT-FLANGED-SMALL,6X95
-
670670B2016 O RING,16MMO RING,16MM
-
1100411004-0011 GASKET-HEADGASKET-HEAD
-
1100811008-0021 HEAD-COMP-CYLINDER, FRONTHEAD-COMP-CYLINDER, FRONT
-
11008A11008-0022 HEAD-COMP-CYLINDER, REARHEAD-COMP-CYLINDER, REAR
-
1105511055-0500 BRACKETBRACKET
-
1106011060-1994 GASKET,6.2X12X0.3GASKET,6.2X12X0.3
-
1106511065-1152 CAP,ROCKER CASECAP,ROCKER CASE
-
1606516065-0046 HOLDER-CARBURETORHOLDER-CARBURETOR
-
3919239192-0119 PIPE-WATER, FRONTPIPE-WATER, FRONT
-
39192A39192-0120 PIPE-WATER, REARPIPE-WATER, REAR
-
4900249002-1097 GUIDE-VALVEGUIDE-VALVE
-
9200492004-1217 STUD,8X22STUD,8X22
-
9200592005-1264 FITTINGFITTING
-
9202292022-1720 WASHER,11.5X20.5X1.6WASHER,11.5X20.5X1.6
-
9203792037-1539 CLAMP,L=45CLAMP,L=45
-
9204292042-007 PIN,DOWEL,6.3X8X14PIN,DOWEL,6.3X8X14
-
9204392043-4009 PIN,10.1X12X14PIN,10.1X12X14
-
9205592055-0112 RING-ORING-O
-
9206692066-0095 PLUGPLUG
-
92066B92066-1289 PLUGPLUG
-
9215092150-1302 BOLT,FLANGED,6X55BOLT,FLANGED,6X55
-
9215192151-1917 BOLT,FLANGED,10X150BOLT,FLANGED,10X150
-
9217092170-1448 CLAMPCLAMP
-
9217192171-0722 CLAMPCLAMP
