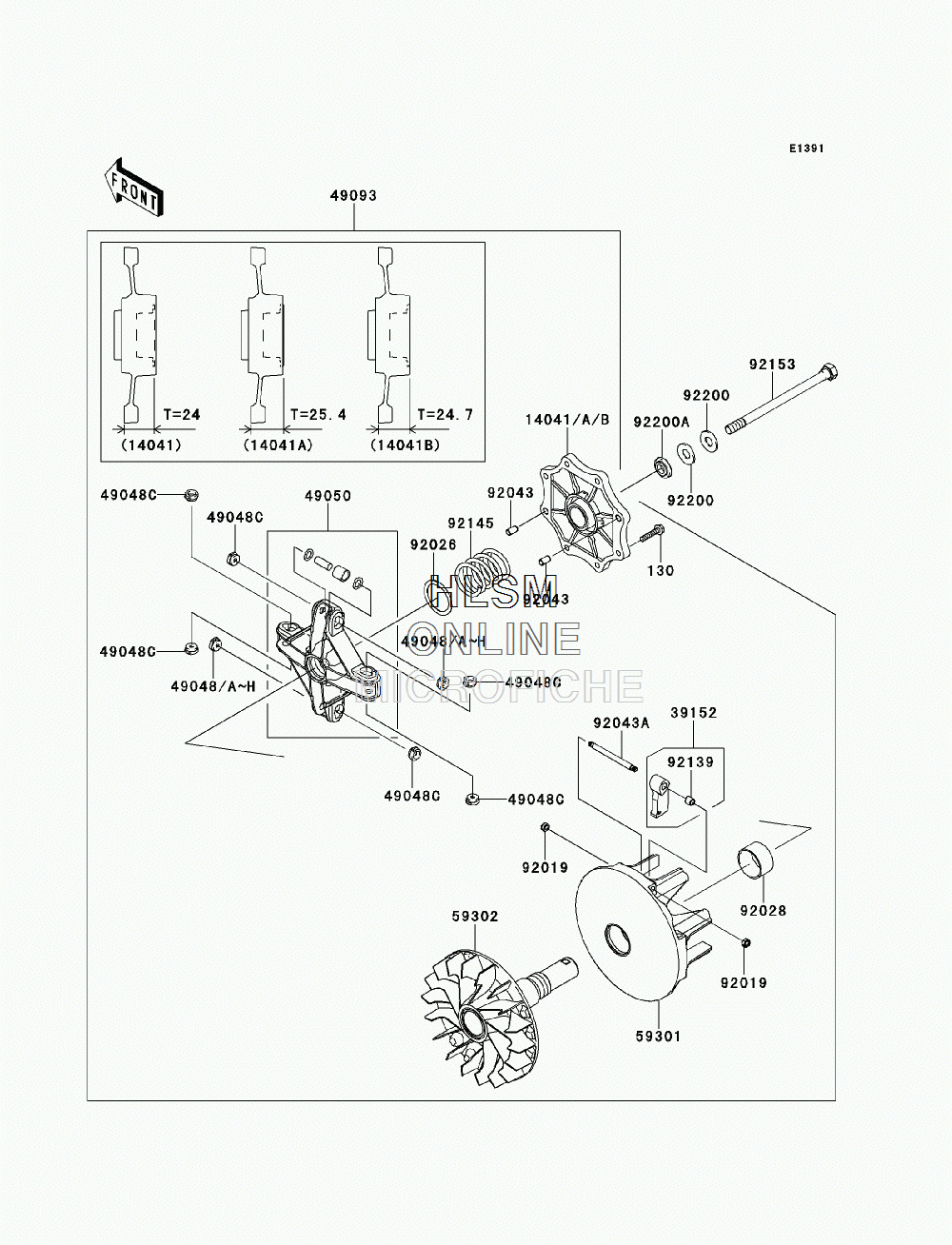

DRIVE CONVERTER для Kawasaki TERYX 750 FI 4X4 LE (SGE) (KRF750VBF) - 2011 года выпуска
-
№АртикулНазвание
-
130130CA0630 BOLT-FLANGED,6X30BOLT-FLANGED,6X30
-
1404114041-0035 COVER-COMP, REDCOVER-COMP, RED
-
14041A14041-0036 COVER-COMP,BLUECOVER-COMP,BLUE
-
14041B14041-0037 COVER-COMP,STDCOVER-COMP,STD
-
3915239152-0026 WEIGHT-RAMPWEIGHT-RAMP
-
4904849048-1087 SHOE,T=7.2SHOE,T=7.2
-
49048A49048-1088 SHOE,T=7.3SHOE,T=7.3
-
49048B49048-1089 SHOE,T=7.4SHOE,T=7.4
-
49048C49048-1090 SHOE,T=7.5SHOE,T=7.5
-
49048D49048-1091 SHOE,T=7.6SHOE,T=7.6
-
49048E49048-1092 SHOE,T=7.7SHOE,T=7.7
-
49048F49048-1093 SHOE,T=7.8SHOE,T=7.8
-
49048G49048-1094 SHOE,T=7.9SHOE,T=7.9
-
49048H49048-1095 SHOE,T=8.0SHOE,T=8.0
-
4905049050-0016 SPIDERSPIDER
-
4909349093-0029 CONVERTER-ASSY-DRIVECONVERTER-ASSY-DRIVE
-
5930159301-0007 SHEAVE-MOVABLESHEAVE-MOVABLE
-
5930259302-0021 SHEAVE-COMPSHEAVE-COMP
-
9201992019-008 NUT,LOCK,6MMNUT,LOCK,6MM
-
9202692026-1603 SPACER,39X49.5X1.0SPACER,39X49.5X1.0
-
9202892028-1975 BUSHINGBUSHING
-
9204392043-1263 PIN,6.2X8X14PIN,6.2X8X14
-
92043A92043-1688 PINPIN
-
9213992139-0215 BUSHINGBUSHING
-
9214592145-1465 SPRINGSPRING
-
9215392153-1726 BOLT,12X180BOLT,12X180
-
9220092200-1504 WASHER,SPRINGWASHER,SPRING
-
92200A92200-1634 WASHERWASHER
