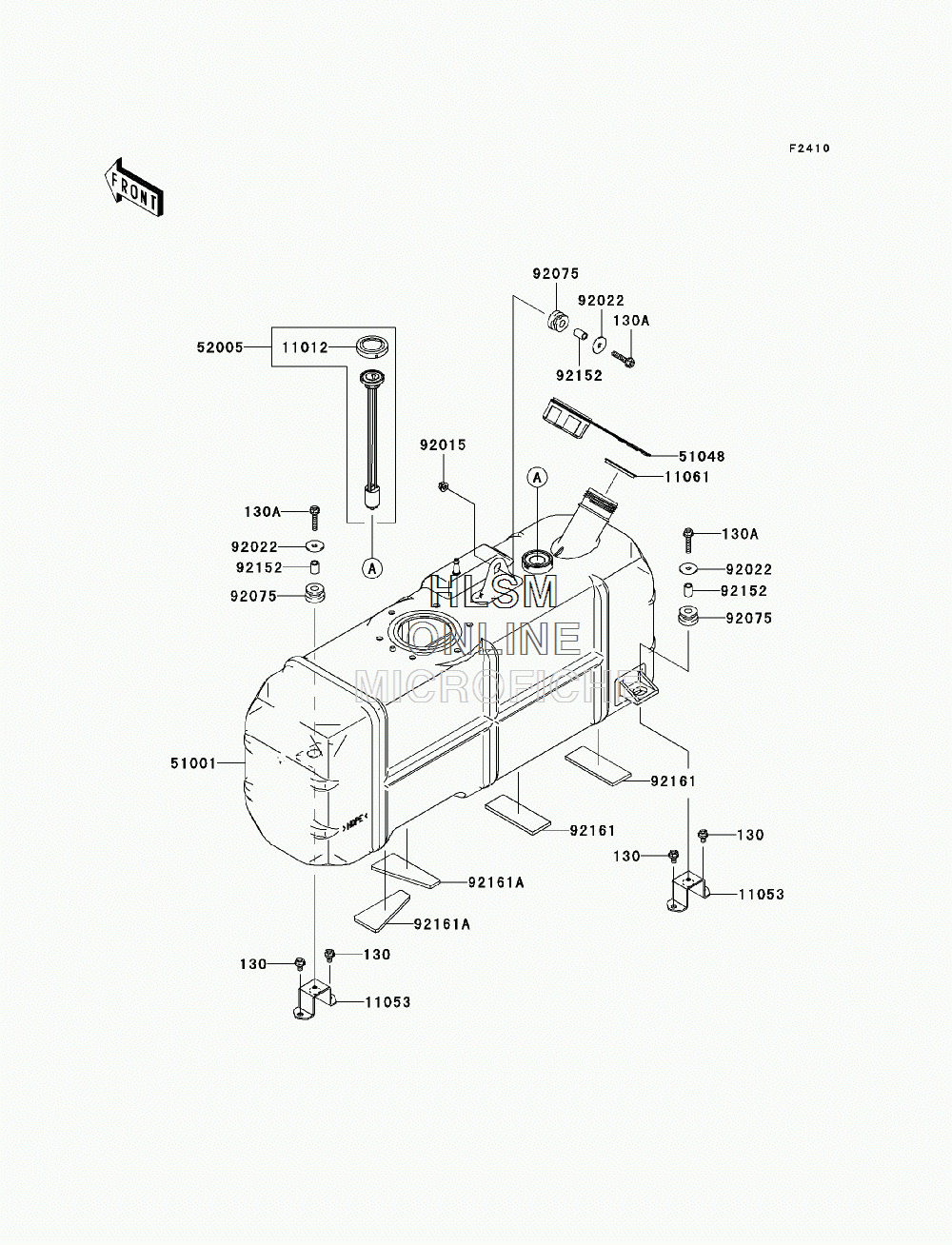

FUEL TANK для Kawasaki MULE 4010 TRANS4X4 (KAF620RCF) - 2012 года выпуска
-
№АртикулНазвание
-
130130BA0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
130A130BA0630 BOLT-FLANGED,6X30BOLT-FLANGED,6X30
-
1101211012-1627 CAP,FUEL GAUGECAP,FUEL GAUGE
-
1105311053-7512 BRACKETBRACKET
-
1106111061-0395 GASKET,FUEL TANK CAPGASKET,FUEL TANK CAP
-
5100151001-0293 TANK-COMP-FUELTANK-COMP-FUEL
-
5104851048-0026 CAP-ASSY-TANK,FUELCAP-ASSY-TANK,FUEL
-
5200552005-7501 GAUGE,FUELGAUGE,FUEL
-
9201592015-1675 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
9202292022-1690 WASHER,6.5X24X2WASHER,6.5X24X2
-
9207592075-1787 DAMPERDAMPER
-
9215292152-7511 COLLAR,7.02X10.32X15.3COLLAR,7.02X10.32X15.3
-
9216192161-0813 DAMPER,92X35X4.76DAMPER,92X35X4.76
-
92161A92161-0814 DAMPER,92X19X4.76DAMPER,92X19X4.76
