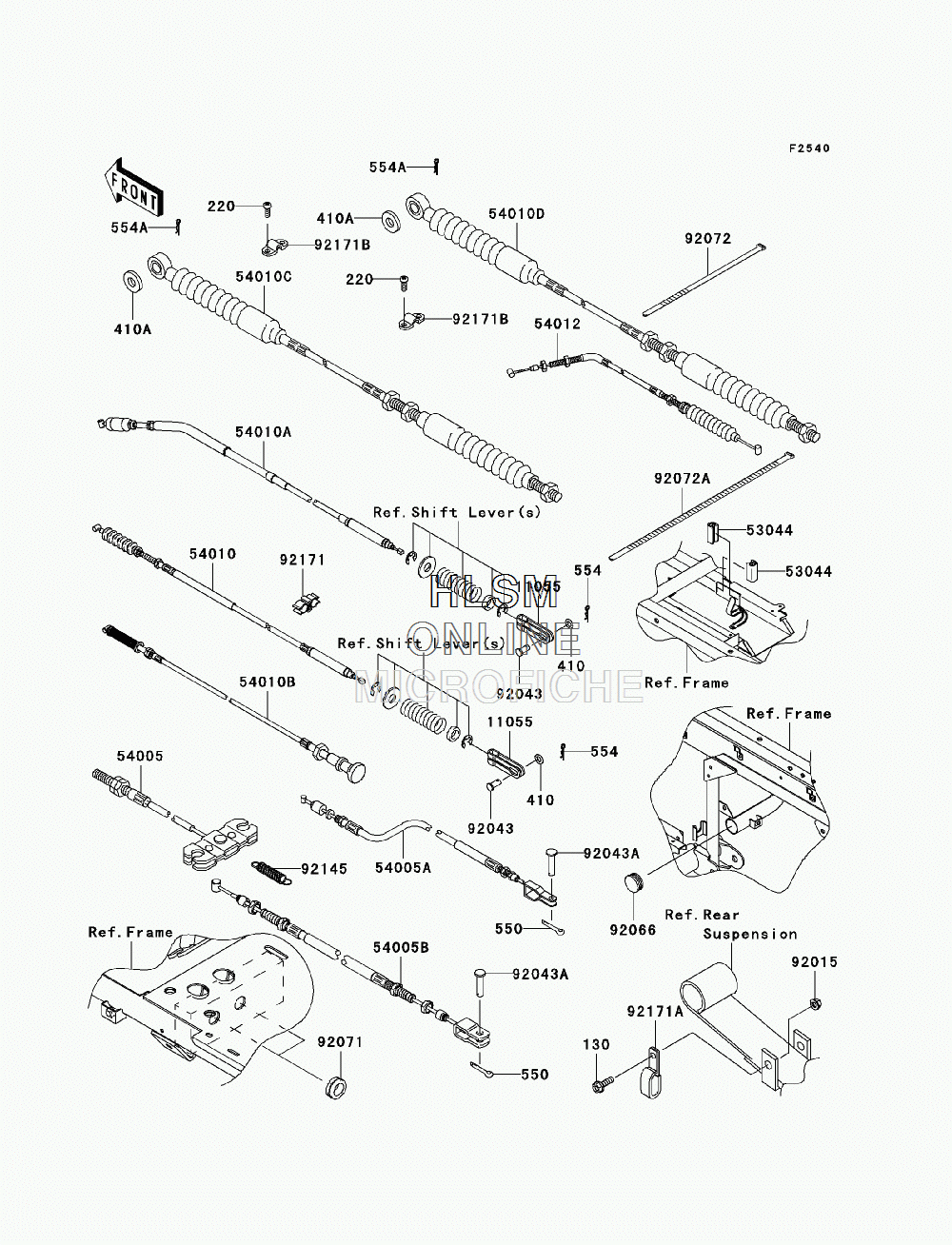

CABLES для Kawasaki MULE 4010 TRANS4X4 (KAF620RCFA) - 2012 года выпуска
-
№АртикулНазвание
-
130130AA0620 BOLT-FLANGED,6X20BOLT-FLANGED,6X20
-
220220AA0514 SCREW-PAN-CROSS,5X14SCREW-PAN-CROSS,5X14
-
410410AA0600 WASHER-PLAIN-SMALLWASHER-PLAIN-SMALL
-
410A410AA0800 WASHER-PLAIN-SMALL,8MMWASHER-PLAIN-SMALL,8MM
-
550550AA2022 PIN-COTTER,2.0X22PIN-COTTER,2.0X22
-
554554DA0600 PIN-SNAPPIN-SNAP
-
554A554DA0800 PIN-SNAPPIN-SNAP
-
1105511055-7505 BRACKET,DIFF LOCKBRACKET,DIFF LOCK
-
5304453044-7503 TRIM,L=22TRIM,L=22
-
5400554005-1198 CABLE-BRAKE,PARKING, FRONTCABLE-BRAKE,PARKING, FRONT
-
54005A54005-7502 CABLE-BRAKE,PARKING, REAR, RIGHT HANDCABLE-BRAKE,PARKING, REAR, RIGHT HAND
-
54005B54005-7503 CABLE-BRAKE,PARKING, REAR, LEFT HANDCABLE-BRAKE,PARKING, REAR, LEFT HAND
-
5401054010-0045 CABLE,2-4WDCABLE,2-4WD
-
54010A54010-0111 CABLE,DIFF LOCKCABLE,DIFF LOCK
-
54010B54010-0131 CABLE,HOODCABLE,HOOD
-
54010C54010-0132 CABLE,SHIFT CONTROLCABLE,SHIFT CONTROL
-
54010D54010-0133 CABLE,HI/LOWCABLE,HI/LOW
-
5401254012-7505 CABLE-THROTTLECABLE-THROTTLE
-
9201592015-1675 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
9204392043-092 PIN,6X11PIN,6X11
-
92043A92043-1039 PINPIN
-
9206692066-7503 PLUGPLUG
-
9207192071-1027 GROMMETGROMMET
-
9207292072-1239 BAND,L=188BAND,L=188
-
92072A92072-3872 BAND,L=368.3BAND,L=368.3
-
9214592145-7506 SPRINGSPRING
-
9217192171-0129 CLAMPCLAMP
-
92171A92171-0176 CLAMP,CABLECLAMP,CABLE
-
92171B92171-1203 CLAMPCLAMP
