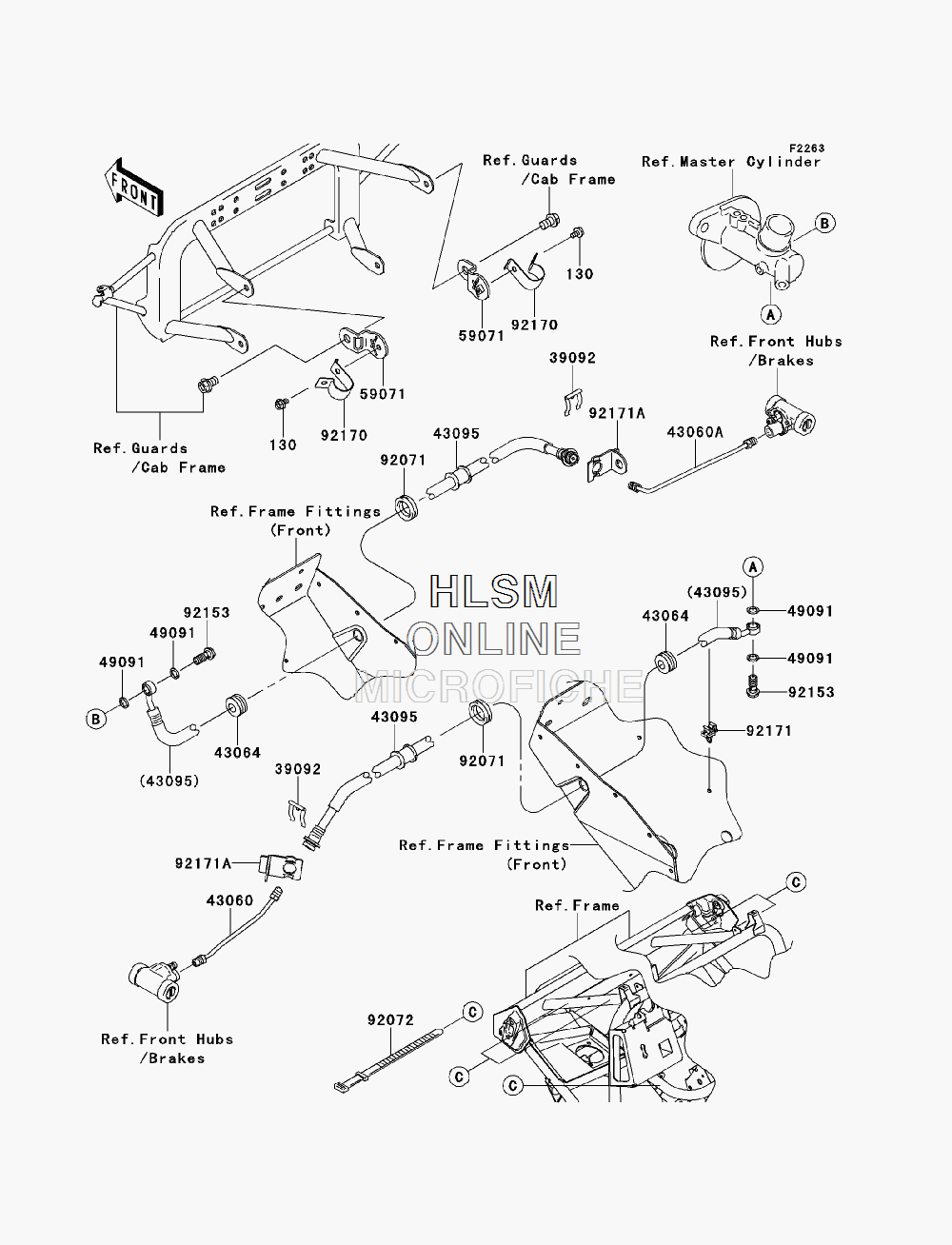

BRAKE PIPING - FRONT для Kawasaki MULE 600 (KAF400BCF) - 2012 года выпуска
-
№АртикулНазвание
-
130130AA0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
3909239092-1052 PIN-HAIRPIN-HAIR
-
4306043060-0001 PIPE-BRAKE, FRONT, LEFT HANDPIPE-BRAKE, FRONT, LEFT HAND
-
43060A43060-0002 PIPE-BRAKE, FRONT, RIGHT HANDPIPE-BRAKE, FRONT, RIGHT HAND
-
4306443064-007 GROMMET,HOSE CLAMPGROMMET,HOSE CLAMP
-
4309543095-0055 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4909149091-0001 WASHER-SEAL,10.1X14.5X1.5WASHER-SEAL,10.1X14.5X1.5
-
5907159071-0024 JOINTJOINT
-
9207192071-3704 GROMMETGROMMET
-
9207292072-056 BAND,L=186BAND,L=186
-
9215392153-0627 BOLT,OIL,L=23BOLT,OIL,L=23
-
9217092170-1173 CLAMP,HOSECLAMP,HOSE
-
9217192171-0339 CLAMPCLAMP
-
92171A92171-1654 CLAMPCLAMP
