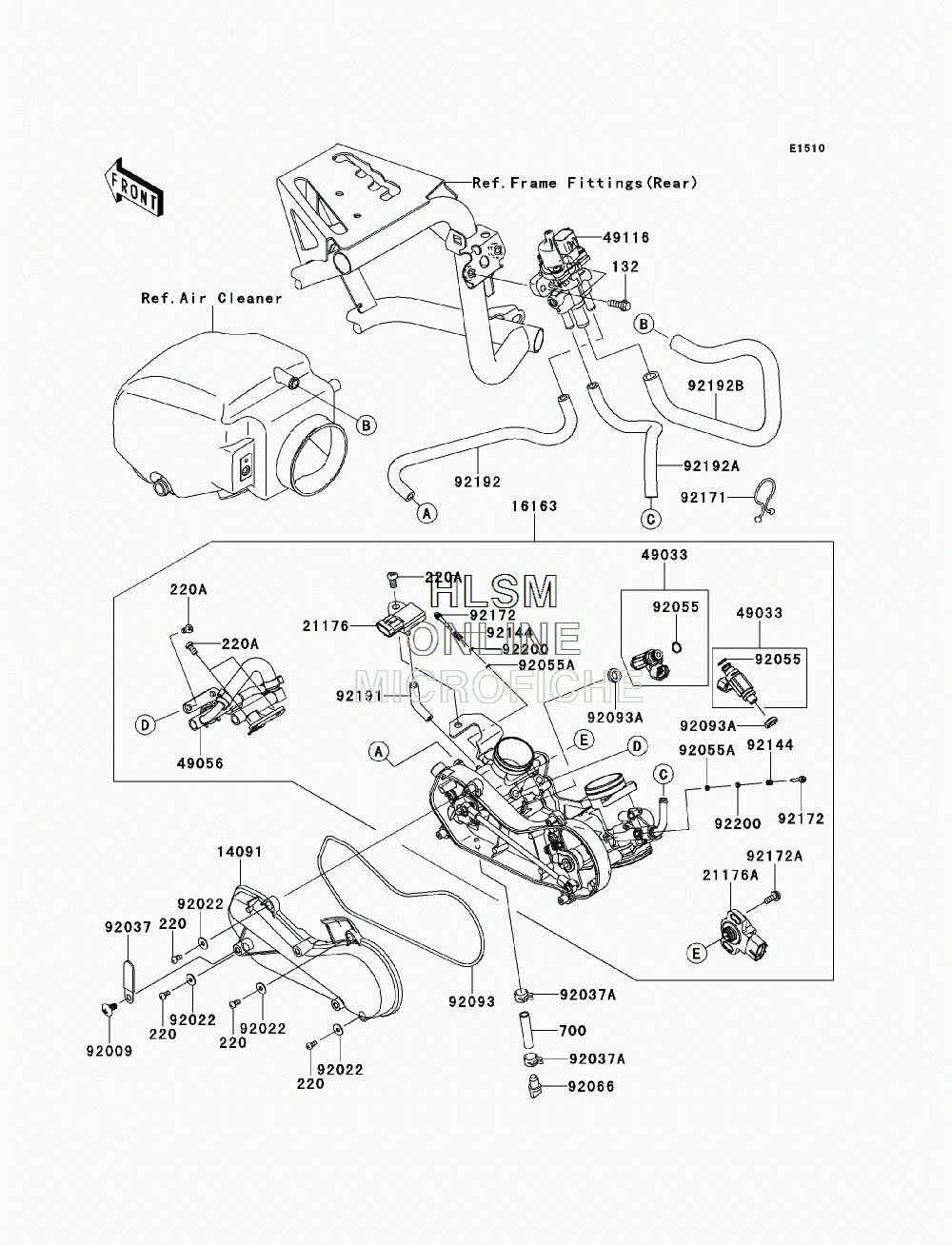

THROTTLE BODY для Kawasaki TERYX 750 FI 4X4 LE (SGE) (KRF750VCS) - 2012 года выпуска
-
№АртикулНазвание
-
132132BD0618 BOLT-FLANGED-SMALL,6X18BOLT-FLANGED-SMALL,6X18
-
220220AA0408 SCREW-PAN-CROS,4X8SCREW-PAN-CROS,4X8
-
220A220AA0612 SCREW-PAN-CROS,6X12SCREW-PAN-CROS,6X12
-
700700Q0740 TUBE-PVCTUBE-PVC
-
1409114091-1731 COVER,THROTTLE LINKCOVER,THROTTLE LINK
-
1616316163-0137 THROTTLE-ASSY,34EISTHROTTLE-ASSY,34EIS
-
2117621176-0058 SENSOR,PRESSURESENSOR,PRESSURE
-
21176A21176-0100 SENSOR,TPSSENSOR,TPS
-
4903349033-1060 NOZZLE-INJECTIONNOZZLE-INJECTION
-
4905649056-0028 PIPE-INJECTIONPIPE-INJECTION
-
4911649116-0026 VALVE-ASSY,ISCVALVE-ASSY,ISC
-
9200992009-1480 SCREW,6X12SCREW,6X12
-
9202292022-1380 WASHER,5.2X13X1WASHER,5.2X13X1
-
9203792037-1539 CLAMP,L=45CLAMP,L=45
-
92037A92037-2113 CLAMPCLAMP
-
9205592055-1622 RING-O,INJECTION NOZZLERING-O,INJECTION NOZZLE
-
92055A92055-1658 RING-O,AIR SCREWRING-O,AIR SCREW
-
9206692066-1211 PLUG,DRAINPLUG,DRAIN
-
9209392093-0082 SEALSEAL
-
92093A92093-0127 SEALSEAL
-
9214492144-1674 SPRING,THROTTLE STOP SCREWSPRING,THROTTLE STOP SCREW
-
9217192171-0876 CLAMPCLAMP
-
9217292172-0156 SCREWSCREW
-
92172A92172-0254 SCREWSCREW
-
9219192191-1552 TUBE,3.2X7.4X70TUBE,3.2X7.4X70
-
9219292192-0765 TUBE,ISC-FRONT THROBOTUBE,ISC-FRONT THROBO
-
92192A92192-0766 TUBE,ISC-REAR THROBOTUBE,ISC-REAR THROBO
-
92192B92192-0767 TUBE,ISC-DUCTTUBE,ISC-DUCT
-
9220092200-1564 WASHER,PILOT AIR SCREWWASHER,PILOT AIR SCREW
