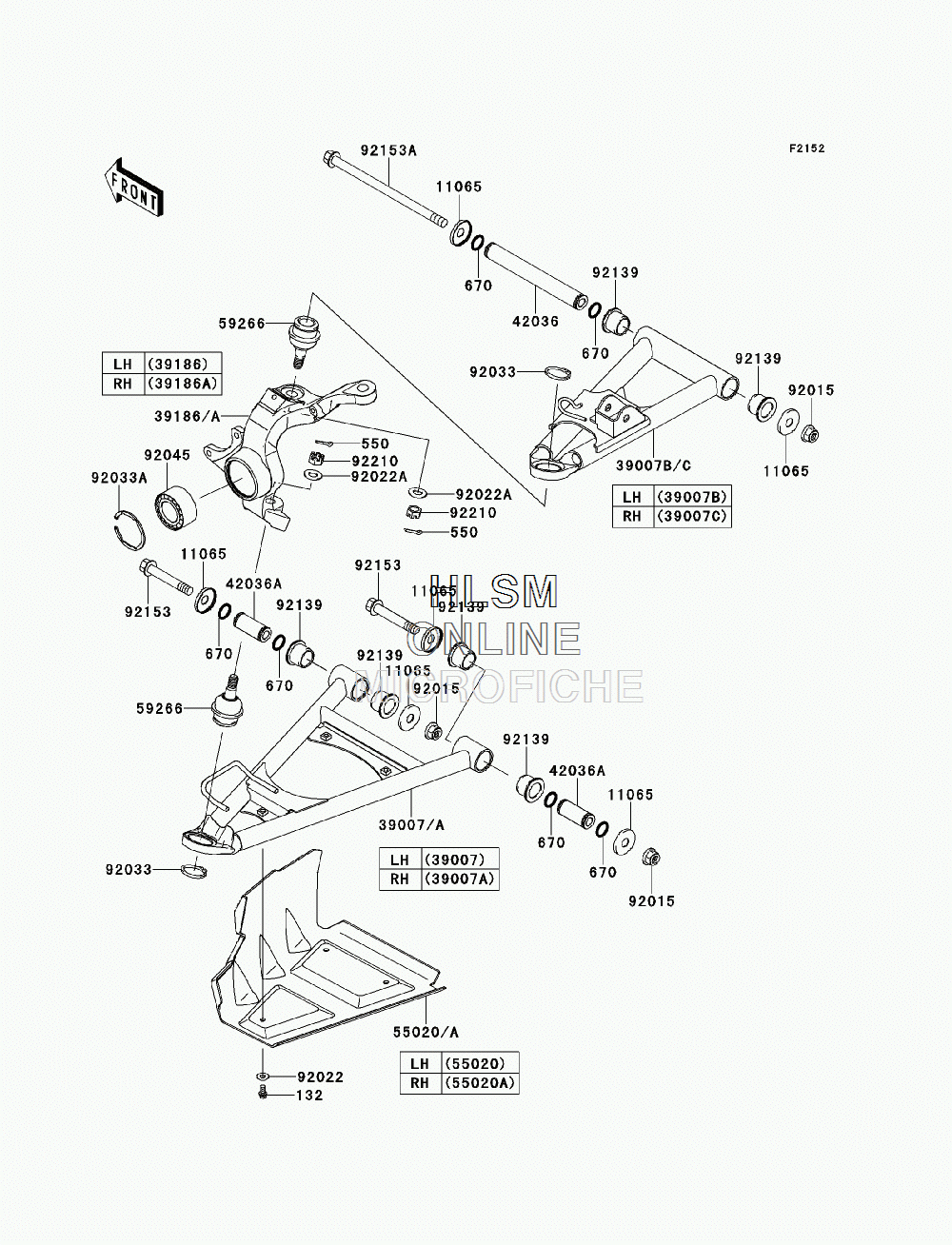

SUSPENSION - FRONT для Kawasaki TERYX 750 FI 4X4 SPORT (KRF750SCSA) - 2012 года выпуска
-
№АртикулНазвание
-
132132BB0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
550550AA3025 PIN-COTTER,3.0X25PIN-COTTER,3.0X25
-
670670B2018 O RING,18MMO RING,18MM
-
1106511065-0253 CAPCAP
-
3900739007-0161 ARM-SUSP, FRONT,LWR, LEFT HANDARM-SUSP, FRONT,LWR, LEFT HAND
-
39007A39007-0162 ARM-SUSP, FRONT,LWR, RIGHT HANDARM-SUSP, FRONT,LWR, RIGHT HAND
-
39007B39007-0163 ARM-SUSP, FRONT,UPP, LEFT HANDARM-SUSP, FRONT,UPP, LEFT HAND
-
39007C39007-0164 ARM-SUSP, FRONT,UPP, RIGHT HANDARM-SUSP, FRONT,UPP, RIGHT HAND
-
3918639186-0096 KNUCKLE, FRONT, LEFT HANDKNUCKLE, FRONT, LEFT HAND
-
39186A39186-0097 KNUCKLE, FRONT, RIGHT HANDKNUCKLE, FRONT, RIGHT HAND
-
4203642036-0061 SLEEVESLEEVE
-
42036A42036-0062 SLEEVESLEEVE
-
5502055020-0308 GUARD, FRONT, LEFT HANDGUARD, FRONT, LEFT HAND
-
55020A55020-0309 GUARD, FRONT, RIGHT HANDGUARD, FRONT, RIGHT HAND
-
5926659266-0014 JOINT-BALLJOINT-BALL
-
9201592015-1433 NUT,LOCK,FLANGED,12MMNUT,LOCK,FLANGED,12MM
-
9202292022-1344 WASHER,7X16X1.2WASHER,7X16X1.2
-
92022A92022-1831 WASHERWASHER
-
9203392033-1262 RING-SNAP,C-TYPE,32MMRING-SNAP,C-TYPE,32MM
-
92033A92033-1274 RING-SNAP,55MMRING-SNAP,55MM
-
9204592045-0123 BEARING-BALL,DAC3055W-3CS31BEARING-BALL,DAC3055W-3CS31
-
9213992139-0231 BUSHINGBUSHING
-
9215392153-1733 BOLT,FLANGED,12X76.5BOLT,FLANGED,12X76.5
-
92153A92153-1958 BOLT,FLANGED,12X213BOLT,FLANGED,12X213
-
9221092210-0395 NUT,CASTLE,12MMNUT,CASTLE,12MM
