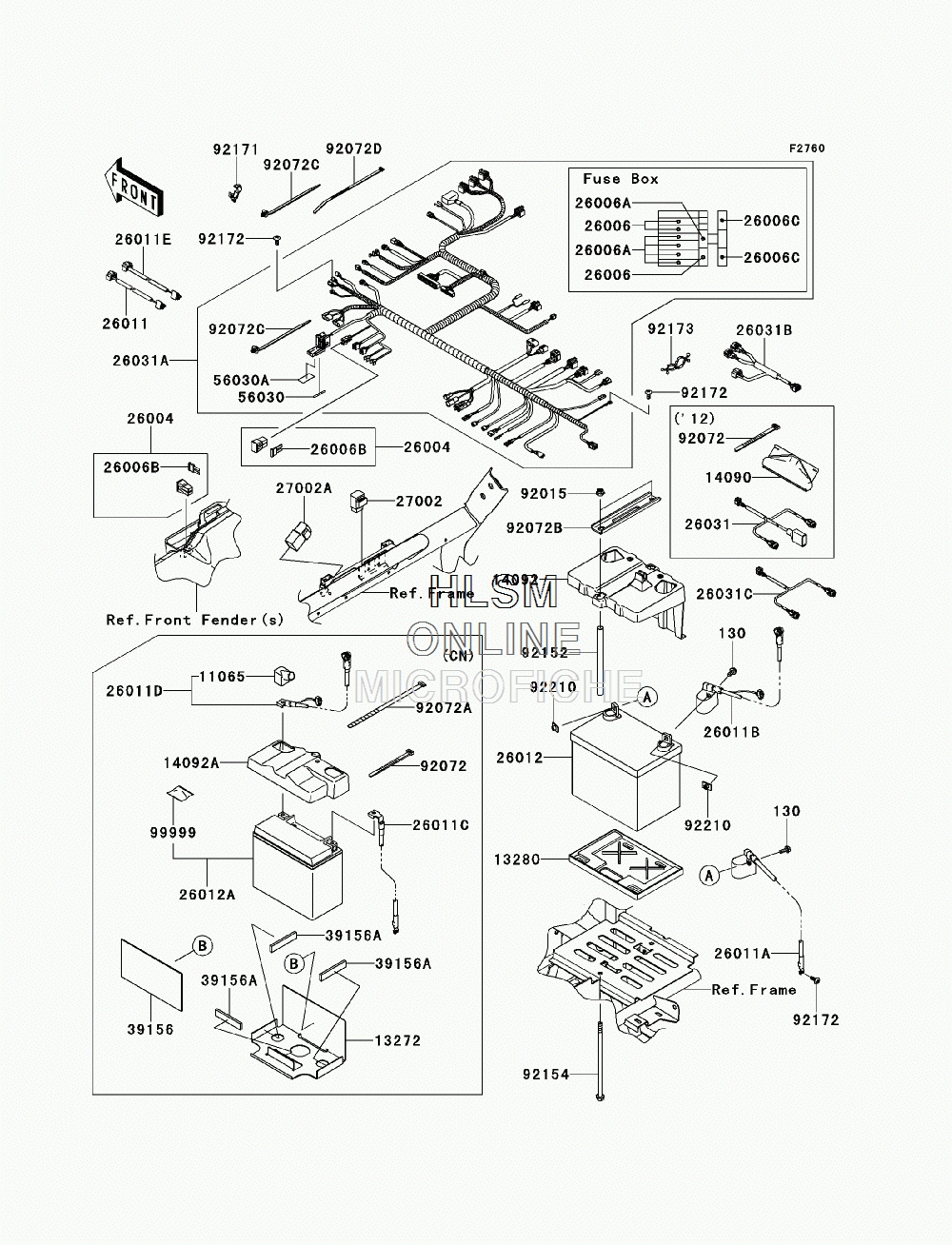

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki TERYX4 750 4X4 EPS (KRT750BCF) - 2012 года выпуска
-
№АртикулНазвание
-
1106511065-0755 CAP (CANADA ONLY)CAP (CANADA ONLY)
-
1327213272-1322 PLATE, BATTERY BOTTOM (CANADA ONLY)PLATE, BATTERY BOTTOM (CANADA ONLY)
-
1328013280-0709 HOLDER, BATTERYHOLDER, BATTERY
-
1409014090-1331 COVER, COUPLERCOVER, COUPLER
-
1409214092-0753 COVER, BATTERY (USA ONLY)COVER, BATTERY (USA ONLY)
-
14092A14092-0978 COVER, BATTERY (CANADA ONLY)COVER, BATTERY (CANADA ONLY)
-
2600426004-1093 FUSE-ASSY, 40AFUSE-ASSY, 40A
-
2600626006-0001 FUSE, MINI BLADE, 15A, (BLUE)FUSE, MINI BLADE, 15A, (BLUE)
-
26006A26006-0009 FUSE, MINI BLADE, 10A, (RED)FUSE, MINI BLADE, 10A, (RED)
-
26006B26006-0014 FUSE, SLOW BLOW, BT, 40A, (GREEN)FUSE, SLOW BLOW, BT, 40A, (GREEN)
-
26006C26006-1080 FUSE, MINI BLADE, 30A, (GREEN)FUSE, MINI BLADE, 30A, (GREEN)
-
2601126011-0276 WIRE-LEAD, HEAD LAMP, LEFT HANDWIRE-LEAD, HEAD LAMP, LEFT HAND
-
26011A26011-0713 WIRE-LEAD, BATTERY(-) (USA ONLY)WIRE-LEAD, BATTERY(-) (USA ONLY)
-
26011B26011-0714 WIRE-LEAD, BATTERY(+) (USA ONLY)WIRE-LEAD, BATTERY(+) (USA ONLY)
-
26011C26011-0725 WIRE-LEAD, BATTERY(-) (CANADA ONLY)WIRE-LEAD, BATTERY(-) (CANADA ONLY)
-
26011D26011-0726 WIRE-LEAD, BATTERY(+) (CANADA ONLY)WIRE-LEAD, BATTERY(+) (CANADA ONLY)
-
26011E26011-0759 WIRE-LEAD, HEAD LAMP, RIGHT HANDWIRE-LEAD, HEAD LAMP, RIGHT HAND
-
2601226012-0107 BATTERY, 12V 14AH (USA ONLY)BATTERY, 12V 14AH (USA ONLY)
-
26012A26012-3730 BATTERY, YTX20L-BS, 12V 18AH (CANADA ONLY)BATTERY, YTX20L-BS, 12V 18AH (CANADA ONLY)
-
2603126031-1149 HARNESS, SUB, TAIL LAMPHARNESS, SUB, TAIL LAMP
-
26031A26031-1179 HARNESS, MAINHARNESS, MAIN
-
26031B26031-1264 HARNESS, SUB, TPSHARNESS, SUB, TPS
-
2700227002-1062 RELAY-ASSYRELAY-ASSY
-
27002A27002-1086 RELAY-ASSYRELAY-ASSY
-
3915639156-0837 PAD, 175X94X3 (CANADA ONLY)PAD, 175X94X3 (CANADA ONLY)
-
39156A39156-0838 PAD, 15X72X5 (CANADA ONLY)PAD, 15X72X5 (CANADA ONLY)
-
5603056030-0404 LABEL, FUSE BOX, 30ALABEL, FUSE BOX, 30A
-
56030A56030-0703 LABEL, FUSE BOXLABEL, FUSE BOX
-
9201592015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
130130BA0616 BOLT-FLANGED, 6X16 (USA ONLY)BOLT-FLANGED, 6X16 (USA ONLY)
-
9207292072-030 BAND, L=123 (USA ONLY)BAND, L=123 (USA ONLY)
-
9207292072-030 BAND, L=123 (CANADA ONLY)BAND, L=123 (CANADA ONLY)
-
92072A92072-032 BAND, L=218 (CANADA ONLY)BAND, L=218 (CANADA ONLY)
-
92072B92072-0707 BANDBAND
-
92072C92072-1414 BANDBAND
-
92072D92072-3509 BAND, L=292.1BAND, L=292.1
-
9215292152-1555 COLLAR, 10.2X12.7X165.8COLLAR, 10.2X12.7X165.8
-
9215492154-0889 BOLT, FLANGED, 8X185BOLT, FLANGED, 8X185
-
9217192171-1415 CLAMP, DIA=13CLAMP, DIA=13
-
9217292172-0739 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9217392173-0962 CLAMP, PURSE LOCKCLAMP, PURSE LOCK
-
9221092210-1352 NUT, PLATE, 6MM (USA ONLY)NUT, PLATE, 6MM (USA ONLY)
-
9999999999-0311 BOLT NUT KIT (CANADA ONLY)BOLT NUT KIT (CANADA ONLY)
