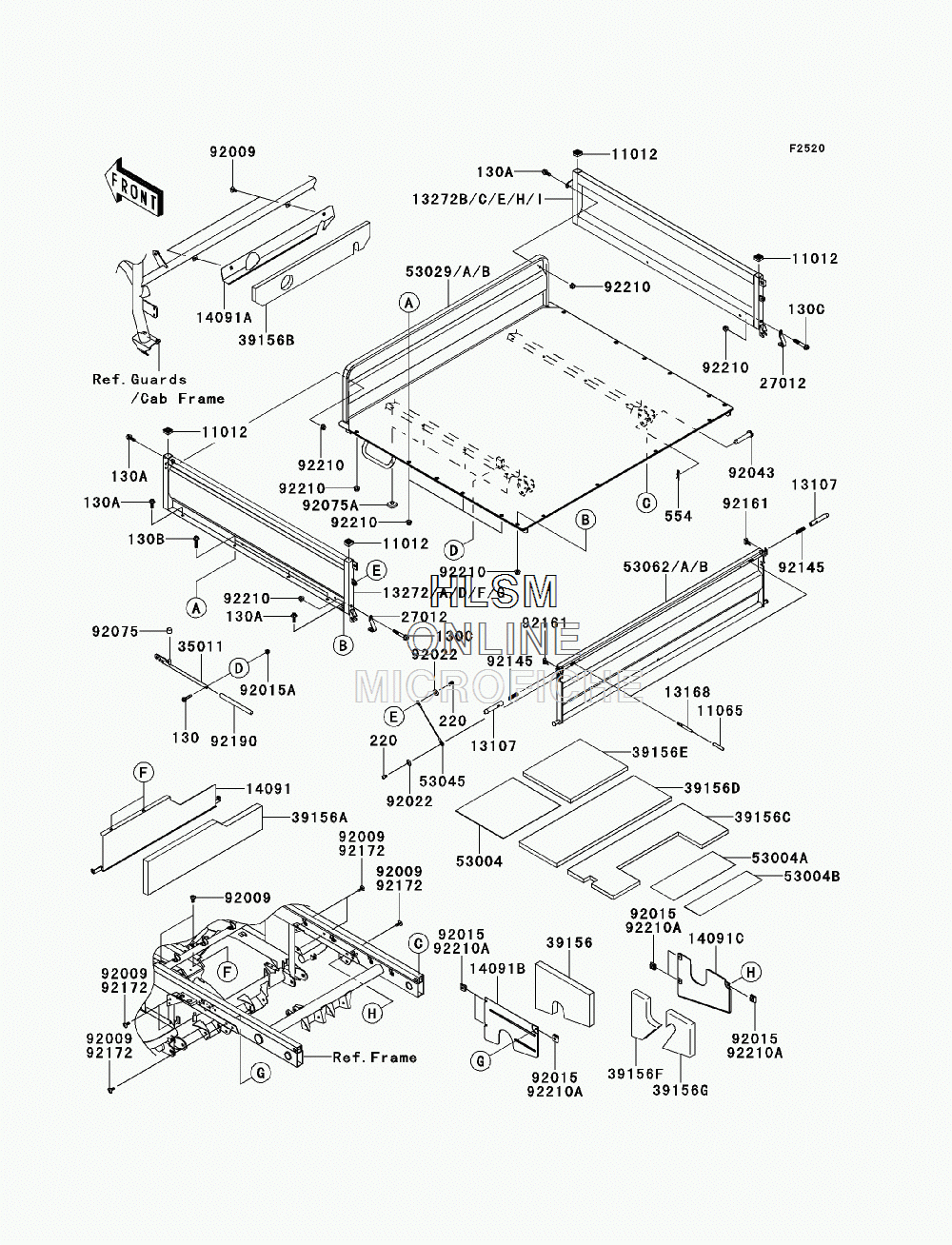

CARRIER(S) для Kawasaki MULE 4010 DIESEL 4X4 (KAF950FDF) - 2013 года выпуска
-
№АртикулНазвание
-
130130BA0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
130A130BB0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130B130BB0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
130C130BB0850 BOLT-FLANGED, 8X50BOLT-FLANGED, 8X50
-
220220AB0610 SCREW-PAN-CROSS, 6X10SCREW-PAN-CROSS, 6X10
-
554554DA1200 PIN-SNAP, 12MMPIN-SNAP, 12MM
-
1101211012-1784 CAPCAP
-
1106511065-0126 CAPCAP
-
1310713107-0082 SHAFTSHAFT
-
1316813168-0090 LEVERLEVER
-
13272F13272-1231-16M PLATE, SIDE, LEFT HAND, (D.R.RED) (FOR 16M)PLATE, SIDE, LEFT HAND, (D.R.RED) (FOR 16M)
-
13272G13272-1231-42F PLATE, SIDE, LEFT HAND, (S.GREEN) (FOR 42F)PLATE, SIDE, LEFT HAND, (S.GREEN) (FOR 42F)
-
13272H13272-1232-16M PLATE, SIDE, RIGHT HAND, (D.R.RED) (FOR 16M)PLATE, SIDE, RIGHT HAND, (D.R.RED) (FOR 16M)
-
13272I13272-1232-42F PLATE, SIDE, RIGHT HAND, (S.GREEN) (FOR 42F)PLATE, SIDE, RIGHT HAND, (S.GREEN) (FOR 42F)
-
1409114091-1151 COVER, SEAT UNDERCOVER, SEAT UNDER
-
14091A14091-1152 COVER, SEAT REARCOVER, SEAT REAR
-
14091B14091-7546 COVER, ENCLOSURE, LEFT HANDCOVER, ENCLOSURE, LEFT HAND
-
14091C14091-7562 COVER, ENCLOSURE, RIGHT HANDCOVER, ENCLOSURE, RIGHT HAND
-
2701227012-0022 HOOK, TAIL GATEHOOK, TAIL GATE
-
3501135011-1648 STAY, CARRIER STOPPERSTAY, CARRIER STOPPER
-
3915639156-0007 PAD, ENCLOSURE COVER, LEFT HANDPAD, ENCLOSURE COVER, LEFT HAND
-
39156A39156-0009 PAD, SEAT UNDERPAD, SEAT UNDER
-
39156B39156-0011 PAD, SEAT REARPAD, SEAT REAR
-
39156C39156-0013 PAD, CARRIER, REARPAD, CARRIER, REAR
-
39156D39156-0465 PAD, CARRIER, MIDDLEPAD, CARRIER, MIDDLE
-
39156E39156-0468 PAD, CARRIER, FRONTPAD, CARRIER, FRONT
-
39156F39156-7507 PAD, ENCLOSURE COVER, RIGHT HANDPAD, ENCLOSURE COVER, RIGHT HAND
-
39156G39156-7508 PAD, ENCLOSURE COVER, RIGHT HANDPAD, ENCLOSURE COVER, RIGHT HAND
-
5300453004-0035 MAT, CARRIER, FRONTMAT, CARRIER, FRONT
-
53004A53004-0036 MAT, CARRIER, MIDDLEMAT, CARRIER, MIDDLE
-
53004B53004-0037 MAT, CARRIER, REARMAT, CARRIER, REAR
-
53029A53029-0063-388 CARRIER, BASE PLATE, (T.BLACK)CARRIER, BASE PLATE, (T.BLACK)
-
5304553045-0004 HOOK-ASSY, TAIL GATEHOOK-ASSY, TAIL GATE
-
5306253062-0001-16M GATE-TAIL, (D.R.RED) (FOR 16M)GATE-TAIL, (D.R.RED) (FOR 16M)
-
53062B53062-0001-42F GATE-TAIL, (S.GREEN) (FOR 42F)GATE-TAIL, (S.GREEN) (FOR 42F)
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
92015A92015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1545 WASHER, 7X18X1.2WASHER, 7X18X1.2
-
9204392043-1428 PIN, 12X65PIN, 12X65
-
9207592075-1817 DAMPERDAMPER
-
92075A92075-1882 DAMPERDAMPER
-
9214592145-1215 SPRING, TENSIONERSPRING, TENSIONER
-
9216192161-0258 DAMPERDAMPER
-
9217292172-0488 SCREW, TAPPING, 6X20SCREW, TAPPING, 6X20
-
9219092190-1401 TUBE, 13X16X200TUBE, 13X16X200
-
9221092210-0555 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92210A92210-0624 NUT, LEAF SPRING, 6MMNUT, LEAF SPRING, 6MM
