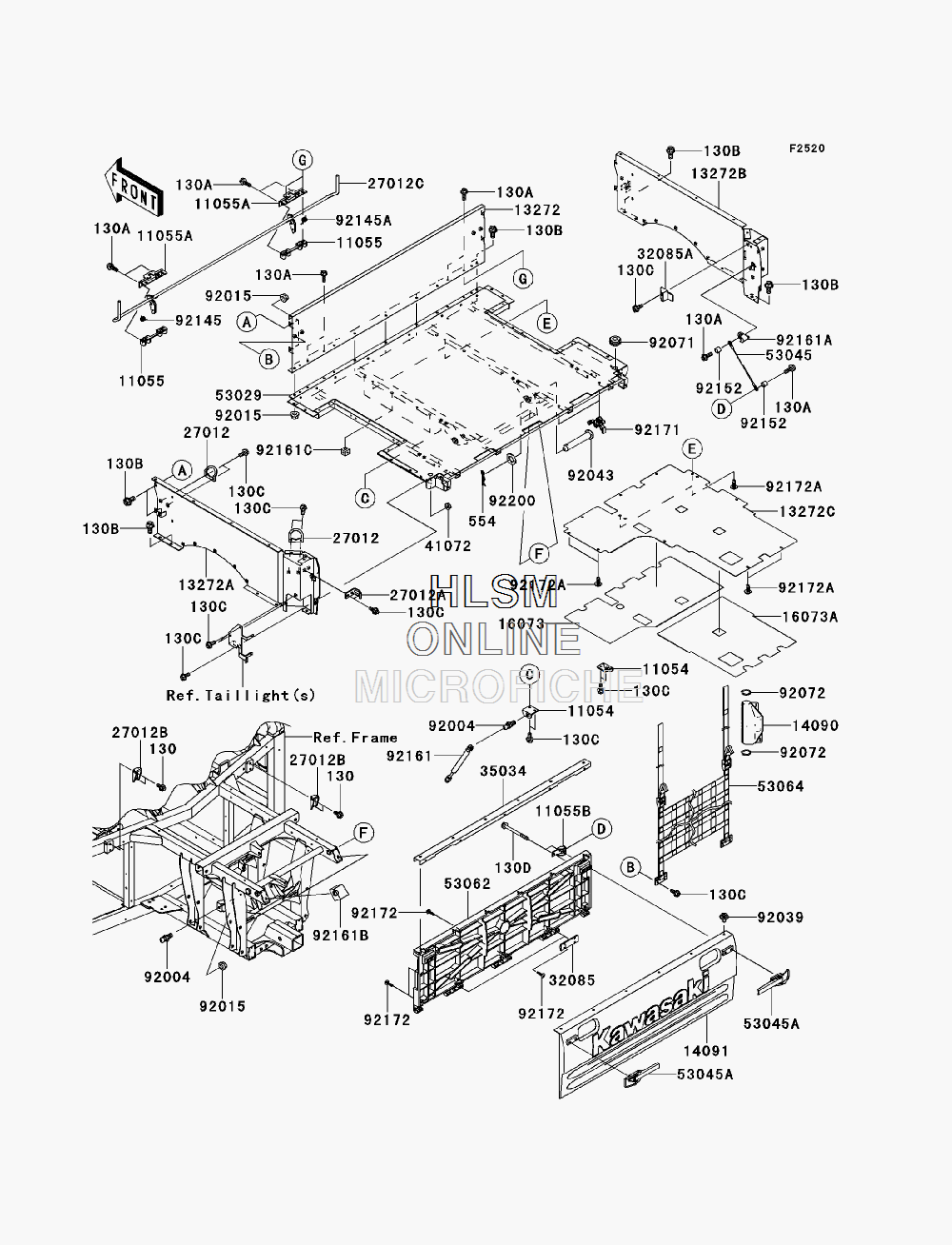

CARRIER(S) для Kawasaki TERYX 750 FI 4X4 (KRF750NDF) - 2013 года выпуска
-
№АртикулНазвание
-
1105411054-1159 BRACKETBRACKET
-
1105511055-0795 BRACKETBRACKET
-
11055A11055-0797 BRACKETBRACKET
-
11055B11055-0798 BRACKET, TAIL GATEBRACKET, TAIL GATE
-
1327213272-0464 PLATE, CAREARIER, FRONTPLATE, CAREARIER, FRONT
-
13272A13272-0692 PLATE, CAREARIER, LEFT HANDPLATE, CAREARIER, LEFT HAND
-
13272B13272-0694 PLATE, CAREARIER, RIGHT HANDPLATE, CAREARIER, RIGHT HAND
-
13272C13272-0719 PLATE, HEAT GUARDPLATE, HEAT GUARD
-
1409014090-1611 COVER, COUPLERCOVER, COUPLER
-
1409114091-1593-839 COVER, TAIL GATE, (BLACK) (FOR 839)COVER, TAIL GATE, (BLACK) (FOR 839)
-
1607316073-0759 INSULATOR, CAREARIER, FRONTINSULATOR, CAREARIER, FRONT
-
16073A16073-0760 INSULATOR, CAREARIER, REARINSULATOR, CAREARIER, REAR
-
2701227012-0113 HOOKHOOK
-
27012A27012-0133 HOOKHOOK
-
27012B27012-0145 HOOK, CAREARIER DUMP LOCKHOOK, CAREARIER DUMP LOCK
-
27012C27012-0167 HOOK, CAREARIER DUMP LOCKHOOK, CAREARIER DUMP LOCK
-
3208532085-0103 STOPPERSTOPPER
-
32085A32085-0145 STOPPERSTOPPER
-
3503435034-0102 REINFORCEREINFORCE
-
4107241072-007 NUT, 6MMNUT, 6MM
-
5302953029-0312 CAREARIER, BASECAREARIER, BASE
-
5304553045-0004 HOOK-ASSY, TAIL GATEHOOK-ASSY, TAIL GATE
-
53045A53045-1063 HOOK-ASSYHOOK-ASSY
-
5306253062-0014 GATE-TAILGATE-TAIL
-
5306453064-0055 NET-CARGONET-CARGO
-
9200492004-0034 STUD, 8X13.5STUD, 8X13.5
-
9201592015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9203992039-1256 RIVETRIVET
-
9204392043-0716 PIN, 12.4X72.4PIN, 12.4X72.4
-
9207192071-1010 GROMMETGROMMET
-
9207292072-030 BAND, L=123BAND, L=123
-
9214592145-0653 SPRING, LEFT HANDSPRING, LEFT HAND
-
92145A92145-0654 SPRING, RIGHT HANDSPRING, RIGHT HAND
-
9215292152-0621 COLLAR, 6.3X9.5X8COLLAR, 6.3X9.5X8
-
9216192161-0451 DAMPER, GAS SPRINGSDAMPER, GAS SPRINGS
-
92161A92161-0550 DAMPERDAMPER
-
92161B92161-0698 DAMPERDAMPER
-
92161C92161-0774 DAMPERDAMPER
-
9217192171-0453 CLAMPCLAMP
-
9217292172-0347 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
-
130130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130BA0618 BOLT-FLANGED, 6X18BOLT-FLANGED, 6X18
-
130B130BA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
130C130BB0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130D130BB0665 BOLT-FLANGED, 6X65BOLT-FLANGED, 6X65
-
554554DA1200 PIN-SNAP, 12MMPIN-SNAP, 12MM
-
92172A92172-0739 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9220092200-0451 WASHER, 13X24X2WASHER, 13X24X2
