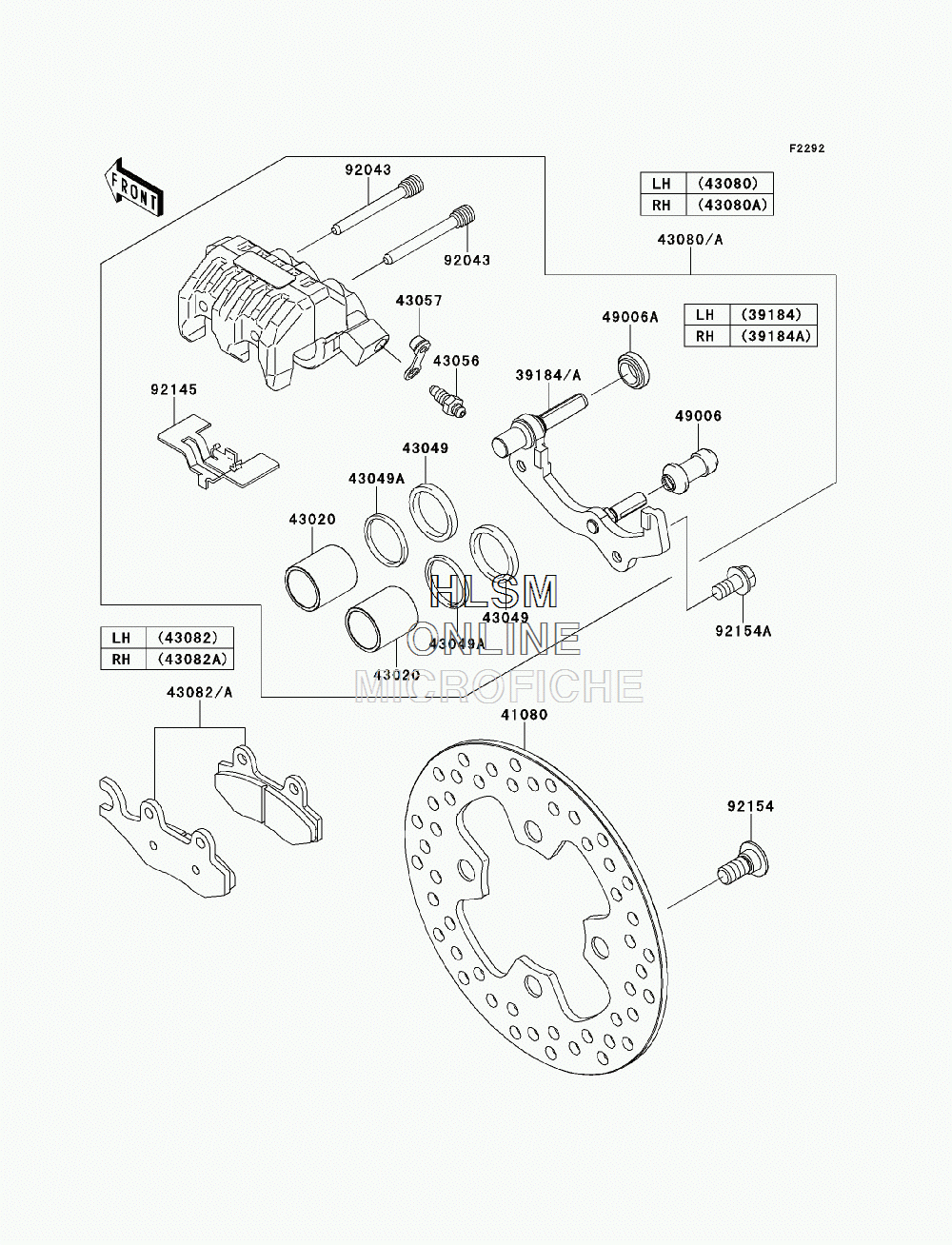

BRAKE - FRONT для Kawasaki TERYX4 750 4X4 EPS (KRT750BDF) - 2013 года выпуска
-
№АртикулНазвание
-
3918439184-0024 BRACKET-ASSY, LEFT HANDBRACKET-ASSY, LEFT HAND
-
39184A39184-0025 BRACKET-ASSY, RIGHT HANDBRACKET-ASSY, RIGHT HAND
-
4108041080-0558 DISC, FRONT, 200MMDISC, FRONT, 200MM
-
4302043020-0054 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4304943049-0556 PACKINGPACKING
-
43049A43049-0557 PACKINGPACKING
-
4305643056-0055 BREATHER-BRAKEBREATHER-BRAKE
-
4305743057-0552 CAP-BREATHERCAP-BREATHER
-
4308043080-0128 CALIPER-SUB-ASSY, LEFT HANDCALIPER-SUB-ASSY, LEFT HAND
-
43080A43080-0129 CALIPER-SUB-ASSY, RIGHT HANDCALIPER-SUB-ASSY, RIGHT HAND
-
4308243082-0126 PAD-ASSY-BRAKE, LEFT HANDPAD-ASSY-BRAKE, LEFT HAND
-
43082A43082-0127 PAD-ASSY-BRAKE, RIGHT HANDPAD-ASSY-BRAKE, RIGHT HAND
-
4900649006-0565 BOOTBOOT
-
49006A49006-0566 BOOTBOOT
-
9204392043-0184 PINPIN
-
9214592145-0705 SPRINGSPRING
-
9215492154-0713 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
92154A92154-1005 BOLT, FLANGED, 8X16BOLT, FLANGED, 8X16
