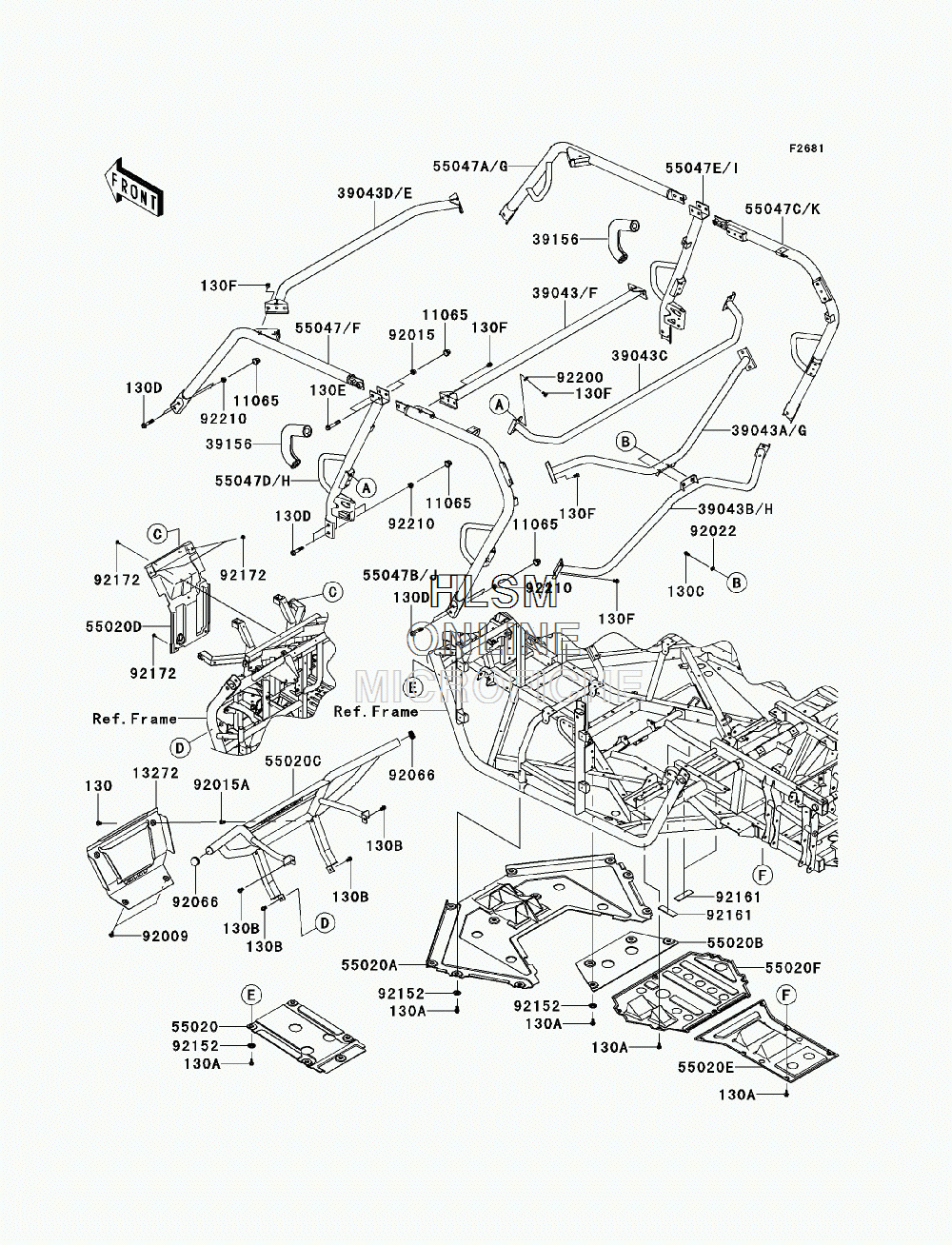

GUARD(S) / CAB FRAME для Kawasaki TERYX4 750 4X4 EPS REALTREE AGP HD (KRT750DDF) - 2013 года выпуска
-
№АртикулНазвание
-
1106511065-0751 CAPCAP
-
1327213272-0994-388 PLATE, (T.BLACK)PLATE, (T.BLACK)
-
39043C39043-0325-388 CROSSMEMBER-COMP, CNT, LWR, (T.BLACK)CROSSMEMBER-COMP, CNT, LWR, (T.BLACK)
-
39043E39043-0328-388 CROSSMEMBER-COMP, FRONT, UPP, (T.BLACK)CROSSMEMBER-COMP, FRONT, UPP, (T.BLACK)
-
39043F39043-0329-388 CROSSMEMBER-COMP, CNT, UPP, (T.BLACK)CROSSMEMBER-COMP, CNT, UPP, (T.BLACK)
-
39043G39043-0330-388 CROSSMEMBER-COMP, REAR, UPP, (T.BLACK)CROSSMEMBER-COMP, REAR, UPP, (T.BLACK)
-
39043H39043-0331-388 CROSSMEMBER-COMP, REAR, LWR, (T.BLACK)CROSSMEMBER-COMP, REAR, LWR, (T.BLACK)
-
3915639156-0764 PADPAD
-
5502055020-0723 GUARD, SKID, FRONTGUARD, SKID, FRONT
-
55020A55020-0724 GUARD, SKID, FRONT MIDDLEGUARD, SKID, FRONT MIDDLE
-
55020B55020-0726 GUARD, SKID, CNT, FRONTGUARD, SKID, CNT, FRONT
-
55020C55020-0727-388 GUARD, FRONT, (T.BLACK)GUARD, FRONT, (T.BLACK)
-
55020D55020-0741 GUARD, FRONT FRAMEGUARD, FRONT FRAME
-
55020E55020-0812 GUARD, SKID, REARGUARD, SKID, REAR
-
55020F55020-0815 GUARD, SKID, CNTGUARD, SKID, CNT
-
55047F55047-0334-388 BAR-COMP, A-PILLAR, LEFT HAND, (T.BLACK)BAR-COMP, A-PILLAR, LEFT HAND, (T.BLACK)
-
55047G55047-0335-388 BAR-COMP, A-PILLAR, RIGHT HAND, (T.BLACK)BAR-COMP, A-PILLAR, RIGHT HAND, (T.BLACK)
-
55047H55047-0336-388 BAR-COMP, B-PILLAR, LEFT HAND, (T.BLACK)BAR-COMP, B-PILLAR, LEFT HAND, (T.BLACK)
-
55047I55047-0337-388 BAR-COMP, B-PILLAR, RIGHT HAND, (T.BLACK)BAR-COMP, B-PILLAR, RIGHT HAND, (T.BLACK)
-
55047J55047-0338-388 BAR-COMP, C-PILLAR, LEFT HAND, (T.BLACK)BAR-COMP, C-PILLAR, LEFT HAND, (T.BLACK)
-
55047K55047-0339-388 BAR-COMP, C-PILLAR, RIGHT HAND, (T.BLACK)BAR-COMP, C-PILLAR, RIGHT HAND, (T.BLACK)
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9201592015-1433 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
-
92015A92015-1791 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
-
9202292022-1317 WASHER, 8.5X20X1.6, (BLACK)WASHER, 8.5X20X1.6, (BLACK)
-
9206692066-7503 PLUGPLUG
-
9215292152-0784 COLLARCOLLAR
-
9216192161-1457 DAMPER, 30X100X3.2DAMPER, 30X100X3.2
-
9217292172-0711 SCREW, 6X16SCREW, 6X16
-
9220092200-7506 WASHER, 10.2X23X2.5WASHER, 10.2X23X2.5
-
130130AB0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130A130BA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130B130BA1016 BOLT-FLANGED, 10X16BOLT-FLANGED, 10X16
-
130C130BB0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
130D130BB1260 BOLT-FLANGED, 12X60BOLT-FLANGED, 12X60
-
130E130BB1275 BOLT-FLANGED, 12X75BOLT-FLANGED, 12X75
-
130F130CB1014 BOLT-FLANGED, 10X14BOLT-FLANGED, 10X14
-
9221092210-0603 NUT, 12MMNUT, 12MM
