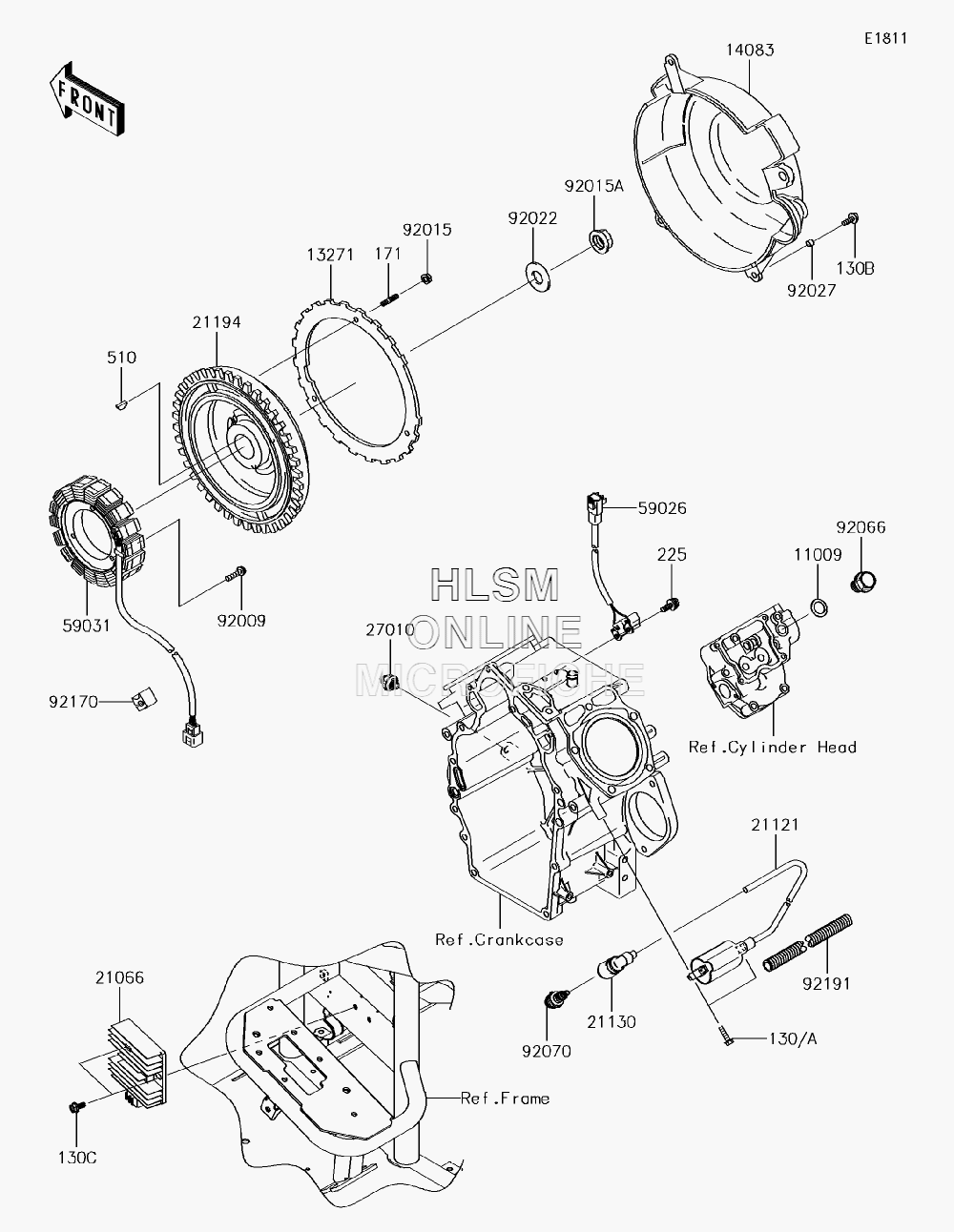

GENERATOR W/ IGNITION SYSTEM для Kawasaki MULE 4000 (KAF620PEF) - 2014 года выпуска
-
№АртикулНазвание
-
1100911009-2566 GASKET, 16X24X1GASKET, 16X24X1
-
130130AA0520 BOLT-FLANGED, 5X20BOLT-FLANGED, 5X20
-
130B130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130C130BB0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
1327113271-2269 PLATEPLATE
-
1408314083-2052 COVER-FLYWHEELCOVER-FLYWHEEL
-
171171BA0618 BOLT-STUD, 6X18BOLT-STUD, 6X18
-
2106621066-0717 REGULATOR-VOLTAGEREGULATOR-VOLTAGE
-
2112121121-2092 COIL-IGNITIONCOIL-IGNITION
-
2113021130-2060 CAP-SPARK PLUGCAP-SPARK PLUG
-
2119421194-2352 FLYWHEEL-COMPFLYWHEEL-COMP
-
225225AA0414 SCREW-PAN-WSP-CROS, 4X14SCREW-PAN-WSP-CROS, 4X14
-
2701027010-1313 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
510510A5100 KEY-WOODRUFFKEY-WOODRUFF
-
5902659026-2065 COIL-PULSINGCOIL-PULSING
-
5903159031-2136 COIL-CHARGINGCOIL-CHARGING
-
9200992009-2273 SCREW, 6X25SCREW, 6X25
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-2167 NUTNUT
-
9202292022-2229 WASHERWASHER
-
9202792027-2096 COLLAR, 6.2X7.8X5COLLAR, 6.2X7.8X5
-
9206692066-2099 PLUG, DRAINPLUG, DRAIN
-
9207092070-2110 PLUG-SPARK, BPR2ES(NGK), SOLIDPLUG-SPARK, BPR2ES(NGK), SOLID
-
9217092170-2056 CLAMPCLAMP
-
9219192191-2124 TUBETUBE
