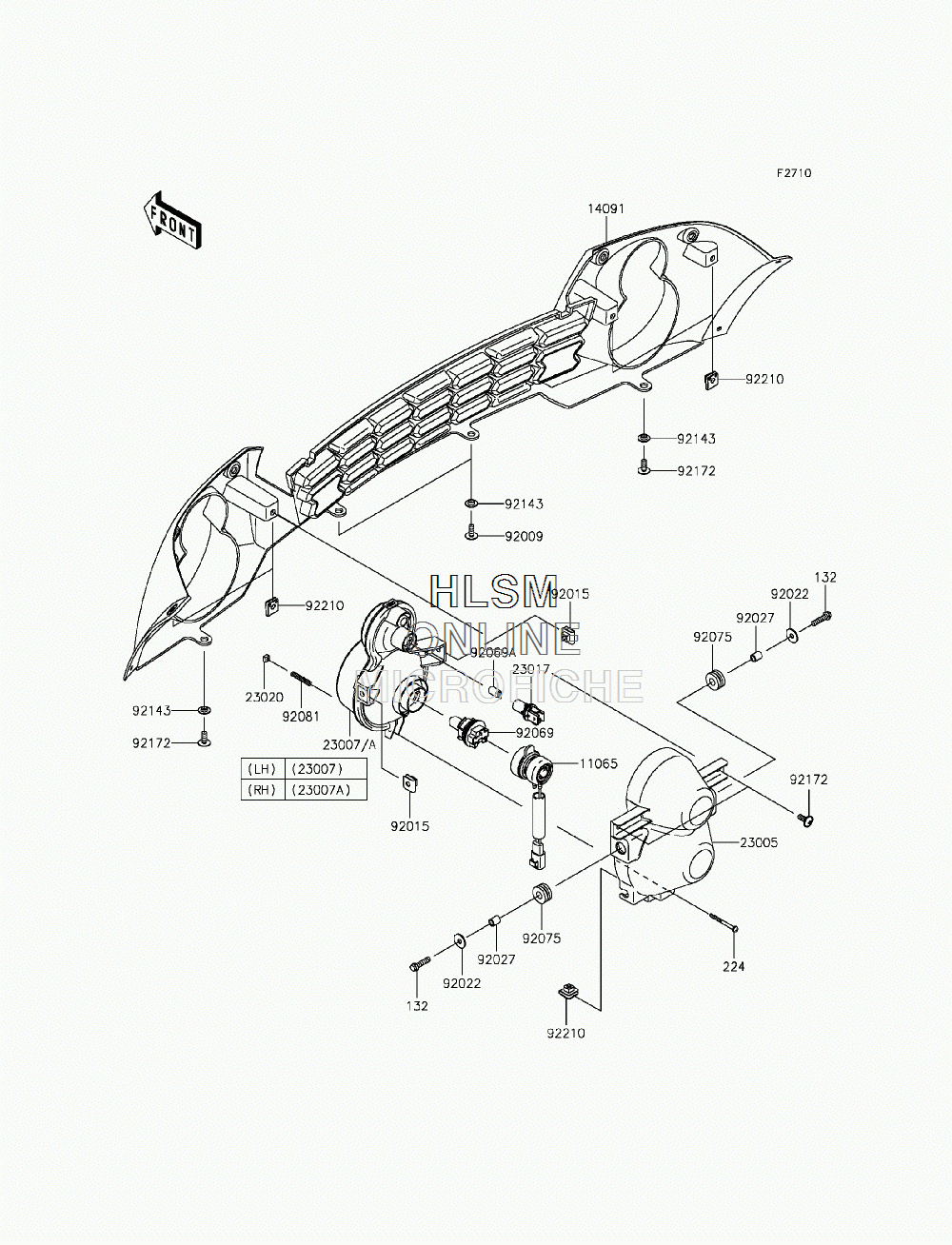

HEADLIGHT(S) для Kawasaki MULE 610 4X4 XC SE (KAF400FEF) - 2014 года выпуска
-
№АртикулНазвание
-
132132BA0625 BOLT-FLANGED-SMALL,6X25BOLT-FLANGED-SMALL,6X25
-
224224AA0445 SCREW-PAN-WP-CROS,4X45SCREW-PAN-WP-CROS,4X45
-
1106511065-0104 CAP,HEAD LAMPCAP,HEAD LAMP
-
1409114091-0342-6Z COVER, FRONT GRILLE,(F.BLACK)COVER, FRONT GRILLE,(F.BLACK)
-
2300523005-0005 BODY-COMP-HEAD LAMPBODY-COMP-HEAD LAMP
-
2300723007-0047 LENS-COMP,HEAD LAMP, LEFT HANDLENS-COMP,HEAD LAMP, LEFT HAND
-
23007A23007-0048 LENS-COMP,HEAD LAMP, RIGHT HANDLENS-COMP,HEAD LAMP, RIGHT HAND
-
2301723017-0002 SOCKET,HEAD LAMPSOCKET,HEAD LAMP
-
2302023020-018 NUT,4MM,FOCUS ADJUSTNUT,4MM,FOCUS ADJUST
-
9200992009-1621 SCREW,6X16SCREW,6X16
-
9201592015-1094 NUT,6MMNUT,6MM
-
9202292022-125 WASHER,6.5X20X1.6WASHER,6.5X20X1.6
-
9202792027-162 COLLAR,6.8X10X12COLLAR,6.8X10X12
-
9206992069-0012 BULB,12V 30/30WBULB,12V 30/30W
-
92069A92069-1016 BULB,12V 5WBULB,12V 5W
-
9207592075-1690 DAMPER,10X24X12DAMPER,10X24X12
-
9208192081-1896 SPRING,FOCUS ADJUSTSPRING,FOCUS ADJUST
-
9214392143-1087 COLLARCOLLAR
-
9217292172-0488 SCREW,TAPPING,6X20SCREW,TAPPING,6X20
-
9221092210-0624 NUT, LEAF SPRING,6MMNUT, LEAF SPRING,6MM
