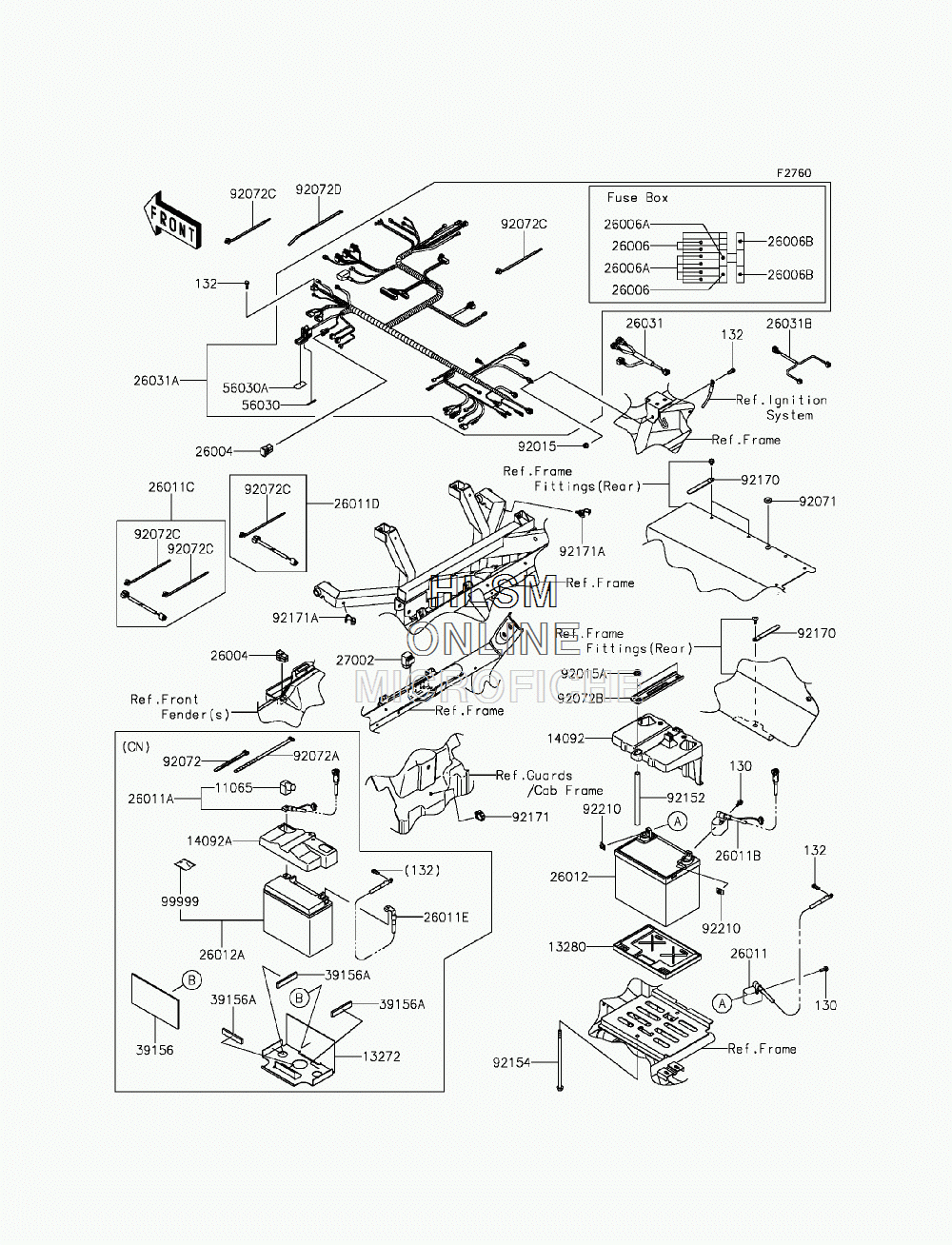

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki TERYX CAMO (KRF800DFF) - 2015 года выпуска
-
№АртикулНазвание
-
1106511065-0755 CAP (CANADA ONLY)CAP (CANADA ONLY)
-
1327213272-1322 PLATE,BATTERY BOTTOM (CANADA ONLY)PLATE,BATTERY BOTTOM (CANADA ONLY)
-
1328013280-0709 HOLDER,BATTERYHOLDER,BATTERY
-
1409214092-0753 COVER,BATTERY (USA ONLY)COVER,BATTERY (USA ONLY)
-
14092A14092-0978 COVER,BATTERY (CANADA ONLY)COVER,BATTERY (CANADA ONLY)
-
2600426004-1093 FUSE-ASSY,40AFUSE-ASSY,40A
-
2600626006-0001 FUSE,MINI BLADE,15A,(BLUE)FUSE,MINI BLADE,15A,(BLUE)
-
26006A26006-0009 FUSE,MINI BLADE,10A, (RED)FUSE,MINI BLADE,10A, (RED)
-
26006B26006-1080 FUSE,MINI BLADE,30A,(GREEN)FUSE,MINI BLADE,30A,(GREEN)
-
2601126011-0713 WIRE-LEAD,BATTERY(-) (USA ONLY)WIRE-LEAD,BATTERY(-) (USA ONLY)
-
26011A26011-0726 WIRE-LEAD,BATTERY(+) (CANADA ONLY)WIRE-LEAD,BATTERY(+) (CANADA ONLY)
-
26011B26011-0802 WIRE-LEAD,BATTERY(+) (USA ONLY)WIRE-LEAD,BATTERY(+) (USA ONLY)
-
26011C26011-0842 WIRE-LEAD,HEAD LAMP, LEFT HANDWIRE-LEAD,HEAD LAMP, LEFT HAND
-
26011D26011-0843 WIRE-LEAD,HEAD LAMP, RIGHT HANDWIRE-LEAD,HEAD LAMP, RIGHT HAND
-
26011E26011-0847 WIRE-LEAD,BATTERY(-) (CANADA ONLY)WIRE-LEAD,BATTERY(-) (CANADA ONLY)
-
2601226012-0107 BATTERY,12V 14AH (USA ONLY)BATTERY,12V 14AH (USA ONLY)
-
26012A26012-3730 BATTERY,YTX20L-BS,12V 18AH (CANADA ONLY)BATTERY,YTX20L-BS,12V 18AH (CANADA ONLY)
-
2603126031-1264 HARNESS,SUB,TPSHARNESS,SUB,TPS
-
26031A26031-1441 HARNESS,MAINHARNESS,MAIN
-
26031B26031-1563 HARNESS,SUB,TAILHARNESS,SUB,TAIL
-
2700227002-1062 RELAY-ASSYRELAY-ASSY
-
3915639156-0837 PAD,175X94X3 (CANADA ONLY)PAD,175X94X3 (CANADA ONLY)
-
39156A39156-0838 PAD,15X72X5 (CANADA ONLY)PAD,15X72X5 (CANADA ONLY)
-
5603056030-0404 LABEL,FUSE BOX,30ALABEL,FUSE BOX,30A
-
56030A56030-0703 LABEL,FUSE BOXLABEL,FUSE BOX
-
9201592015-1339 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
92015A92015-1406 NUT,FLANGED,8MMNUT,FLANGED,8MM
-
9207192071-0733 GROMMET,10X20X6GROMMET,10X20X6
-
9207292072-030 BAND,L=123 (CANADA ONLY)BAND,L=123 (CANADA ONLY)
-
130130BA0616 BOLT-FLANGED,6X16 (USA ONLY)BOLT-FLANGED,6X16 (USA ONLY)
-
132132BA0616 BOLT-FLANGED-SMALL,6X16BOLT-FLANGED-SMALL,6X16
-
92072A92072-032 BAND,L=218 (CANADA ONLY)BAND,L=218 (CANADA ONLY)
-
92072B92072-0707 BANDBAND
-
92072C92072-1414 BANDBAND
-
92072D92072-3509 BAND,L=292.1BAND,L=292.1
-
9215292152-1555 COLLAR,10.2X12.7X165.8COLLAR,10.2X12.7X165.8
-
9215492154-0889 BOLT,FLANGED,8X185BOLT,FLANGED,8X185
-
9217092170-1925 CLAMPCLAMP
-
9217192171-0316 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
-
92171A92171-1415 CLAMP,DIA=13CLAMP,DIA=13
-
9221092210-1352 NUT,PLATE,6MM (USA ONLY)NUT,PLATE,6MM (USA ONLY)
-
9999999999-0311 BOLT NUT KIT (CANADA ONLY)BOLT NUT KIT (CANADA ONLY)
