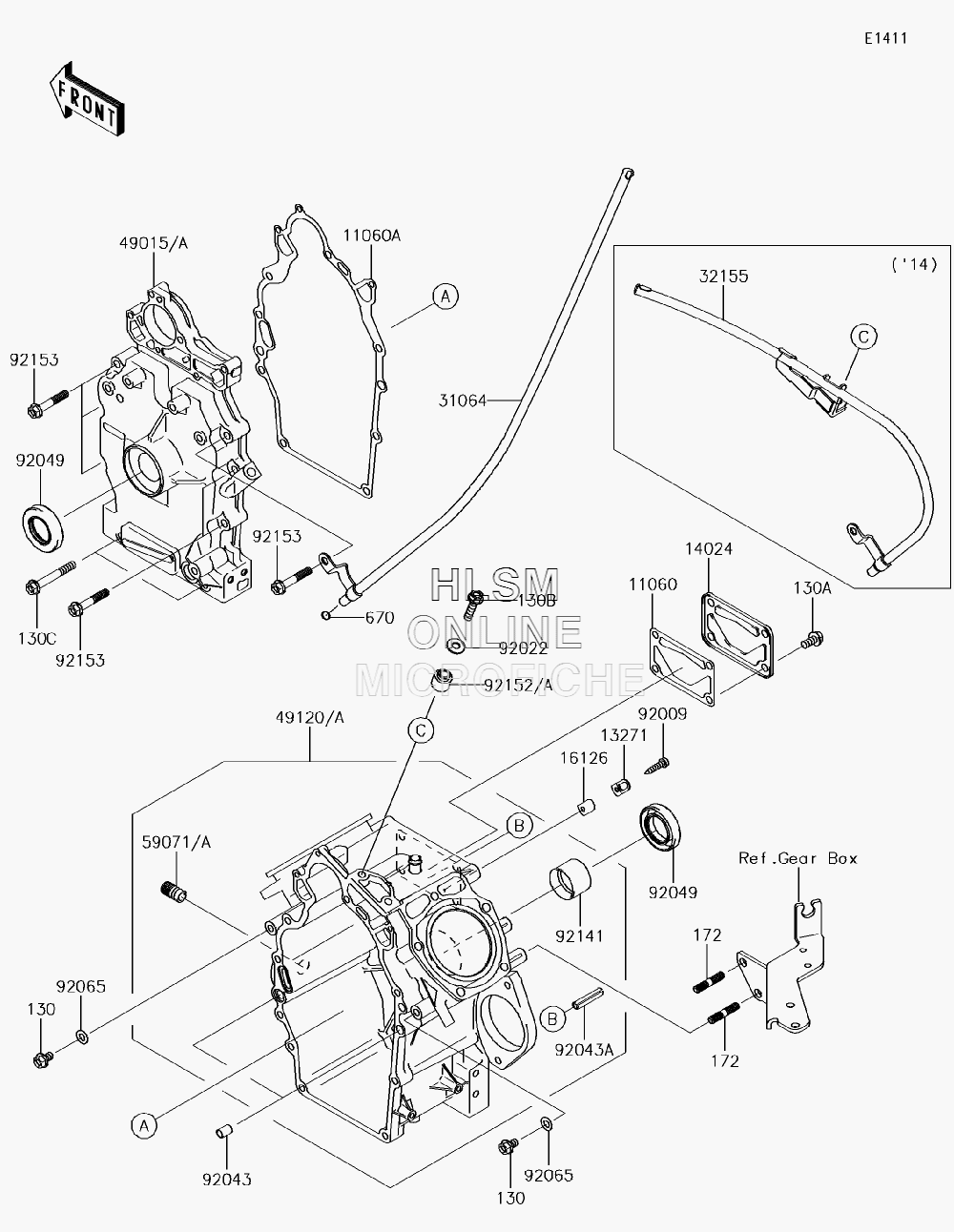

CRANKCASE для Kawasaki MULE 4000 (KAF620PGF) - 2016 года выпуска
-
№АртикулНазвание
-
1106011060-2089 GASKET, BREATHER, COVERGASKET, BREATHER, COVER
-
11060A11060-2449 GASKET, CRANKCASE COVERGASKET, CRANKCASE COVER
-
130130AB0812 BOLT-FLANGED, 8X12BOLT-FLANGED, 8X12
-
130A130BA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
130B130BA0835 BOLT-FLANGED, 8X35BOLT-FLANGED, 8X35
-
130C130CA0860 BOLT-FLANGED, 8X60BOLT-FLANGED, 8X60
-
1327113271-2054 PLATEPLATE
-
1402414024-2292 COVERCOVER
-
1612616126-2146 VALVEVALVE
-
172172BA0825 BOLT-STUD, 8X25BOLT-STUD, 8X25
-
3106431064-0655 PIPE-COMPPIPE-COMP
-
49015A49015-6324 COVER-CRANKCASECOVER-CRANKCASE
-
49120A49120-0847 CRANKCASE-COMPCRANKCASE-COMP
-
59071A59071-7025 JOINTJOINT
-
670670B2010 O RING, 10MMO RING, 10MM
-
9200992009-2308 SCREWSCREW
-
9202292022-1561 WASHER, 8.5X20X1.6WASHER, 8.5X20X1.6
-
9204392043-1037 PIN, DOWEL, 10X14PIN, DOWEL, 10X14
-
92043A92043-2227 PIN, 2X25PIN, 2X25
-
9204992049-2112 SEAL-OILSEAL-OIL
-
9206592065-023 GASKET, 8.5X16X1GASKET, 8.5X16X1
-
9214192141-2122 BEARING-PLANEBEARING-PLANE
-
92152A92152-1901 COLLARCOLLAR
-
9215392153-2130 BOLT, FLANGED, 8X45BOLT, FLANGED, 8X45
