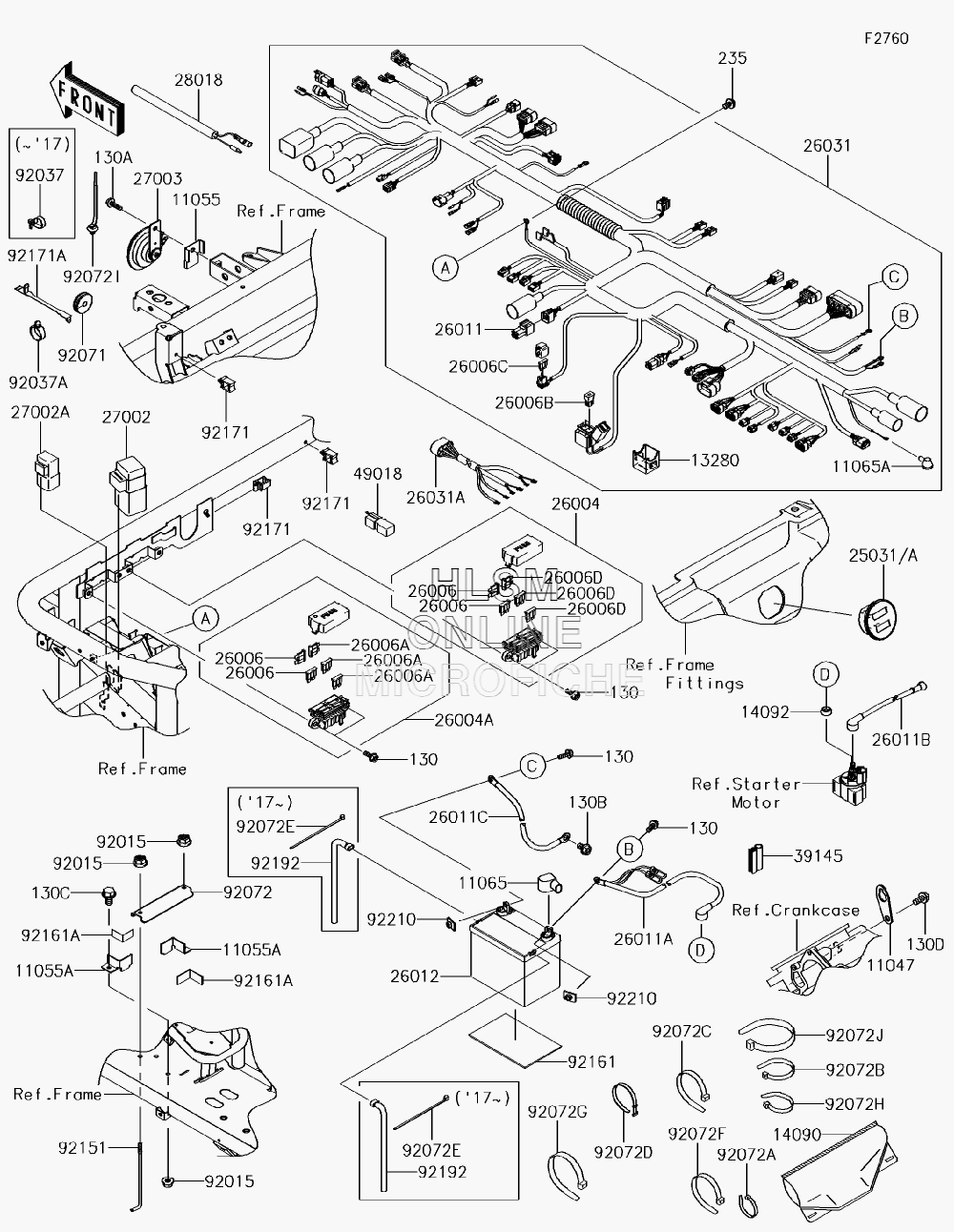

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki MULE 4010 4X4 SE (KAF620TGF) - 2016 года выпуска
-
№АртикулНазвание
-
1104711047-2056-9H BRACKET, (F.BLACK) (FOR ALL COLORS)BRACKET, (F.BLACK) (FOR ALL COLORS)
-
1105511055-0167 BRACKET, HORNBRACKET, HORN
-
11055A11055-0433 BRACKETBRACKET
-
1106511065-0285 CAP, BATTERY TERMINALCAP, BATTERY TERMINAL
-
11065A11065-0726 CAP, NEUTRAL SW.CAP, NEUTRAL SW.
-
130130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130A130BA0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
130B130BA0812 BOLT-FLANGED, 8X12BOLT-FLANGED, 8X12
-
130C130BA0814 BOLT-FLANGED, 8X14BOLT-FLANGED, 8X14
-
130D130BA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
1328013280-7508 HOLDERHOLDER
-
1409014090-1611 COVER, COUPLERCOVER, COUPLER
-
1409214092-0851 COVER, MAGNETIC SW.COVER, MAGNETIC SW.
-
235235AA0610 SCREW-PAN-WP-CROS, 6X10SCREW-PAN-WP-CROS, 6X10
-
2503125031-0455 METER-ASSYMETER-ASSY
-
2600426004-0018 FUSE-ASSYFUSE-ASSY
-
26004A26004-0019 FUSE-ASSYFUSE-ASSY
-
2600626006-0004 FUSE, BLADE, 30A, (GREEN)FUSE, BLADE, 30A, (GREEN)
-
26006A26006-0005 FUSE, BLADE, 10A, (RED)FUSE, BLADE, 10A, (RED)
-
26006B26006-0014 FUSE, SLOW BLOW, BT, 40A, (GREEN)FUSE, SLOW BLOW, BT, 40A, (GREEN)
-
26006C26006-0015 FUSE, 7.5AFUSE, 7.5A
-
26006D26006-1051 FUSE, BLADE, 20A, (YELLOW)FUSE, BLADE, 20A, (YELLOW)
-
2601126011-0037 WIRE-LEADWIRE-LEAD
-
26011A26011-0813 WIRE-LEAD, BATTERY(+)WIRE-LEAD, BATTERY(+)
-
26011B26011-0814 WIRE-LEAD, STARTERWIRE-LEAD, STARTER
-
26011C26011-1787 WIRE-LEAD, BATTERY(-)WIRE-LEAD, BATTERY(-)
-
2601226012-0107 BATTERY, 12V 14AHBATTERY, 12V 14AH
-
2603126031-1535 HARNESS, MAINHARNESS, MAIN
-
26031A26031-2080 HARNESSHARNESS
-
2700227002-1068 RELAY-ASSYRELAY-ASSY
-
27002A27002-1088 RELAY-ASSYRELAY-ASSY
-
2700327003-1330 HORNHORN
-
2801828018-0553 RESISTORRESISTOR
-
3914539145-0046 TRIM-SEALTRIM-SEAL
-
4901849018-0005 DIODEDIODE
-
9201592015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037A92037-1827 CLAMP, HOSECLAMP, HOSE
-
9207192071-1136 GROMMETGROMMET
-
9207292072-0112 BANDBAND
-
92072A92072-030 BAND, L=123BAND, L=123
-
92072B92072-031 BAND, L=149BAND, L=149
-
92072C92072-032 BAND, L=218BAND, L=218
-
92072D92072-056 BAND, L=186BAND, L=186
-
92072F92072-1195 BAND, L=202BAND, L=202
-
92072G92072-1237 BAND, L=250BAND, L=250
-
92072H92072-1239 BAND, L=188BAND, L=188
-
92072J92072-3872 BAND, L=368.3BAND, L=368.3
-
9215192151-1897 BOLT, BATTERYBOLT, BATTERY
-
9216192161-0578 DAMPERDAMPER
-
92161A92161-0580 DAMPERDAMPER
-
9217192171-0290 CLAMPCLAMP
-
92171A92171-1365 CLAMPCLAMP
-
9221092210-1352 NUT, PLATE, 6MMNUT, PLATE, 6MM
