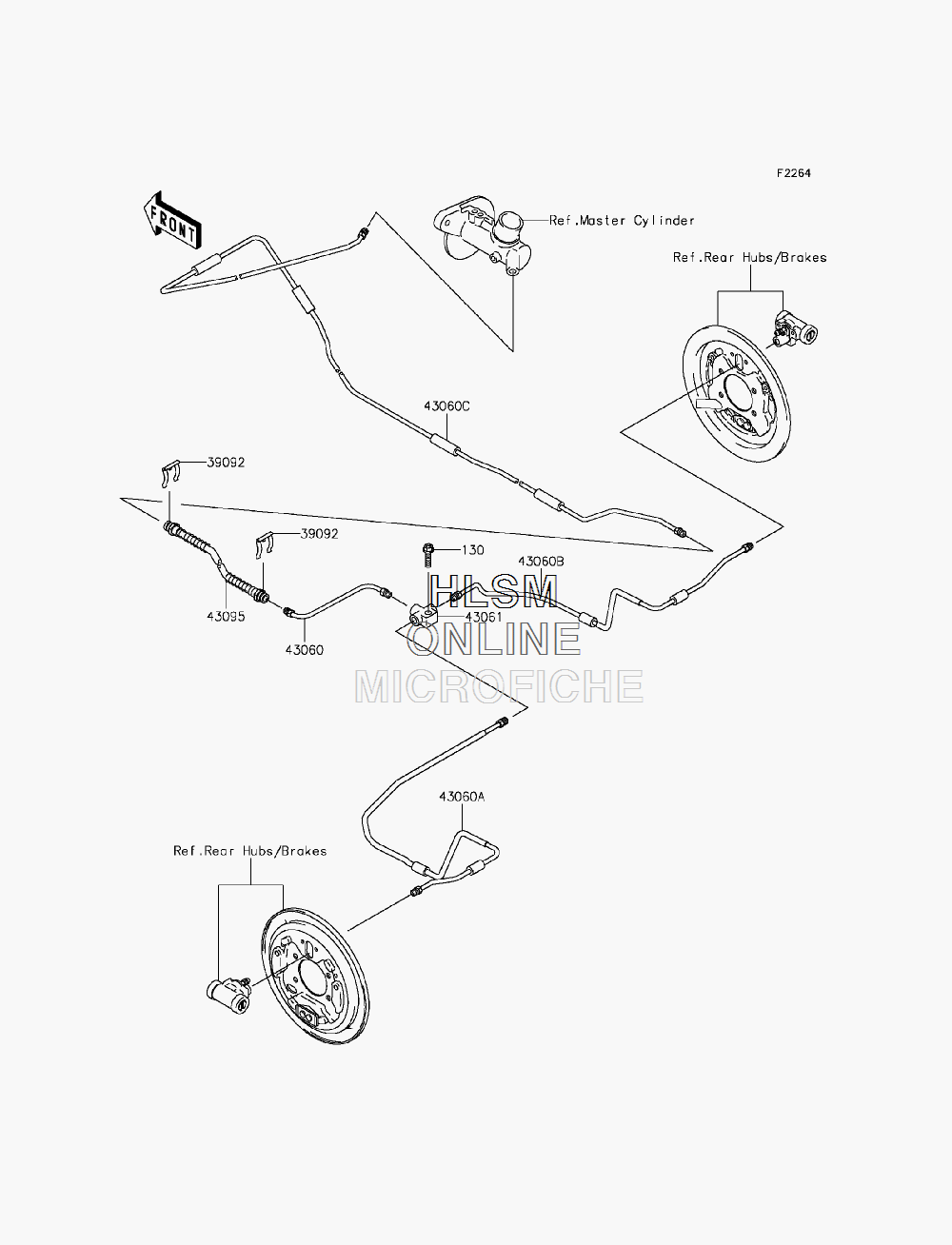

BRAKE PIPING - REAR для Kawasaki MULE 600 (KAF400BGF) - 2016 года выпуска
-
№АртикулНазвание
-
130130AA0830 BOLT-FLANGED,8X30BOLT-FLANGED,8X30
-
3909239092-1052 PIN-HAIRPIN-HAIR
-
4306043060-0006 PIPE-BRAKE, REAR,CNTPIPE-BRAKE, REAR,CNT
-
43060A43060-0007 PIPE-BRAKE, REAR, LEFT HANDPIPE-BRAKE, REAR, LEFT HAND
-
43060B43060-0008 PIPE-BRAKE, REAR, RIGHT HANDPIPE-BRAKE, REAR, RIGHT HAND
-
43060C43060-7507 PIPE-BRAKE,M/CYLINDERPIPE-BRAKE,M/CYLINDER
-
4306143061-1063 JOINT-BRAKEJOINT-BRAKE
-
4309543095-0488 HOSE-BRAKEHOSE-BRAKE
