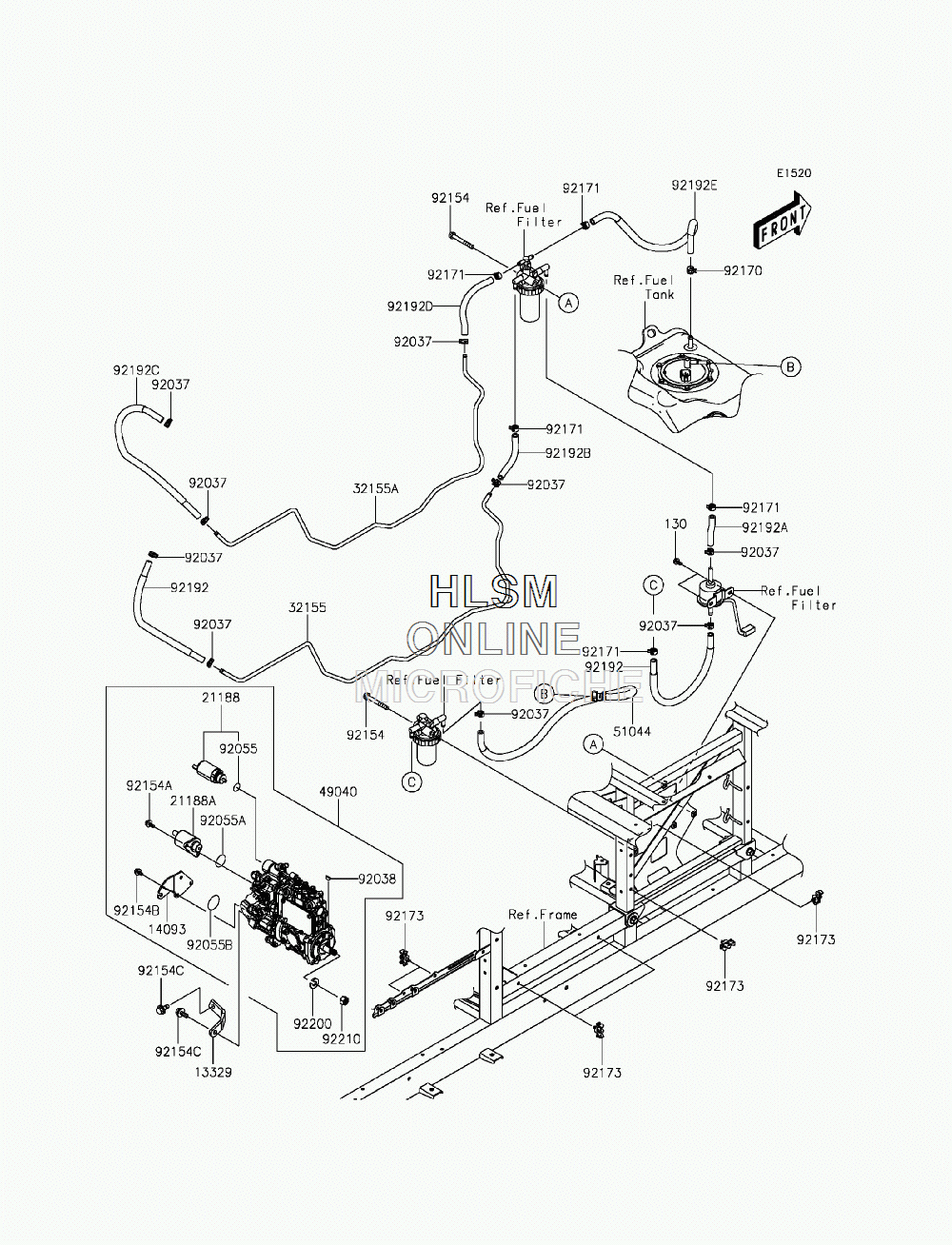

FUEL PUMP для Kawasaki MULE PRO-DX EPS LE (KAF1000FGF) - 2016 года выпуска
-
№АртикулНазвание
-
130130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
1332913329-0001 SUPPORTSUPPORT
-
1409314093-0448 COVER, GOVERNOR CASECOVER, GOVERNOR CASE
-
2118821188-0012 SOLENOID, POWER CONTROLSOLENOID, POWER CONTROL
-
21188A21188-0013 SOLENOID, STOPSOLENOID, STOP
-
3215532155-2047 PIPE, FEEDPIPE, FEED
-
32155A32155-2048 PIPE, RETURNPIPE, RETURN
-
4904049040-0751 PUMP-FUEL, INJECTIONPUMP-FUEL, INJECTION
-
5104451044-0785 TUBE-ASSYTUBE-ASSY
-
9203792037-1181 CLAMP, HOSE CLIPCLAMP, HOSE CLIP
-
9203892038-0008 KEY, WOODRUFFKEY, WOODRUFF
-
9205592055-0859 RING-ORING-O
-
92055A92055-0860 RING-ORING-O
-
92055B92055-0861 RING-ORING-O
-
9215492154-1940 BOLT, FLANGED, 8X63BOLT, FLANGED, 8X63
-
92154A92154-1997 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
92154B92154-2068 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
92154C92154-2071 BOLT, FLANGED, 8X16BOLT, FLANGED, 8X16
-
9217092170-1938 CLAMPCLAMP
-
9217192171-0515 CLAMPCLAMP
-
9217392173-1467 CLAMPCLAMP
-
9219292192-1476 TUBE, 7.5X13.5X390TUBE, 7.5X13.5X390
-
92192A92192-1477 TUBE, PUMP-FILTERTUBE, PUMP-FILTER
-
92192B92192-1478 TUBE, FILER-ENGINE (FILTER SIDE)TUBE, FILER-ENGINE (FILTER SIDE)
-
92192C92192-1479 TUBE, ENGINE-FILER (ENGINE SIDE)TUBE, ENGINE-FILER (ENGINE SIDE)
-
92192D92192-1480 TUBE, ENGINE-FILER (FILTER SIDE)TUBE, ENGINE-FILER (FILTER SIDE)
-
92192E92192-1481 TUBE, FILTER-TANKTUBE, FILTER-TANK
-
9220092200-1810 WASHER, SPRINGWASHER, SPRING
-
9221092210-1486 NUT, 12MMNUT, 12MM
