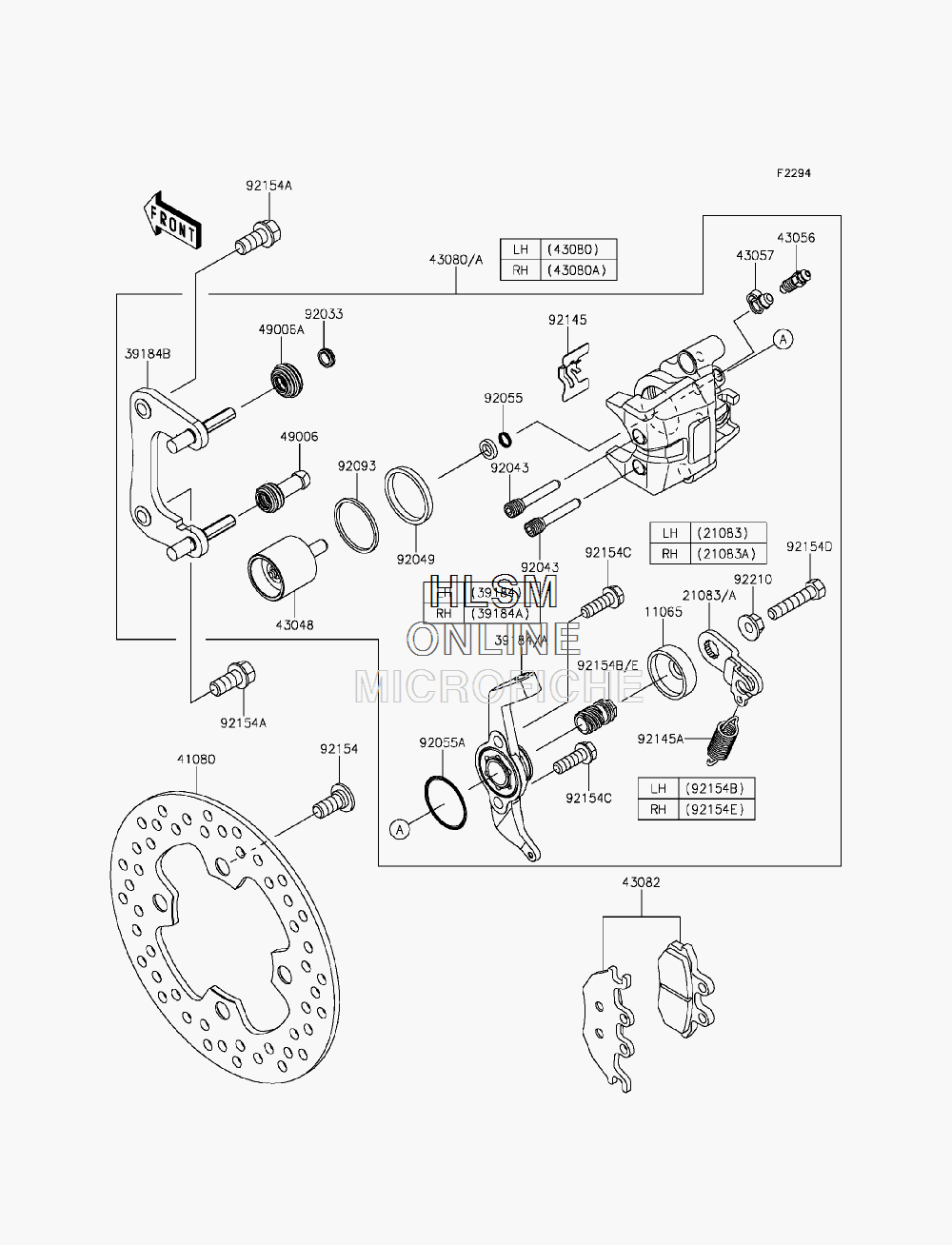

BRAKE - REAR для Kawasaki MULE PRO-DX (KAF1000DGF) - 2016 года выпуска
-
№АртикулНазвание
-
1106511065-0870 CAPCAP
-
2108321083-0728 ARM, BRAKE, REAR, LEFT HANDARM, BRAKE, REAR, LEFT HAND
-
21083A21083-0729 ARM, BRAKE, REAR, RIGHT HANDARM, BRAKE, REAR, RIGHT HAND
-
3918439184-0042 BRACKET-ASSY, LEFT HANDBRACKET-ASSY, LEFT HAND
-
39184A39184-0043 BRACKET-ASSY, RIGHT HANDBRACKET-ASSY, RIGHT HAND
-
39184B39184-0044 BRACKET-ASSYBRACKET-ASSY
-
4108041080-0608 DISCDISC
-
4304843048-0027 PISTON-CALIPERPISTON-CALIPER
-
4305643056-0010 BREATHER-BRAKEBREATHER-BRAKE
-
4305743057-0552 CAP-BREATHERCAP-BREATHER
-
4308043080-0163 CALIPER-SUB-ASSY, REAR, LEFT HANDCALIPER-SUB-ASSY, REAR, LEFT HAND
-
43080A43080-0164 CALIPER-SUB-ASSY, REAR, RIGHT HANDCALIPER-SUB-ASSY, REAR, RIGHT HAND
-
4308243082-0140 PAD-ASSY-BRAKEPAD-ASSY-BRAKE
-
4900649006-0591 BOOTBOOT
-
49006A49006-0592 BOOTBOOT
-
9203392033-0749 RING-SNAPRING-SNAP
-
9204392043-0818 PINPIN
-
9204992049-0765 SEAL-OILSEAL-OIL
-
9205592055-0793 RING-ORING-O
-
92055A92055-0795 RING-ORING-O
-
9209392093-0613 SEALSEAL
-
9214592145-1619 SPRINGSPRING
-
92145A92145-1690 SPRING, RETURN, 47MMSPRING, RETURN, 47MM
-
9215492154-0713 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
92154A92154-1327 BOLT, FLANGED, 10X22BOLT, FLANGED, 10X22
-
92154B92154-1479 BOLT, LEFT HANDBOLT, LEFT HAND
-
92154C92154-1480 BOLTBOLT
-
92154D92154-1481 BOLTBOLT
-
92154E92154-1503 BOLT, RIGHT HANDBOLT, RIGHT HAND
-
9221092210-0912 NUTNUT
