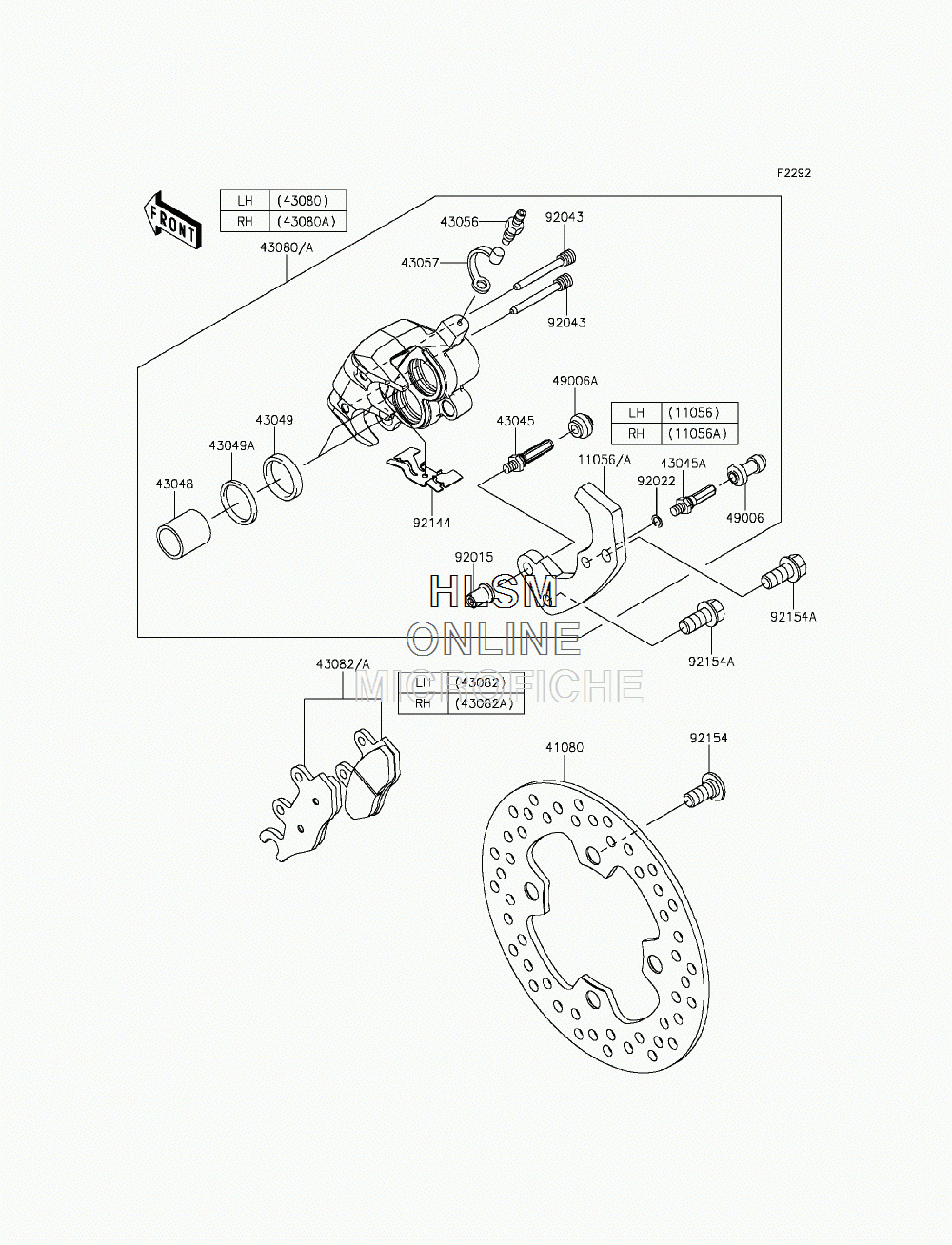

BRAKE - FRONT для Kawasaki MULE PRO-FX EPS LE (KAF820GGF) - 2016 года выпуска
-
№АртикулНазвание
-
1105611056-3807 BRACKET, LEFT HANDBRACKET, LEFT HAND
-
11056A11056-3829 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
4108041080-0608 DISCDISC
-
4304543045-0011 SHAFT-CALIPERSHAFT-CALIPER
-
43045A43045-1010 SHAFT-CALIPERSHAFT-CALIPER
-
4304843048-1068 PISTON-CALIPERPISTON-CALIPER
-
4304943049-1060 PACKING,PISTON SEALPACKING,PISTON SEAL
-
43049A43049-1061 PACKING,PISTON SEALPACKING,PISTON SEAL
-
4305643056-1055 BREATHERBREATHER
-
4305743057-1001 CAP-BREATHERCAP-BREATHER
-
4308043080-0138 CALIPER-SUB-ASSY, FRONT, LEFT HANDCALIPER-SUB-ASSY, FRONT, LEFT HAND
-
43080A43080-0139 CALIPER-SUB-ASSY, FRONT, RIGHT HANDCALIPER-SUB-ASSY, FRONT, RIGHT HAND
-
4308243082-0138 PAD-ASSY-BRAKE, FRONT, LEFT HANDPAD-ASSY-BRAKE, FRONT, LEFT HAND
-
43082A43082-0146 PAD-ASSY-BRAKE, FRONT, RIGHT HANDPAD-ASSY-BRAKE, FRONT, RIGHT HAND
-
4900649006-1088 BOOT,CALIPERBOOT,CALIPER
-
49006A49006-1242 BOOT,CALIPERBOOT,CALIPER
-
9201592015-1740 NUTNUT
-
9202292022-1373 WASHER,WAVEWASHER,WAVE
-
9204392043-1416 PIN,HANGERPIN,HANGER
-
9214492144-1847 SPRING,PADSPRING,PAD
-
9215492154-0713 BOLT,SOCKET,10X23BOLT,SOCKET,10X23
-
92154A92154-1327 BOLT,FLANGED,10X22BOLT,FLANGED,10X22
