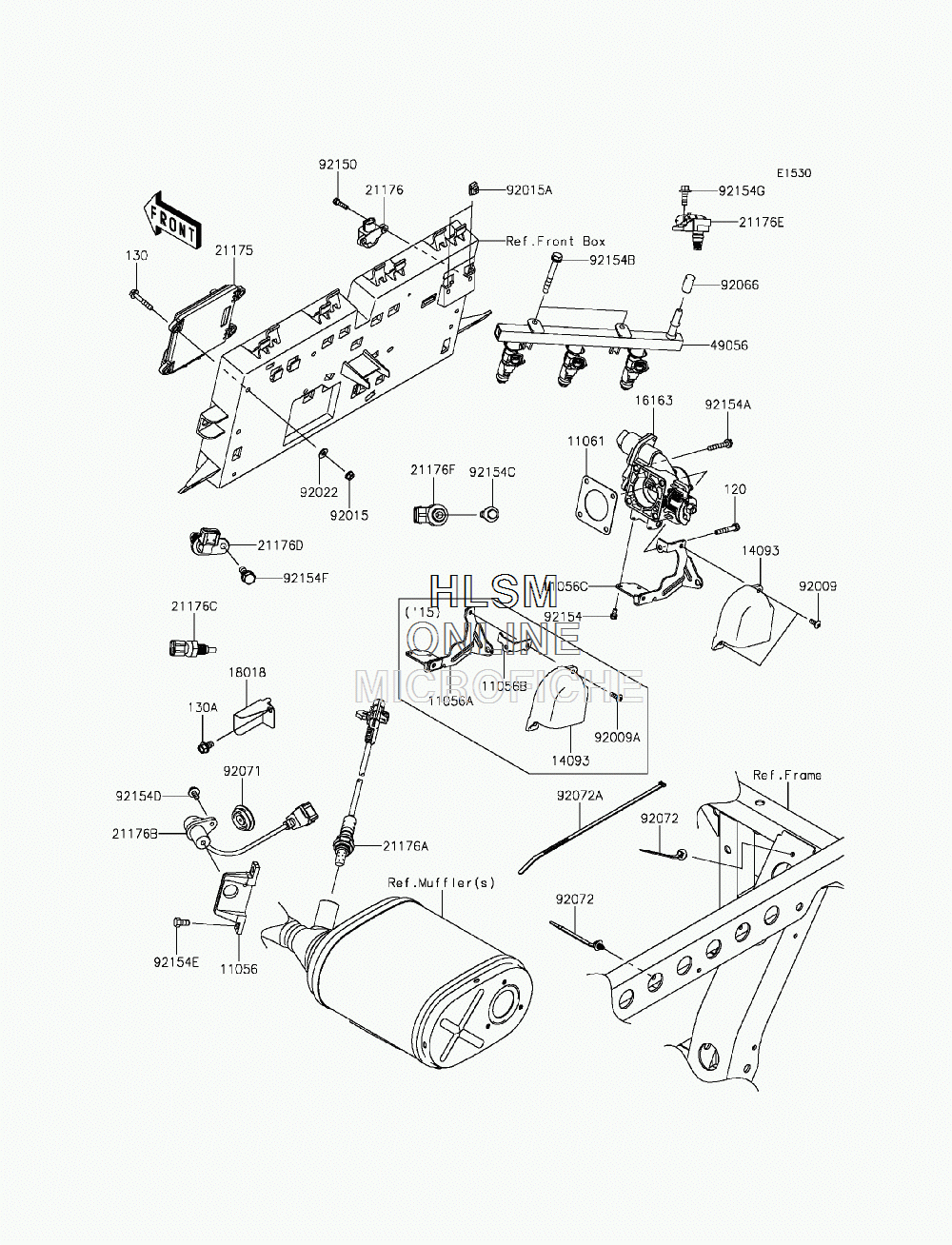

FUEL INJECTION для Kawasaki MULE PRO-FXT EPS (KAF820BGF) - 2016 года выпуска
-
№АртикулНазвание
-
120120CA0640 BOLT-SOCKET,6X40BOLT-SOCKET,6X40
-
130130BA0635 BOLT-FLANGED,6X35BOLT-FLANGED,6X35
-
130A130BA0814 BOLT-FLANGED,8X14BOLT-FLANGED,8X14
-
1105611056-2680 BRACKET,CRANKSHAFT POSITIONBRACKET,CRANKSHAFT POSITION
-
11056C11056-7495 BRACKET,THROTTLE CABLEBRACKET,THROTTLE CABLE
-
1106111061-0954 GASKET,THROTTLEGASKET,THROTTLE
-
1409314093-0043 COVER,THROTTLECOVER,THROTTLE
-
1616316163-0816 THROTTLE-ASSYTHROTTLE-ASSY
-
1801818018-0049 PLATE-HEAT GUARDPLATE-HEAT GUARD
-
2117521175-0893 CONTROL UNIT-ELECTRONICCONTROL UNIT-ELECTRONIC
-
2117621176-0026 SENSOR,VEHICLE-DOWNSENSOR,VEHICLE-DOWN
-
21176A21176-0773 SENSOR,OXYGENSENSOR,OXYGEN
-
21176B21176-0795 SENSOR,CRANKSHAFT POSITIONSENSOR,CRANKSHAFT POSITION
-
21176C21176-0796 SENSOR,WATER TEMPSENSOR,WATER TEMP
-
21176D21176-0797 SENSOR,CAMSHAFT POSITIONSENSOR,CAMSHAFT POSITION
-
21176E21176-0798 SENSOR,AIR INTAKE TEMPSENSOR,AIR INTAKE TEMP
-
21176F21176-0799 SENSOR,EXPLOSIONSENSOR,EXPLOSION
-
4905649056-0038 PIPE-INJECTIONPIPE-INJECTION
-
9200992009-1366 SCREW,5X14,WHITESCREW,5X14,WHITE
-
9201592015-1367 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
92015A92015-1627 NUT,5MMNUT,5MM
-
9202292022-2247 WASHERWASHER
-
9206692066-0810 PLUGPLUG
-
9207192071-0730 GROMMETGROMMET
-
9207292072-1414 BANDBAND
-
92072A92072-3509 BAND,L=292.1BAND,L=292.1
-
9215092150-1019 BOLT,SOCKET,5X20BOLT,SOCKET,5X20
-
9215492154-1396 BOLT,SOCKET,5X10BOLT,SOCKET,5X10
-
92154A92154-1589 BOLT,6X38BOLT,6X38
-
92154B92154-1591 BOLT,6X50BOLT,6X50
-
92154C92154-1592 BOLT,FLANGED,8X30BOLT,FLANGED,8X30
-
92154D92154-1593 BOLT,FLANGED,6X12BOLT,FLANGED,6X12
-
92154E92154-1594 BOLT,6X12BOLT,6X12
-
92154F92154-1595 BOLT,8X16BOLT,8X16
-
92154G92154-1596 BOLT,FLANGED,6X16BOLT,FLANGED,6X16
