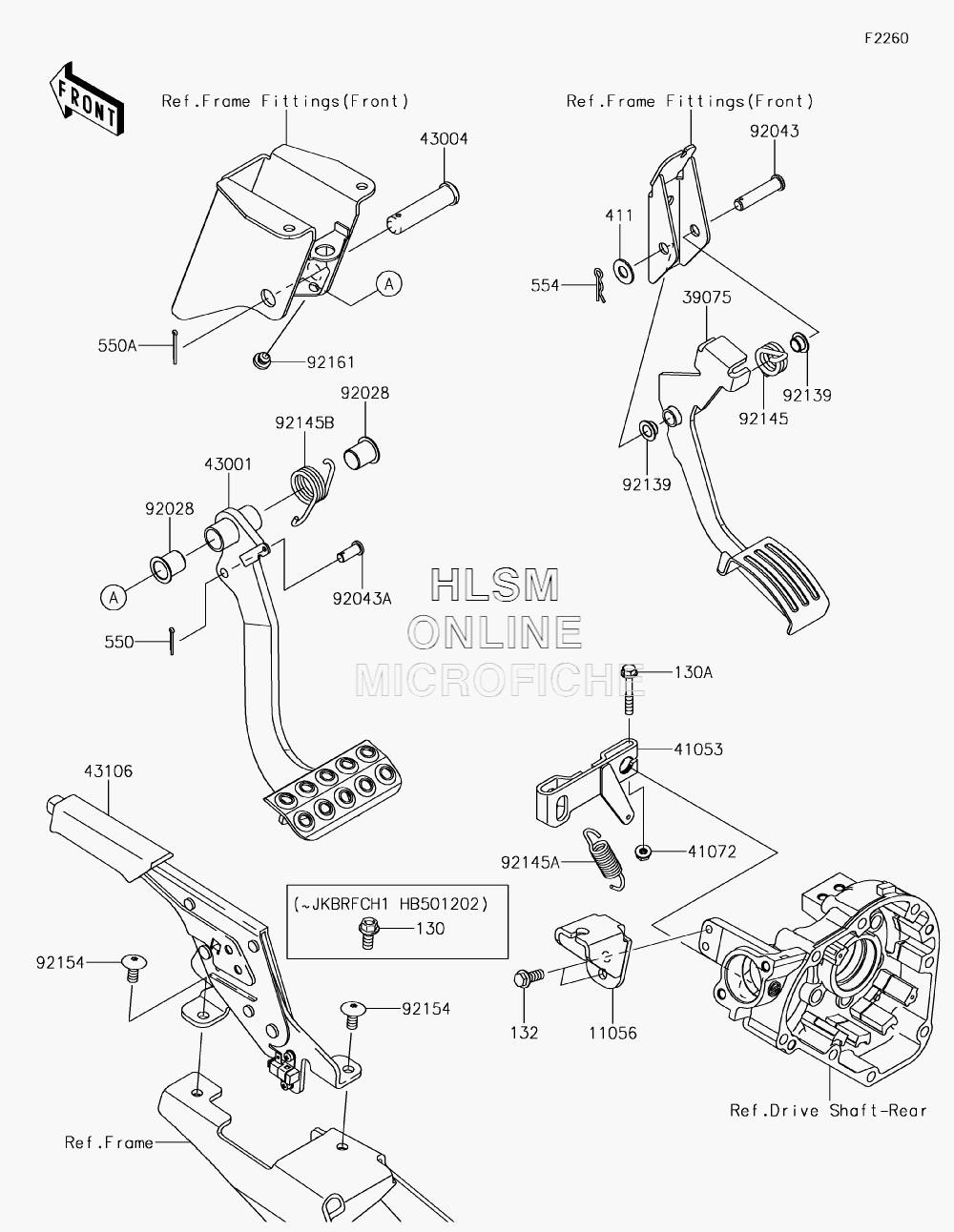

BRAKE - PEDAL W/THROTTLE LEVER для Kawasaki TERYX CAMO (KRF800HGF) - 2016 года выпуска
-
№АртикулНазвание
-
1105611056-2267 BRACKETBRACKET
-
130130BA0818 BOLT-FLANGED, 8X18 (UP TO JKBRFCH1 HB501202)BOLT-FLANGED, 8X18 (UP TO JKBRFCH1 HB501202)
-
130A130CA0640 BOLT-FLANGED, 6X40BOLT-FLANGED, 6X40
-
132132BA0820 BOLT-FLANGED-SMALL, 8X20BOLT-FLANGED-SMALL, 8X20
-
3907539075-0019 LEVER-THROTTLELEVER-THROTTLE
-
4105341053-0023 LEVER-BRAKE CAMLEVER-BRAKE CAM
-
4107241072-007 NUT, 6MMNUT, 6MM
-
411411AA1000 WASHER-PLAIN, 10MMWASHER-PLAIN, 10MM
-
4300143001-0739 LEVER-BRAKE, PEDALLEVER-BRAKE, PEDAL
-
4300443004-1128 SHAFT-BRAKESHAFT-BRAKE
-
4310643106-0005 LEVER-ASSY-PARKING BRAKELEVER-ASSY-PARKING BRAKE
-
550550AA2518 PIN-COTTER, 2.5X18PIN-COTTER, 2.5X18
-
550A550AA2525 PIN-COTTER, 2.5X25PIN-COTTER, 2.5X25
-
554554DA1000 PIN-SNAP, 10MMPIN-SNAP, 10MM
-
9202892028-1571 BUSHINGBUSHING
-
9204392043-0707 PIN, 10X42.5PIN, 10X42.5
-
92043A92043-1039 PINPIN
-
9213992139-0230 BUSHINGBUSHING
-
9214592145-0831 SPRING, THROTTLESPRING, THROTTLE
-
92145A92145-0880 SPRING, BRAKE CAM LEVERSPRING, BRAKE CAM LEVER
-
92145B92145-1615 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
9216192161-1084 DAMPERDAMPER
