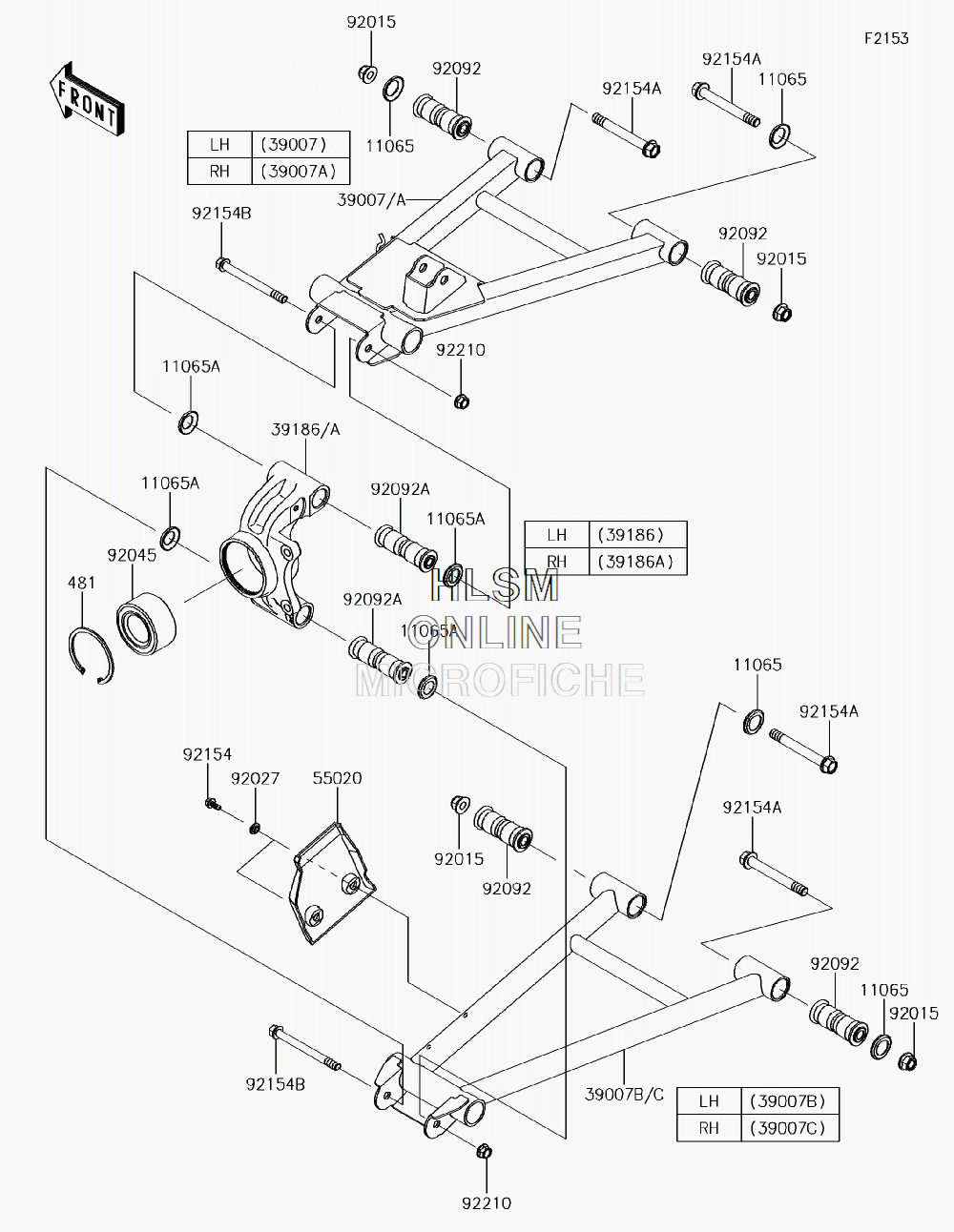

SUSPENSION - REAR для Kawasaki MULE PRO-DX EPS (EUROPEAN ONLY) (KAF1000EHF) - 2017 года выпуска
-
№АртикулНазвание
-
1106511065-0838 CAP, ARMCAP, ARM
-
11065A11065-0849 CAPCAP
-
3900739007-0379 ARM-SUSP, REAR, UPPER, LEFT HANDARM-SUSP, REAR, UPPER, LEFT HAND
-
39007A39007-0380 ARM-SUSP, REAR, UPPER, RIGHT HANDARM-SUSP, REAR, UPPER, RIGHT HAND
-
39007B39007-0381 ARM-SUSP, REAR, LOWER, LEFT HANDARM-SUSP, REAR, LOWER, LEFT HAND
-
39007C39007-0382 ARM-SUSP, REAR, LOWER, RIGHT HANDARM-SUSP, REAR, LOWER, RIGHT HAND
-
3918639186-0317 KNUCKLE, REAR, LEFT HANDKNUCKLE, REAR, LEFT HAND
-
39186A39186-0318 KNUCKLE, REAR, RIGHT HANDKNUCKLE, REAR, RIGHT HAND
-
481481J7500 CIRCLIP-TYPE-CCIRCLIP-TYPE-C
-
5502055020-0931 GUARD, REAR CVJGUARD, REAR CVJ
-
9201592015-1433 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
-
9202792027-1168 COLLAR, L=4.6COLLAR, L=4.6
-
9204592045-0763 BEARING-BALL, 40X74X36BEARING-BALL, 40X74X36
-
9209292092-0028 BUSHING-RUBBER, 12X20X78BUSHING-RUBBER, 12X20X78
-
92092A92092-0029 BUSHING-RUBBER, 10.1X17X88BUSHING-RUBBER, 10.1X17X88
-
9215492154-1250 BOLT, 6X15.6BOLT, 6X15.6
-
92154A92154-1318 BOLT, FLANGED, 12X100BOLT, FLANGED, 12X100
-
92154B92154-1353 BOLT, FLANGED, 10X110BOLT, FLANGED, 10X110
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
