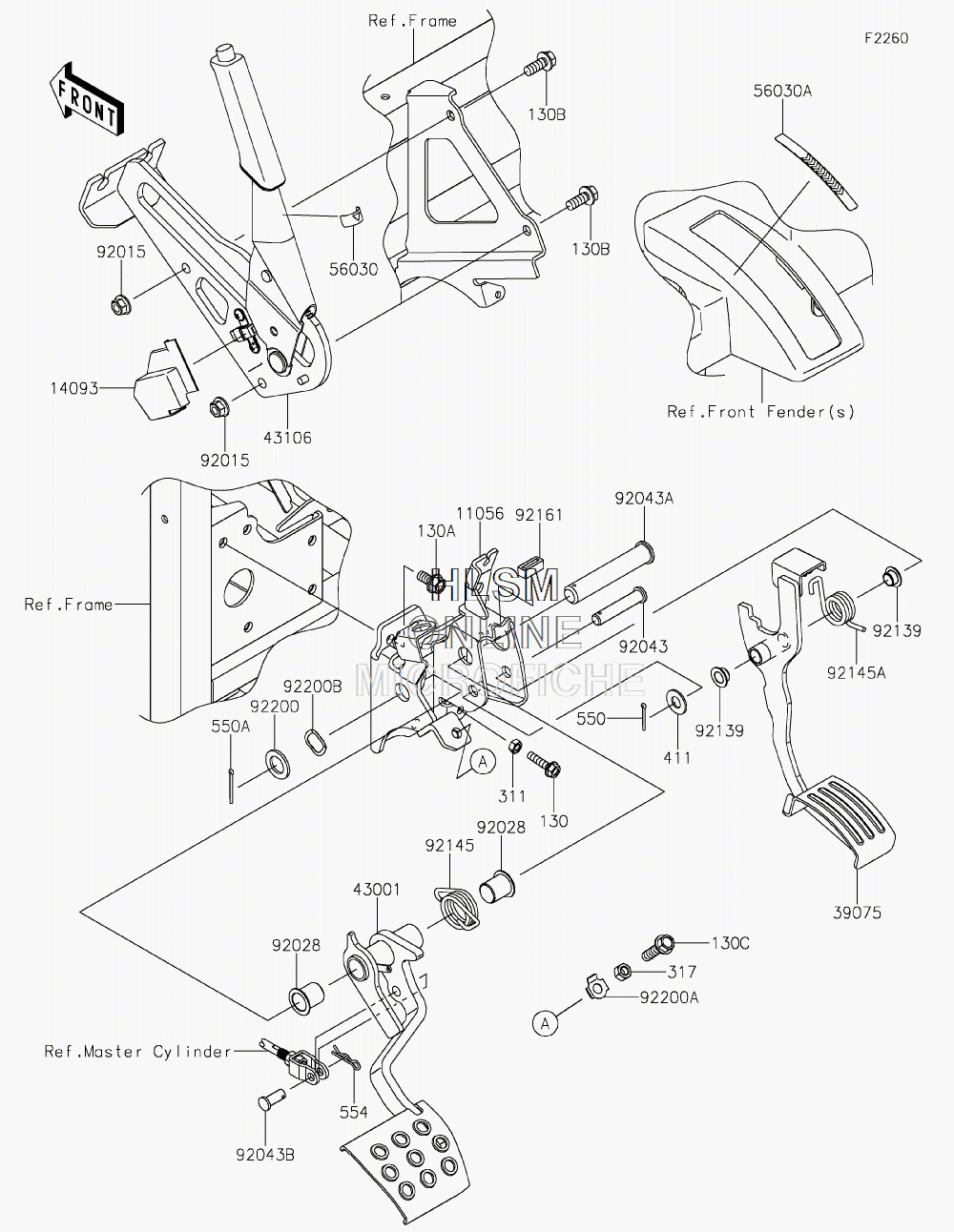

BRAKE - PEDAL W/THROTTLE LEVER для Kawasaki MULE PRO-DX EPS (KAF1000EHF) - 2017 года выпуска
-
№АртикулНазвание
-
1105611056-2834 BRACKET, BRAKEBRACKET, BRAKE
-
130130BA0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
130A130BA0818 BOLT-FLANGED, 8X18BOLT-FLANGED, 8X18
-
130B130BA0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130C130BA0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
1409314093-0241 COVER, PARKING BRAKE SW.COVER, PARKING BRAKE SW.
-
311311BA0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
317317BA0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
3907539075-0020 LEVER-THROTTLELEVER-THROTTLE
-
411411AA1000 WASHER-PLAIN, 10MMWASHER-PLAIN, 10MM
-
4300143001-0728 LEVER-BRAKE, FOOTLEVER-BRAKE, FOOT
-
4310643106-0006 LEVER-ASSY-PARKING BRAKELEVER-ASSY-PARKING BRAKE
-
550550AA2518 PIN-COTTER, 2.5X18PIN-COTTER, 2.5X18
-
550A550AA2525 PIN-COTTER, 2.5X25PIN-COTTER, 2.5X25
-
554554DA1000 PIN-SNAP, 10MMPIN-SNAP, 10MM
-
5603056030-0905 LABEL, ARROWLABEL, ARROW
-
56030A56030-0930 LABEL, STROKE RANGELABEL, STROKE RANGE
-
9201592015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9202892028-1571 BUSHINGBUSHING
-
9204392043-0785 PIN, 10X51.5PIN, 10X51.5
-
92043A92043-0786 PIN, 16X88PIN, 16X88
-
92043B92043-1039 PINPIN
-
9213992139-0230 BUSHINGBUSHING
-
9214592145-1615 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
92145A92145-1697 SPRING, RETURN, 3X22SPRING, RETURN, 3X22
-
9216192161-1695 DAMPERDAMPER
-
9220092200-0043 WASHER, 16X26X2.3WASHER, 16X26X2.3
-
92200A92200-0993 WASHER, 8.5X17X0.8WASHER, 8.5X17X0.8
-
92200B92200-1689 WASHER, 17X23X2.5WASHER, 17X23X2.5
