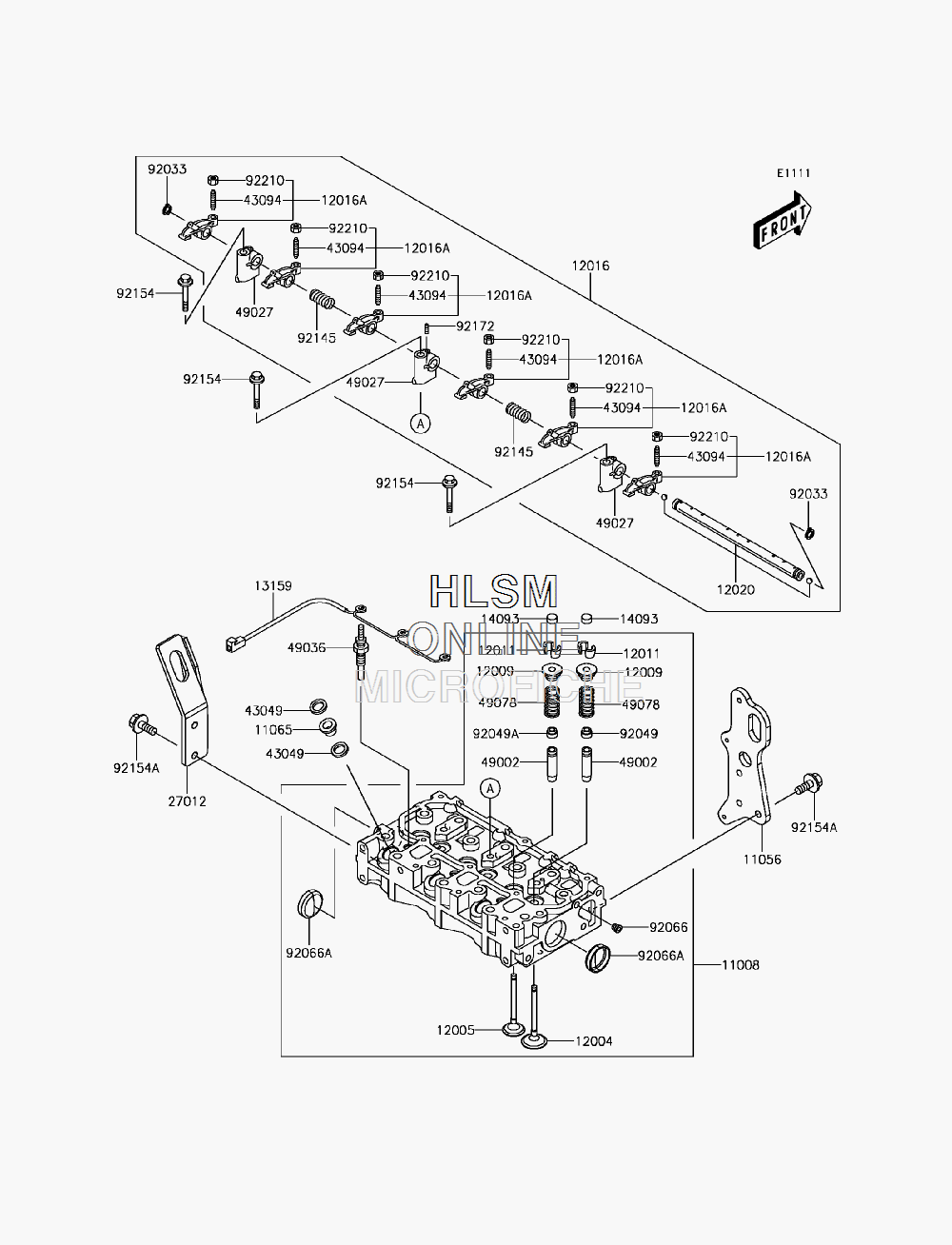

CYLINDER HEAD для Kawasaki MULE PRO-DXT EPS LE (KAF1000CHF) - 2017 года выпуска
-
№АртикулНазвание
-
1100811008-0875 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
1105611056-7956 BRACKET, FRAMEBRACKET, FRAME
-
1106511065-0942 CAP,NOZZLECAP,NOZZLE
-
1200412004-0739 VALVE-INTAKEVALVE-INTAKE
-
1200512005-0759 VALVE-EXHAUSTVALVE-EXHAUST
-
1200912009-0029 RETAINER-VALVE SPRINGRETAINER-VALVE SPRING
-
1201112011-0004 COLLETCOLLET
-
1201612016-0044 ARM-ROCKERARM-ROCKER
-
12016A12016-0045 ARM-ROCKERARM-ROCKER
-
1202012020-0018 SHAFT-ROCKERSHAFT-ROCKER
-
1315913159-0019 CONNECTOR,PLUG-GLOWCONNECTOR,PLUG-GLOW
-
1409314093-0440 COVER,VALVECOVER,VALVE
-
2701227012-0819 HOOKHOOK
-
4304943049-0037 PACKING,NOZZLEPACKING,NOZZLE
-
4309443094-0006 ADJUSTER,VALVEADJUSTER,VALVE
-
4900249002-0032 GUIDE-VALVEGUIDE-VALVE
-
4902749027-0001 HOLDER-ROCKERHOLDER-ROCKER
-
4903649036-0002 PLUG-GLOWPLUG-GLOW
-
4907849078-0731 SPRING-ENGINE VALVESPRING-ENGINE VALVE
-
9203392033-0773 RING-SNAPRING-SNAP
-
9204992049-0789 SEAL-OIL,INTAKESEAL-OIL,INTAKE
-
92049A92049-0790 SEAL-OIL,EXHAUSTSEAL-OIL,EXHAUST
-
9206692066-0847 PLUGPLUG
-
92066A92066-0852 PLUGPLUG
-
9214592145-1711 SPRINGSPRING
-
9215492154-1987 BOLT,FLANGED,8X40BOLT,FLANGED,8X40
-
92154A92154-2071 BOLT,FLANGED,8X16BOLT,FLANGED,8X16
-
9217292172-0984 SCREW,5X16SCREW,5X16
-
9221092210-1468 NUT,8MMNUT,8MM
