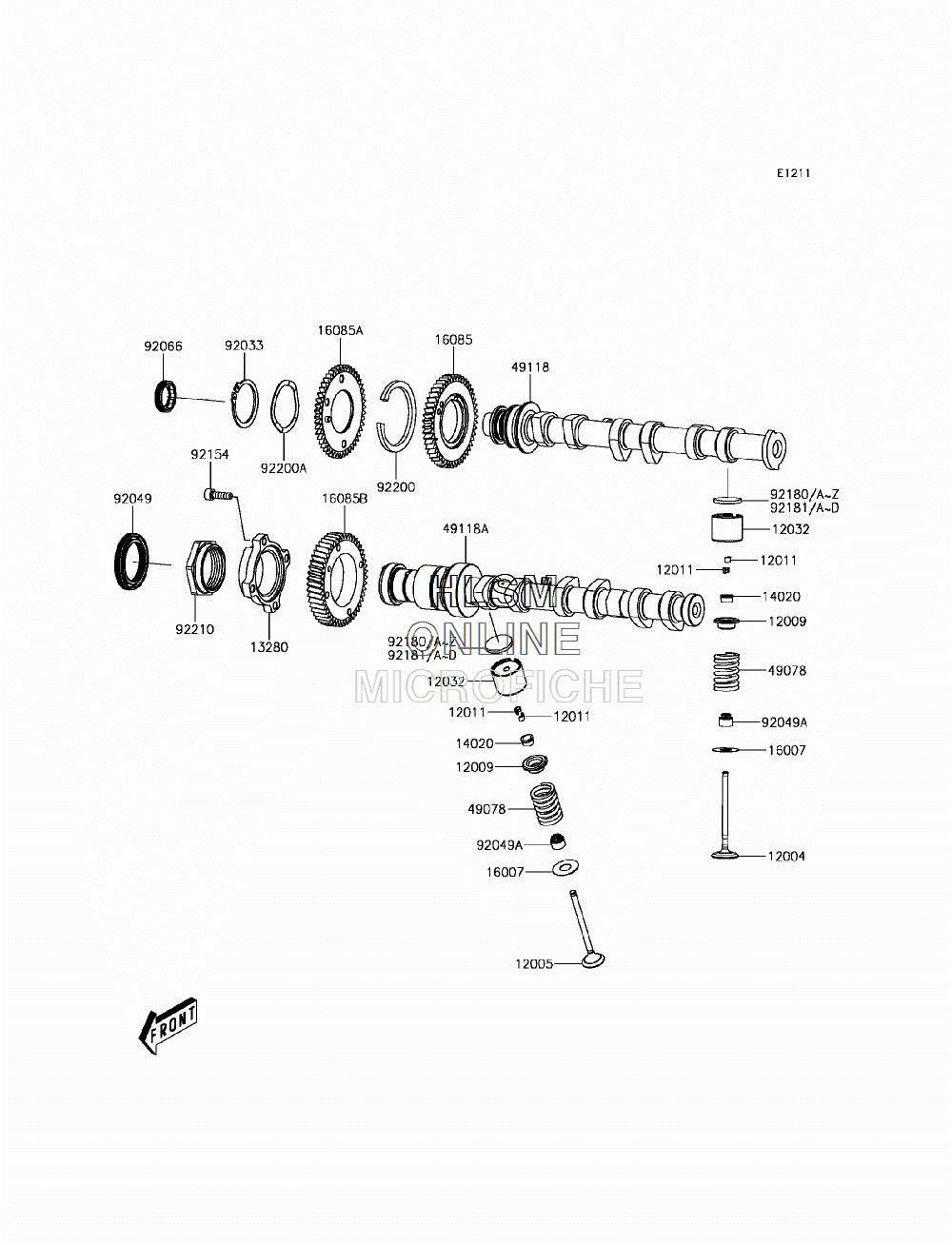

VALVE(S) W/ CAMSHAFT(S) для Kawasaki MULE PRO-FX EPS CAMO (KAF820HHF) - 2017 года выпуска
-
№АртикулНазвание
-
1200412004-0732 VALVE-INTAKEVALVE-INTAKE
-
1200512005-0749 VALVE-EXHAUSTVALVE-EXHAUST
-
1200912009-0027 RETAINER-VALVE SPRINGRETAINER-VALVE SPRING
-
1201112011-0003 COLLETCOLLET
-
1203212032-0019 TAPPETTAPPET
-
1328013280-0827 HOLDERHOLDER
-
1402014020-0015 RETAINERRETAINER
-
1600716007-0729 SEAT-SPRINGSEAT-SPRING
-
1608516085-0626 GEAR,INTAKE CAMSHAFT,MASTERGEAR,INTAKE CAMSHAFT,MASTER
-
16085A16085-0627 GEAR,INTAKE CAMSHAFT,SUBGEAR,INTAKE CAMSHAFT,SUB
-
16085B16085-0628 GEAR,EXHAUST CAMSHAFTGEAR,EXHAUST CAMSHAFT
-
4907849078-0724 SPRING-ENGINE VALVESPRING-ENGINE VALVE
-
4911849118-0836 CAMSHAFT-COMP,INTAKECAMSHAFT-COMP,INTAKE
-
49118A49118-0837 CAMSHAFT-COMP,EXHAUSTCAMSHAFT-COMP,EXHAUST
-
9203392033-0754 RING-SNAPRING-SNAP
-
9204992049-0776 SEAL-OILSEAL-OIL
-
92049A92049-0777 SEAL-OIL,AIR VALVESEAL-OIL,AIR VALVE
-
9206692066-0809 PLUGPLUG
-
9215492154-1619 BOLT,SOCKET,6X20BOLT,SOCKET,6X20
-
9218092180-0819 SHIM,T=2.18SHIM,T=2.18
-
92180A92180-0820 SHIM,T=2.20SHIM,T=2.20
-
92180B92180-0821 SHIM,T=2.22SHIM,T=2.22
-
92180C92180-0822 SHIM,T=2.24SHIM,T=2.24
-
92180D92180-0823 SHIM,T=2.26SHIM,T=2.26
-
92180E92180-0824 SHIM,T=2.28SHIM,T=2.28
-
92180F92180-0825 SHIM,T=2.30SHIM,T=2.30
-
92180G92180-0826 SHIM,T=2.32SHIM,T=2.32
