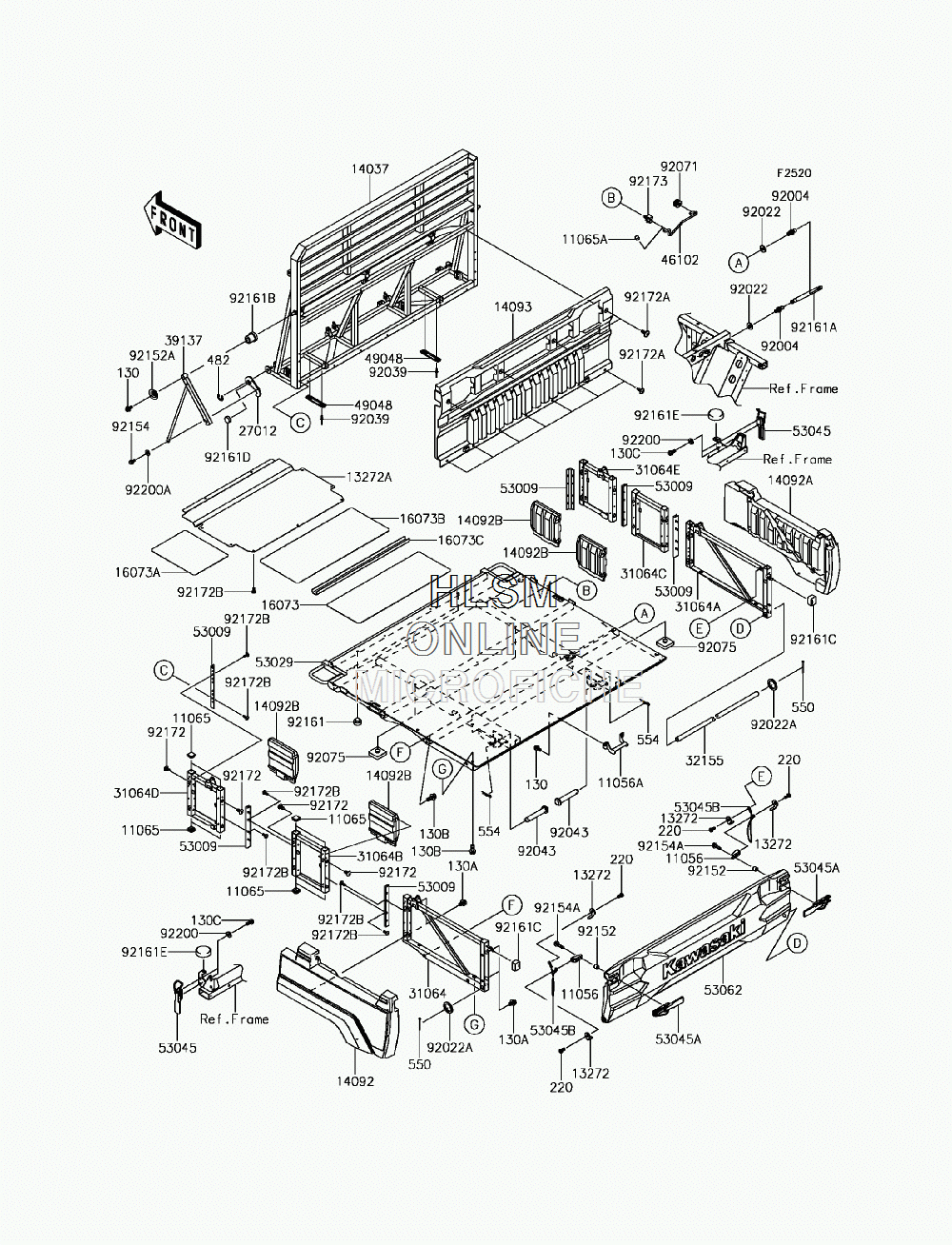

CARRIER(S) для Kawasaki MULE PRO-FXT EPS LE (KAF820CHF) - 2017 года выпуска
-
№АртикулНазвание
-
1105611056-2848 BRACKET,STOPPERBRACKET,STOPPER
-
11056A11056-4273 BRACKET,SUPPORTBRACKET,SUPPORT
-
1106511065-0848 CAPCAP
-
11065A11065-7504 CAPCAP
-
1327213272-1597 PLATEPLATE
-
13272A13272-1694 PLATEPLATE
-
1403714037-0771 SCREENSCREEN
-
1409214092-1179-6Z COVER,SIDE PANEL, REAR, LEFT HAND,F.BLACKCOVER,SIDE PANEL, REAR, LEFT HAND,F.BLACK
-
14092A14092-1180-6Z COVER,SIDE PANEL, REAR, RIGHT HAND,F.BLACKCOVER,SIDE PANEL, REAR, RIGHT HAND,F.BLACK
-
14092B14092-1181 COVER,SIDE PANEL,L & RCOVER,SIDE PANEL,L & R
-
1409314093-0301 COVER,SCREENCOVER,SCREEN
-
1607316073-0812 INSULATOR,250X705INSULATOR,250X705
-
16073A16073-0813 INSULATOR,265X335INSULATOR,265X335
-
16073B16073-0816 INSULATOR,295X705INSULATOR,295X705
-
16073C16073-0817 INSULATOR,70X705INSULATOR,70X705
-
2701227012-0787 HOOK,SCREENHOOK,SCREEN
-
3106431064-0634 PIPE-COMP, REAR, LEFT HANDPIPE-COMP, REAR, LEFT HAND
-
31064A31064-0635 PIPE-COMP, REAR, RIGHT HANDPIPE-COMP, REAR, RIGHT HAND
-
31064B31064-0638 PIPE-COMP,MIDDLE, LEFT HANDPIPE-COMP,MIDDLE, LEFT HAND
-
31064C31064-0639 PIPE-COMP,MIDDLE, RIGHT HANDPIPE-COMP,MIDDLE, RIGHT HAND
-
31064D31064-0640 PIPE-COMP, FRONT, LEFT HANDPIPE-COMP, FRONT, LEFT HAND
-
31064E31064-0641 PIPE-COMP, FRONT, RIGHT HANDPIPE-COMP, FRONT, RIGHT HAND
-
3215532155-1533 PIPEPIPE
-
3913739137-0661 STAY-COMPSTAY-COMP
-
4610246102-0606 RODROD
-
4904849048-0005 SHOE,SCREENSHOE,SCREEN
-
5300953009-0031 HINGEHINGE
-
5302953029-0350 CAREARIER,BASECAREARIER,BASE
-
5304553045-0025 HOOK-ASSY,MAIN LOCKHOOK-ASSY,MAIN LOCK
-
53045A53045-0026 HOOK-ASSY,MAIN CLAMPHOOK-ASSY,MAIN CLAMP
-
53045B53045-0029 HOOK-ASSYHOOK-ASSY
-
5306253062-0022 GATE-TAILGATE-TAIL
-
9200492004-0733 STUDSTUD
-
9202292022-1533 WASHER,8.2X19X2WASHER,8.2X19X2
-
92022A92022-1618 WASHER,23X32X2.3WASHER,23X32X2.3
-
9203992039-3763 RIVET,3.2X8RIVET,3.2X8
-
9204392043-0716 PIN,12.4X72.4PIN,12.4X72.4
-
9207192071-0763 GROMMET,7.5X14X11GROMMET,7.5X14X11
-
9207592075-1882 DAMPERDAMPER
-
9215292152-1799 COLLAR,6.8X10X9.3COLLAR,6.8X10X9.3
-
130130BA0614 BOLT-FLANGED,6X14BOLT-FLANGED,6X14
-
130A130BA0812 BOLT-FLANGED,8X12BOLT-FLANGED,8X12
-
130B130BA0820 BOLT-FLANGED,8X20BOLT-FLANGED,8X20
-
130C130CA0616 BOLT-FLANGED,6X16BOLT-FLANGED,6X16
-
220220AB0610 SCREW-PAN-CROSS,6X10SCREW-PAN-CROSS,6X10
-
482482EA0100 CIRCLIP-TYPE-E,10MMCIRCLIP-TYPE-E,10MM
-
550550AA3030 PIN-COTTER,3.0X30PIN-COTTER,3.0X30
-
554554DA1200 PIN-SNAP,12MMPIN-SNAP,12MM
-
92152A92152-2128 COLLARCOLLAR
-
9215492154-0974 BOLT,FLANGED,5X4.5BOLT,FLANGED,5X4.5
-
92154A92154-1356 BOLT,FLANGED,6X22BOLT,FLANGED,6X22
-
9216192161-0590 DAMPERDAMPER
-
92161A92161-1615 DAMPERDAMPER
-
92161B92161-1634 DAMPER,12.5X20X24DAMPER,12.5X20X24
-
92161C92161-1656 DAMPERDAMPER
-
92161D92161-1708 DAMPER,17X6DAMPER,17X6
-
92161E92161-1775 DAMPER,10X40X10DAMPER,10X40X10
-
9217292172-0284 SCREW,6X16SCREW,6X16
-
92172A92172-0711 SCREW,6X16SCREW,6X16
-
92172B92172-0739 SCREW,TAPPING,6X16SCREW,TAPPING,6X16
-
9217392173-1213 CLAMP,FUEL PIPECLAMP,FUEL PIPE
-
9220092200-1543 WASHER,6.5X16X2.0WASHER,6.5X16X2.0
-
92200A92200-1769 WASHER,6.5X16X0.5WASHER,6.5X16X0.5
