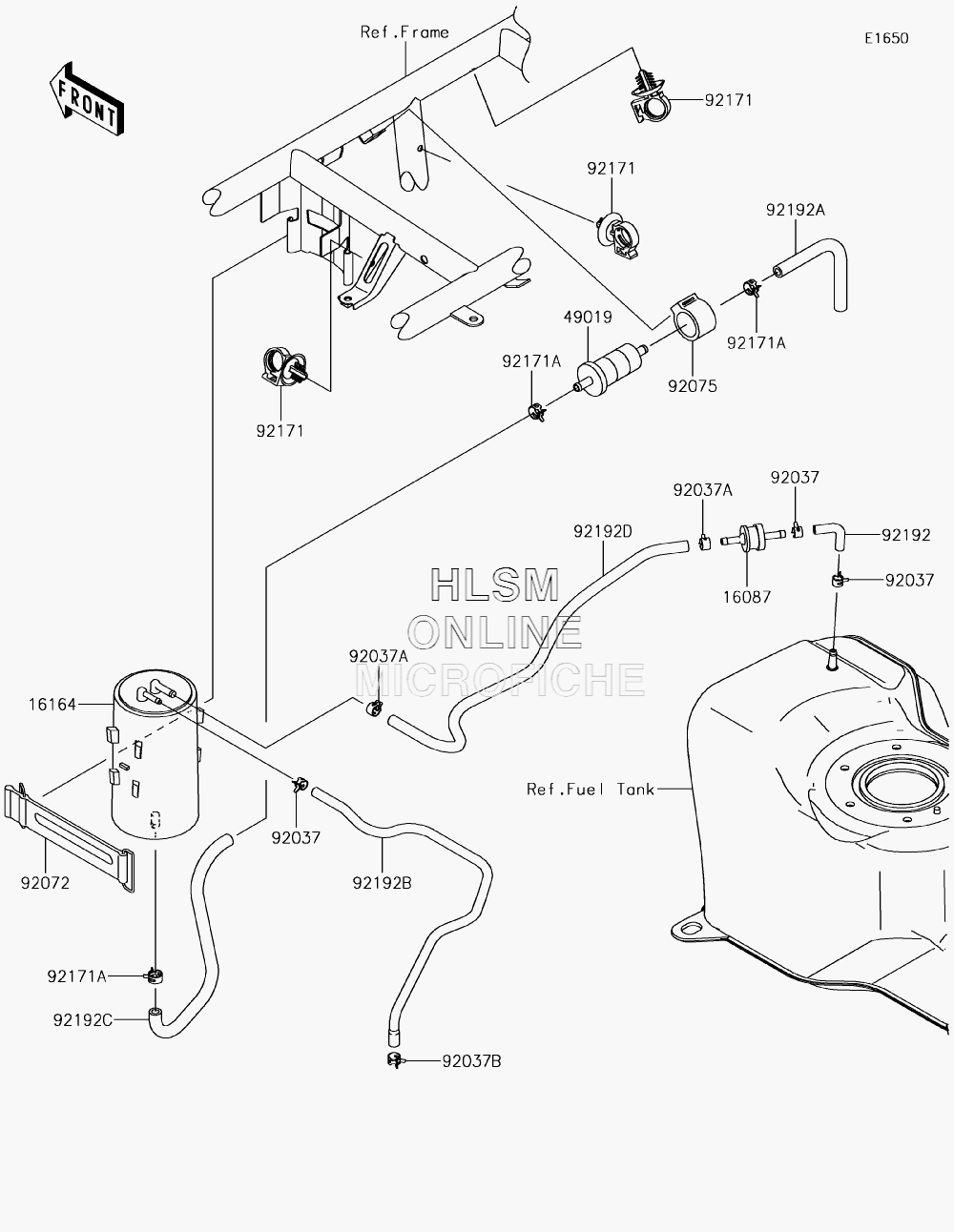

FUEL EVAPORATIVE SYSTEM для Kawasaki MULE SX 4X4 XC SE (KAF400MHS) - 2017 года выпуска
-
№АртикулНазвание
-
1608716087-0008 VALVE-CHECKVALVE-CHECK
-
1616416164-0013 CANISTERCANISTER
-
4901949019-1055 FILTER-FUELFILTER-FUEL
-
9203792037-1461 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1505 CLAMP, TUBECLAMP, TUBE
-
92037B92037-2113 CLAMPCLAMP
-
9207292072-1306 BAND, L=168BAND, L=168
-
9207592075-1853 DAMPER, FUEL FILTERDAMPER, FUEL FILTER
-
9217192171-0453 CLAMPCLAMP
-
92171A92171-0515 CLAMPCLAMP
-
9219292192-0067 TUBE, FUEL TANK-CHECK VALVETUBE, FUEL TANK-CHECK VALVE
-
92192A92192-0609 TUBE, FILTER-AIRTUBE, FILTER-AIR
-
92192B92192-1027 TUBE, CANISTER-DUCTTUBE, CANISTER-DUCT
-
92192C92192-1639 TUBE, CANISTER-FILTERTUBE, CANISTER-FILTER
-
92192D92192-1641 TUBE, VALVE-CANISTERTUBE, VALVE-CANISTER
