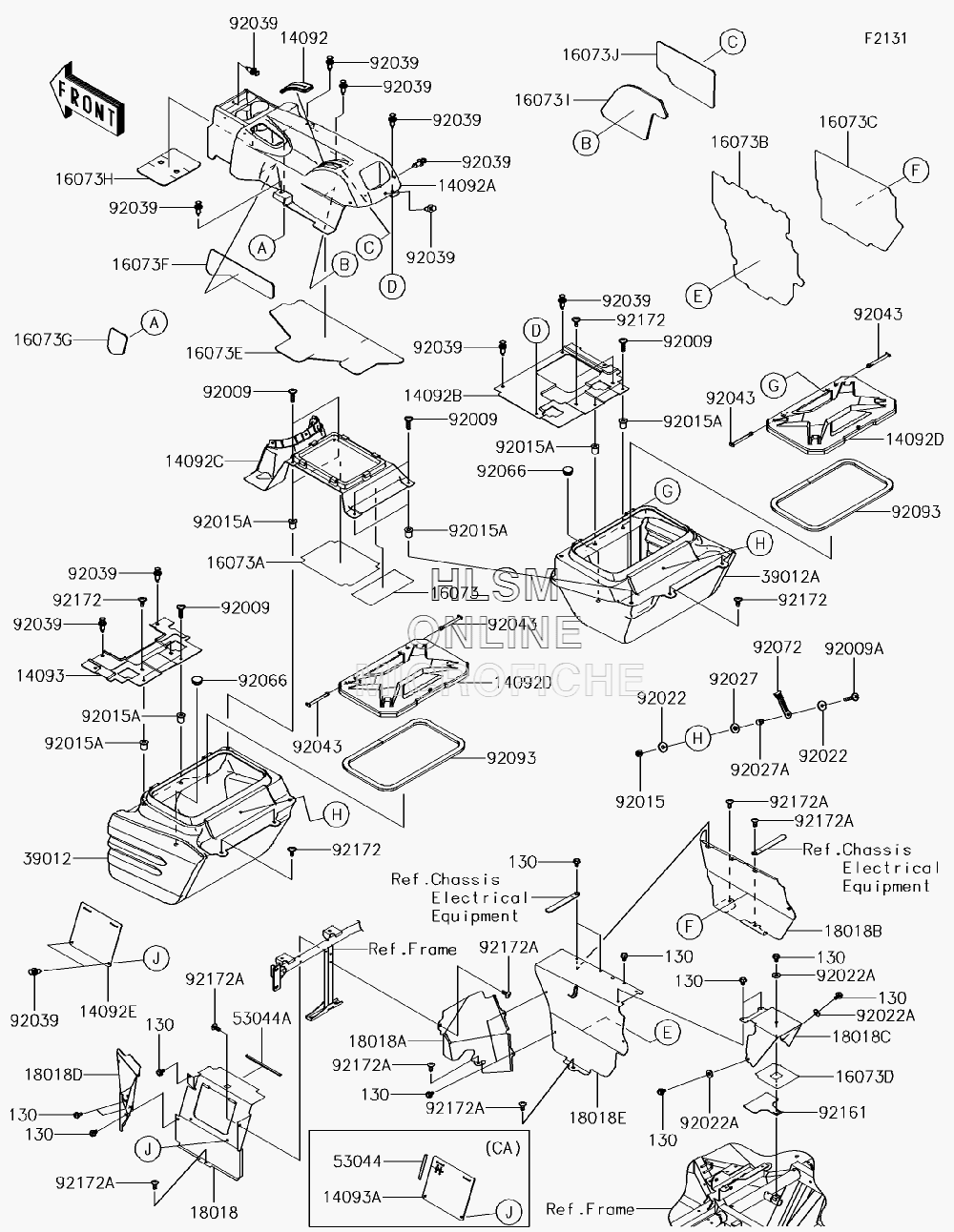

FRAME FITTINGS (REAR) для Kawasaki TERYX LE (KRF800GHF) - 2017 года выпуска
-
№АртикулНазвание
-
130130AA0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
1409214092-0791 COVER, CENTER CONSOLE, TOPCOVER, CENTER CONSOLE, TOP
-
14092A14092-1056 COVER, CENTER CONSOLECOVER, CENTER CONSOLE
-
14092B14092-1070 COVER, REAR SIDE, RIGHT HANDCOVER, REAR SIDE, RIGHT HAND
-
14092C14092-1071 COVER, REAR CONSOLECOVER, REAR CONSOLE
-
14092D14092-1072 COVER, REAR STORAGECOVER, REAR STORAGE
-
14092E14092-1136 COVER, MAINTENANCECOVER, MAINTENANCE
-
1409314093-0063 COVER, REAR SIDE, LEFT HANDCOVER, REAR SIDE, LEFT HAND
-
1607316073-0791 INSULATOR, REAR, 115X255INSULATOR, REAR, 115X255
-
16073A16073-0792 INSULATOR, FRONT, 225X290INSULATOR, FRONT, 225X290
-
16073B16073-0795 INSULATOR, REAR TUNNEL, LEFT HANDINSULATOR, REAR TUNNEL, LEFT HAND
-
16073C16073-0796 INSULATOR, REAR TUNNEL, RIGHT HANDINSULATOR, REAR TUNNEL, RIGHT HAND
-
16073D16073-0797 INSULATOR, REAR TUNNEL, REARINSULATOR, REAR TUNNEL, REAR
-
16073E16073-0800 INSULATOR, CENTER CONSOLEINSULATOR, CENTER CONSOLE
-
16073F16073-0801 INSULATOR, CENTER CONSOLEINSULATOR, CENTER CONSOLE
-
16073G16073-0802 INSULATOR, CENTER CONSOLEINSULATOR, CENTER CONSOLE
-
16073H16073-0803 INSULATOR, CENTER CONSOLEINSULATOR, CENTER CONSOLE
-
16073I16073-0804 INSULATOR, CENTER CONSOLEINSULATOR, CENTER CONSOLE
-
16073J16073-0805 INSULATOR, CENTER CONSOLEINSULATOR, CENTER CONSOLE
-
1801818018-0042 PLATE-HEAT GUARD, LEFT HAND UD SEAT, FRONTPLATE-HEAT GUARD, LEFT HAND UD SEAT, FRONT
-
18018A18018-0043 PLATE-HEAT GUARD, LEFT HAND UD SEAT, REARPLATE-HEAT GUARD, LEFT HAND UD SEAT, REAR
-
18018B18018-0045 PLATE-HEAT GUARD, REAR TUNNEL, RIGHT HANDPLATE-HEAT GUARD, REAR TUNNEL, RIGHT HAND
-
18018C18018-0047 PLATE-HEAT GUARD, REAR TUNNEL, REARPLATE-HEAT GUARD, REAR TUNNEL, REAR
-
18018D18018-0596 PLATE-HEAT GUARD, DRIVERPLATE-HEAT GUARD, DRIVER
-
18018E18018-0599 PLATE-HEAT GUARD, REAR TUNNEL, LEFT HANDPLATE-HEAT GUARD, REAR TUNNEL, LEFT HAND
-
3901239012-0035 CASE-STORAGE, REAR, LEFT HANDCASE-STORAGE, REAR, LEFT HAND
-
39012A39012-0036 CASE-STORAGE, REAR, RIGHT HANDCASE-STORAGE, REAR, RIGHT HAND
-
53044A53044-0573 TRIM, L=200TRIM, L=200
-
9200992009-1465 SCREW, 6X25SCREW, 6X25
-
92009A92009-1672 SCREW, 6X35SCREW, 6X35
-
9201592015-1339 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92015A92015-1700 NUTNUT
-
9202292022-125 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
92022A92022-2247 WASHERWASHER
-
9202792027-1260 COLLAR, L=5.1COLLAR, L=5.1
-
92027A92027-162 COLLAR, 6.8X10X12COLLAR, 6.8X10X12
-
9203992039-0776 RIVETRIVET
-
9204392043-0852 PINPIN
-
9206692066-1306 PLUGPLUG
-
9207292072-0144 BANDBAND
-
9209392093-0605 SEALSEAL
-
9216192161-1577 DAMPER, REAR TUNNELDAMPER, REAR TUNNEL
-
9217292172-0711 SCREW, 6X16SCREW, 6X16
-
92172A92172-0739 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
