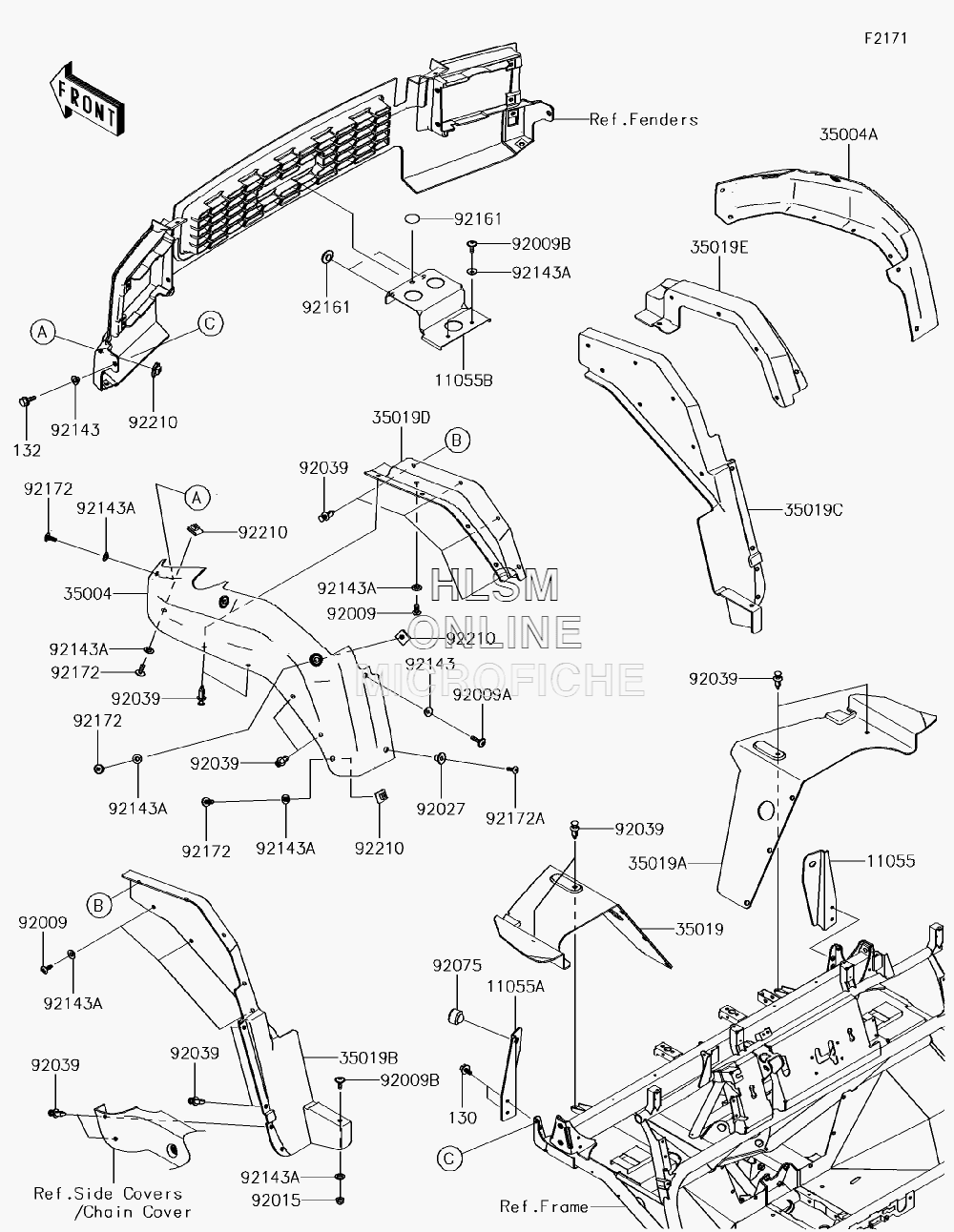

FENDER - FRONT для Kawasaki MULE 4010 4X4 (KAF620MJF) - 2018 года выпуска
-
№АртикулНазвание
-
1105511055-0917 BRACKETBRACKET
-
11055A11055-0918 BRACKETBRACKET
-
11055B11055-0954 BRACKETBRACKET
-
130130BA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
132132BA0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
3500435004-0123-6Z FENDER-FRONT, SIDE, LEFT HAND, (F.BLACK) (FOR ALL COLORS)FENDER-FRONT, SIDE, LEFT HAND, (F.BLACK) (FOR ALL COLORS)
-
35004A35004-0124-6Z FENDER-FRONT, SIDE, RIGHT HAND, (F.BLACK) (FOR ALL COLORS)FENDER-FRONT, SIDE, RIGHT HAND, (F.BLACK) (FOR ALL COLORS)
-
3501935019-0062 FLAP, FRONT, LEFT HANDFLAP, FRONT, LEFT HAND
-
35019A35019-0063 FLAP, FRONT, RIGHT HANDFLAP, FRONT, RIGHT HAND
-
35019B35019-0064 FLAP, SIDE, REAR, LEFT HANDFLAP, SIDE, REAR, LEFT HAND
-
35019C35019-0065 FLAP, SIDE, REAR, RIGHT HANDFLAP, SIDE, REAR, RIGHT HAND
-
35019D35019-0068 FLAP, SIDE, MIDDLE, LEFT HANDFLAP, SIDE, MIDDLE, LEFT HAND
-
35019E35019-0069 FLAP, SIDE, MIDDLE, RIGHT HANDFLAP, SIDE, MIDDLE, RIGHT HAND
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1256 SCREW, 6X22, (BLACK)SCREW, 6X22, (BLACK)
-
92009B92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202792027-1767 COLLARCOLLAR
-
9203992039-0776 RIVETRIVET
-
9207592075-015 DAMPERDAMPER
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9216192161-1200 DAMPER, RUBBERDAMPER, RUBBER
-
9217292172-0488 SCREW, TAPPING, 6X20SCREW, TAPPING, 6X20
-
92172A92172-1072 SCREWSCREW
-
9221092210-0624 NUT, LEAF SPRING, 6MMNUT, LEAF SPRING, 6MM
