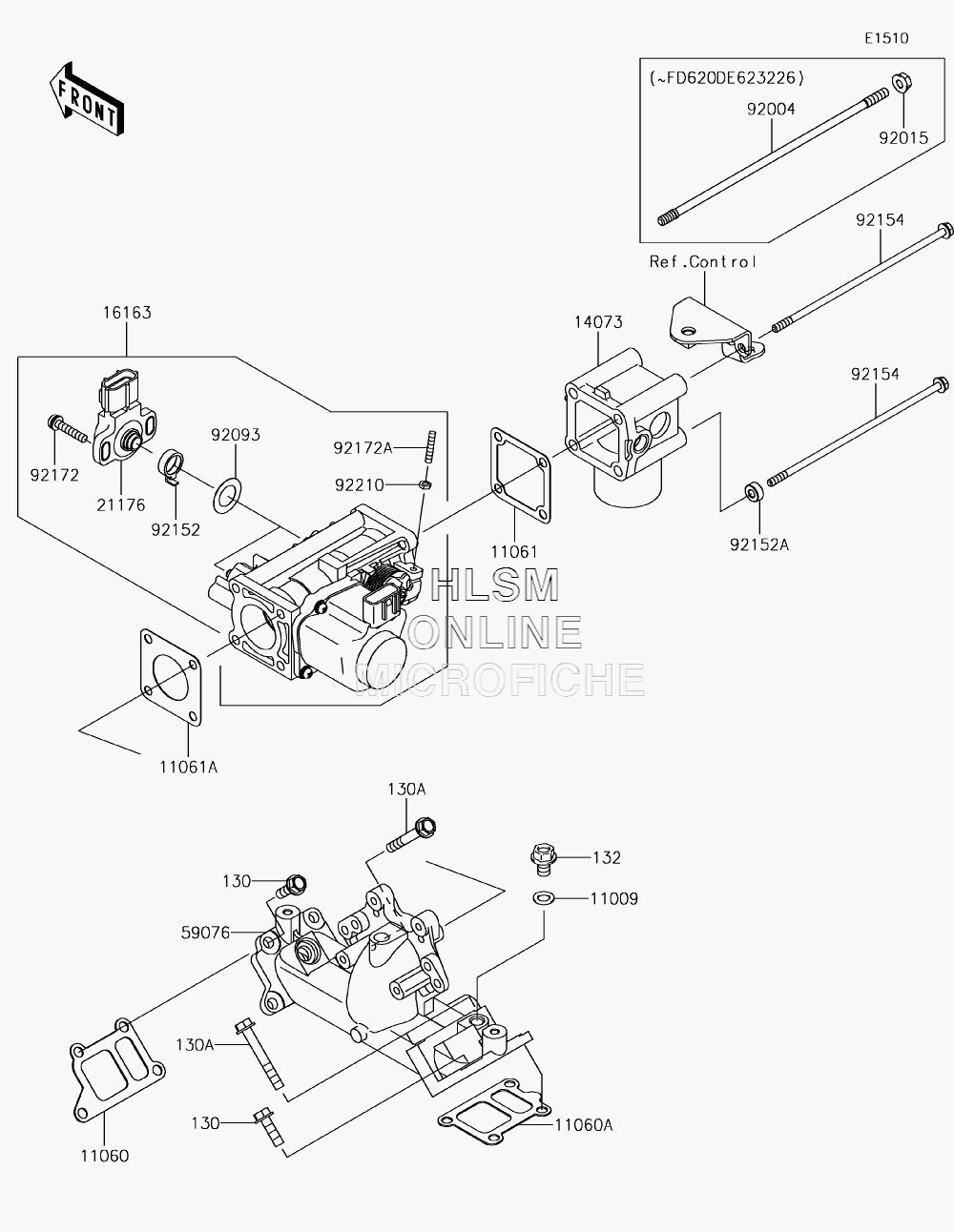

THROTTLE BODY для Kawasaki MULE 4010 TRANS4x4 (KAF620RJF) - 2018 года выпуска
-
№АртикулНазвание
-
1100911009-1344 GASKET, 8.2X14X1.0GASKET, 8.2X14X1.0
-
1106011060-2087 GASKET, INTAKE MANIFOLDGASKET, INTAKE MANIFOLD
-
11060A11060-2088 GASKET, INTAKE MANIFOLDGASKET, INTAKE MANIFOLD
-
1106111061-0861 GASKETGASKET
-
11061A11061-2179 GASKETGASKET
-
130130BA0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
130A130CA0645 BOLT-FLANGED, 6X45BOLT-FLANGED, 6X45
-
132132BB0812 BOLT-FLANGED-SMALL, 8X12BOLT-FLANGED-SMALL, 8X12
-
1407314073-0780 DUCTDUCT
-
1616316163-0793 THROTTLE-ASSYTHROTTLE-ASSY
-
2117621176-2112 SENSORSENSOR
-
5907659076-0718 MANIFOLD-INTAKEMANIFOLD-INTAKE
-
9209392093-2133 SEALSEAL
-
9215292152-2093 COLLARCOLLAR
-
92152A92152-2333 COLLAR, LOWER SIDE (FD620DE623227 AND ABOVE)COLLAR, LOWER SIDE (FD620DE623227 AND ABOVE)
-
9215492154-2653 BOLT, FLANGED, 6X195 (FD620DE623227 AND ABOVE)BOLT, FLANGED, 6X195 (FD620DE623227 AND ABOVE)
-
9217292172-0254 SCREWSCREW
-
92172A92172-2106 SCREWSCREW
-
9221092210-2120 NUTNUT
