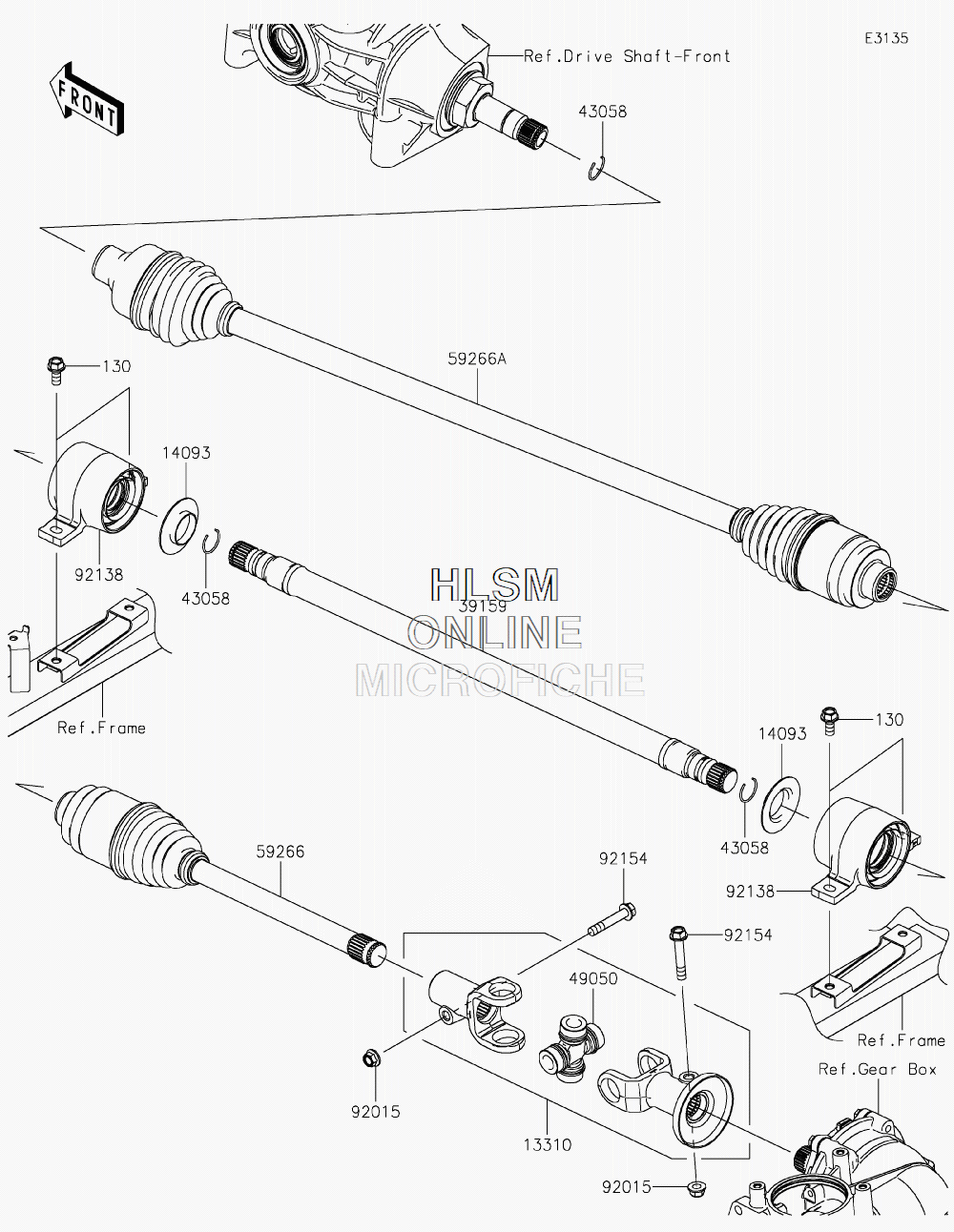

DRIVE SHAFT (PROPELLER) для Kawasaki MULE PRO-DXT (KAF1000AJF) - 2018 года выпуска
-
№АртикулНазвание
-
130130BA0818 BOLT-FLANGED, 8X18BOLT-FLANGED, 8X18
-
1331013310-0038 SHAFT-ASSYSHAFT-ASSY
-
1409314093-0006 COVER, SIDE RIPCOVER, SIDE RIP
-
3915939159-0045 SHAFT-DRIVESHAFT-DRIVE
-
4305843058-0018 RINGRING
-
4905049050-0034 SPIDERSPIDER
-
5926659266-0716 JOINT-BALL, T/M SIDEJOINT-BALL, T/M SIDE
-
59266A59266-0717 JOINT-BALL, FRONT DIFF SIDEJOINT-BALL, FRONT DIFF SIDE
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
9213892138-0002 BEARING-COMPBEARING-COMP
-
9215492154-1365 BOLT, FLANGED, 8X46BOLT, FLANGED, 8X46
