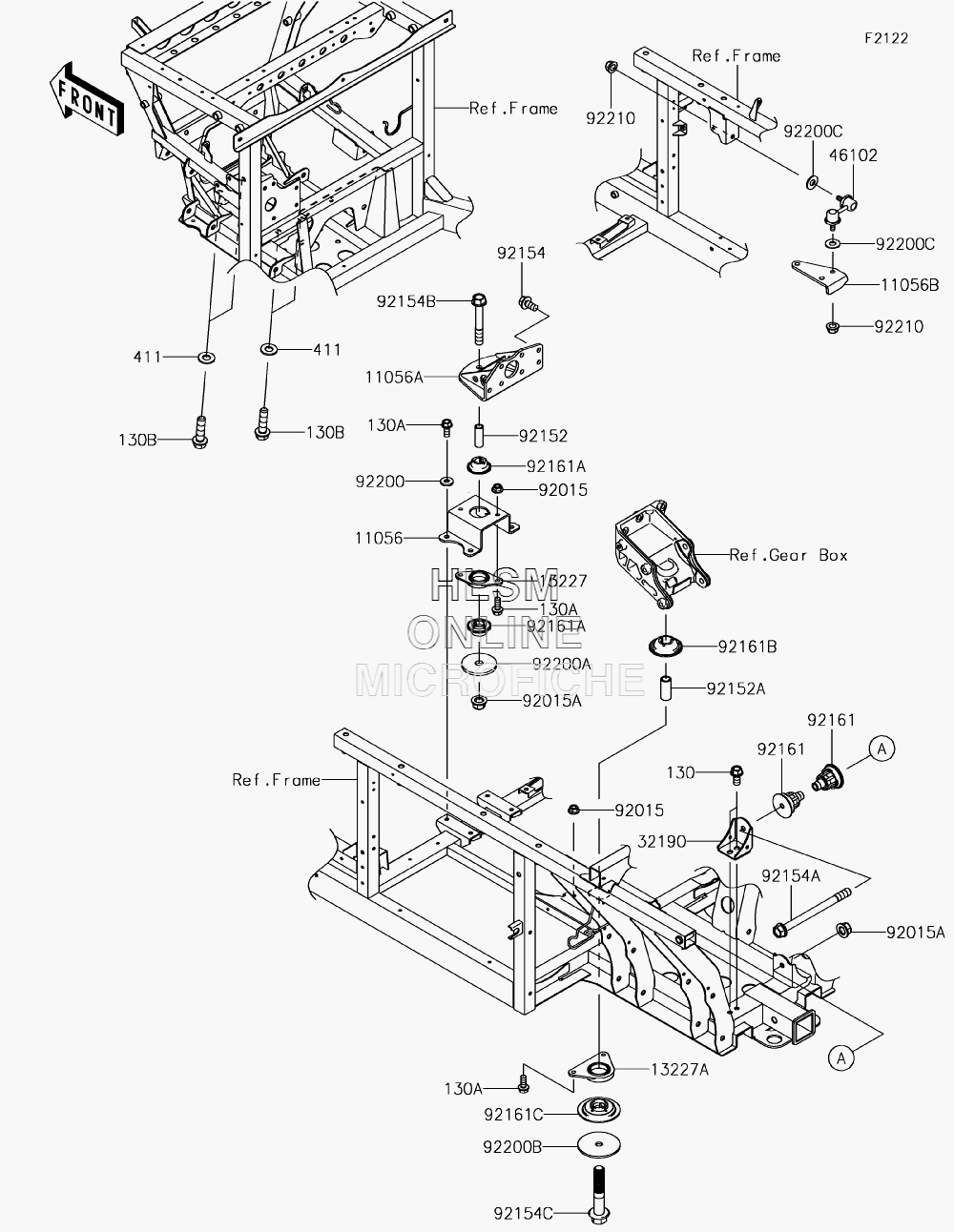

ENGINE MOUNT для Kawasaki MULE PRO-FX EPS (KAF820FJF) - 2018 года выпуска
-
№АртикулНазвание
-
1105611056-2867 BRACKETBRACKET
-
11056A11056-2868 BRACKETBRACKET
-
11056B11056-2869 BRACKETBRACKET
-
130130BA1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
130A130CA0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130B130CA1245 BOLT-FLANGED, 12X45BOLT-FLANGED, 12X45
-
1322713227-0031 HOUSINGHOUSING
-
13227A13227-0032 HOUSINGHOUSING
-
3219032190-0662 BRACKET-ENGINEBRACKET-ENGINE
-
411411AA1200 WASHER-PLAIN, 12MMWASHER-PLAIN, 12MM
-
4610246102-0100 ROD, STABILIZER, RIGHT HANDROD, STABILIZER, RIGHT HAND
-
9201592015-1397 NUT, LOCK, FLANGED, 8MMNUT, LOCK, FLANGED, 8MM
-
92015A92015-1433 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
-
9215292152-1802 COLLAR, 13X19.1X54COLLAR, 13X19.1X54
-
92152A92152-2127 COLLAR, 17X23.8X54.5COLLAR, 17X23.8X54.5
-
9215492154-1321 BOLT, FLANGED, 10X20BOLT, FLANGED, 10X20
-
92154A92154-1322 BOLT, FLANGED, 12X150BOLT, FLANGED, 12X150
-
92154B92154-1419 BOLT, FLANGED, 12X80BOLT, FLANGED, 12X80
-
92154C92154-1763 BOLT, FLANGED, 16X86BOLT, FLANGED, 16X86
-
9216192161-1616 DAMPERDAMPER
-
92161A92161-1617 DAMPERDAMPER
-
92161B92161-1618 DAMPERDAMPER
-
92161C92161-1619 DAMPERDAMPER
-
9220092200-0205 WASHER, 8.2X20.0X2.5WASHER, 8.2X20.0X2.5
-
92200A92200-0913 WASHER, 12.5X55X4.76WASHER, 12.5X55X4.76
-
92200B92200-1747 WASHER, 16.5X100X4.76WASHER, 16.5X100X4.76
-
92200C92200-2009 WASHER, 10.3X23X1.6WASHER, 10.3X23X1.6
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
