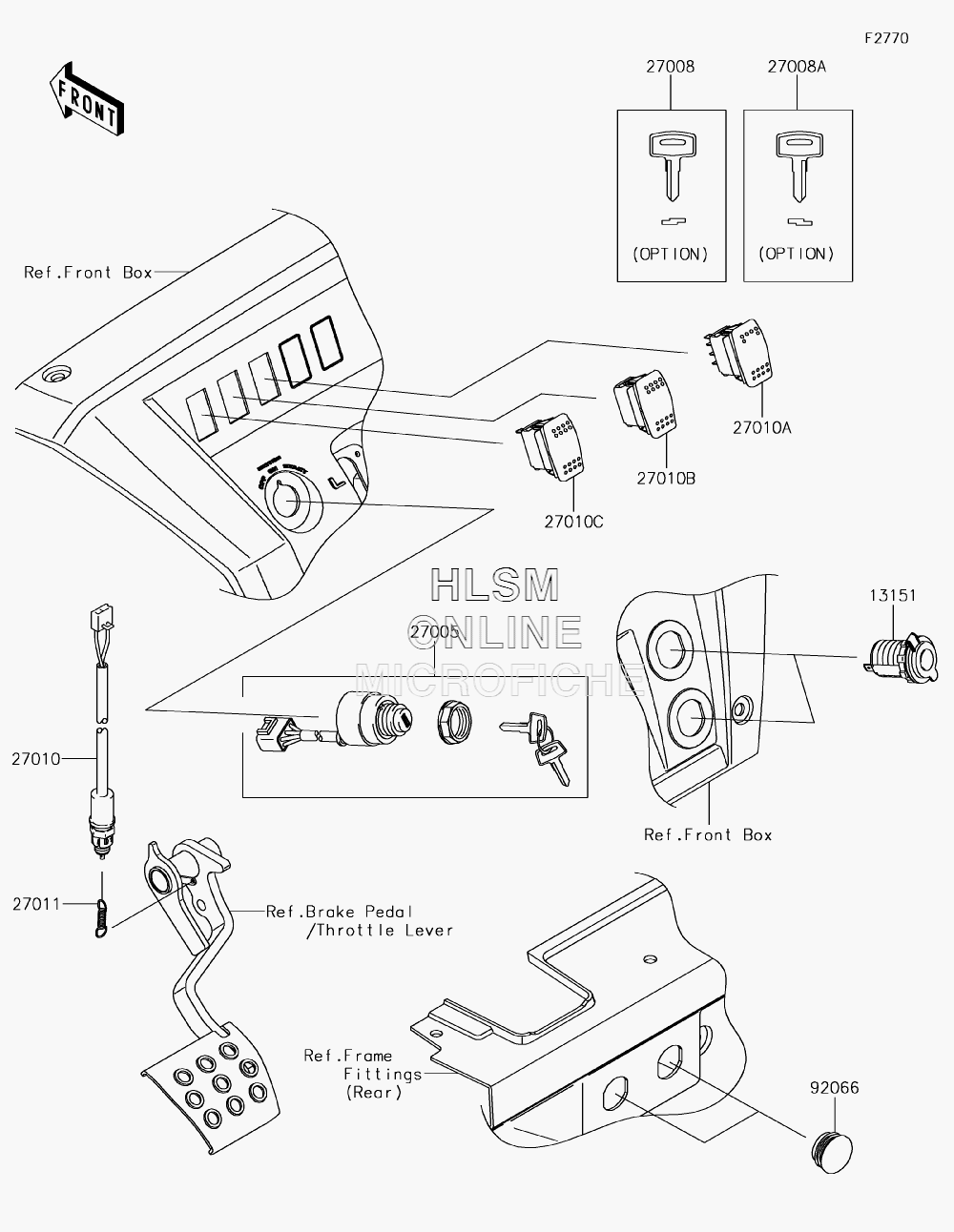

IGNITION SWITCH для Kawasaki MULE PRO-FXT EPS (KAF820BJF) - 2018 года выпуска
-
№АртикулНазвание
-
1315113151-0556 SWITCH-COMP, OUTLET, 12VSWITCH-COMP, OUTLET, 12V
-
2700527005-0643 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-1153 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
27008A27008-1157 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-0724 SWITCH, BRAKESWITCH, BRAKE
-
27010A27010-0750 SWITCH, HEAD LAMPSWITCH, HEAD LAMP
-
27010B27010-0751 SWITCH, 2WD/4WDSWITCH, 2WD/4WD
-
27010C27010-0810 SWITCH, DIFF LOCKSWITCH, DIFF LOCK
-
2701127011-006 SPRING, BRAKE LAMP SWITCHSPRING, BRAKE LAMP SWITCH
-
9206692066-0794 PLUG, D.C. SOCKETPLUG, D.C. SOCKET
