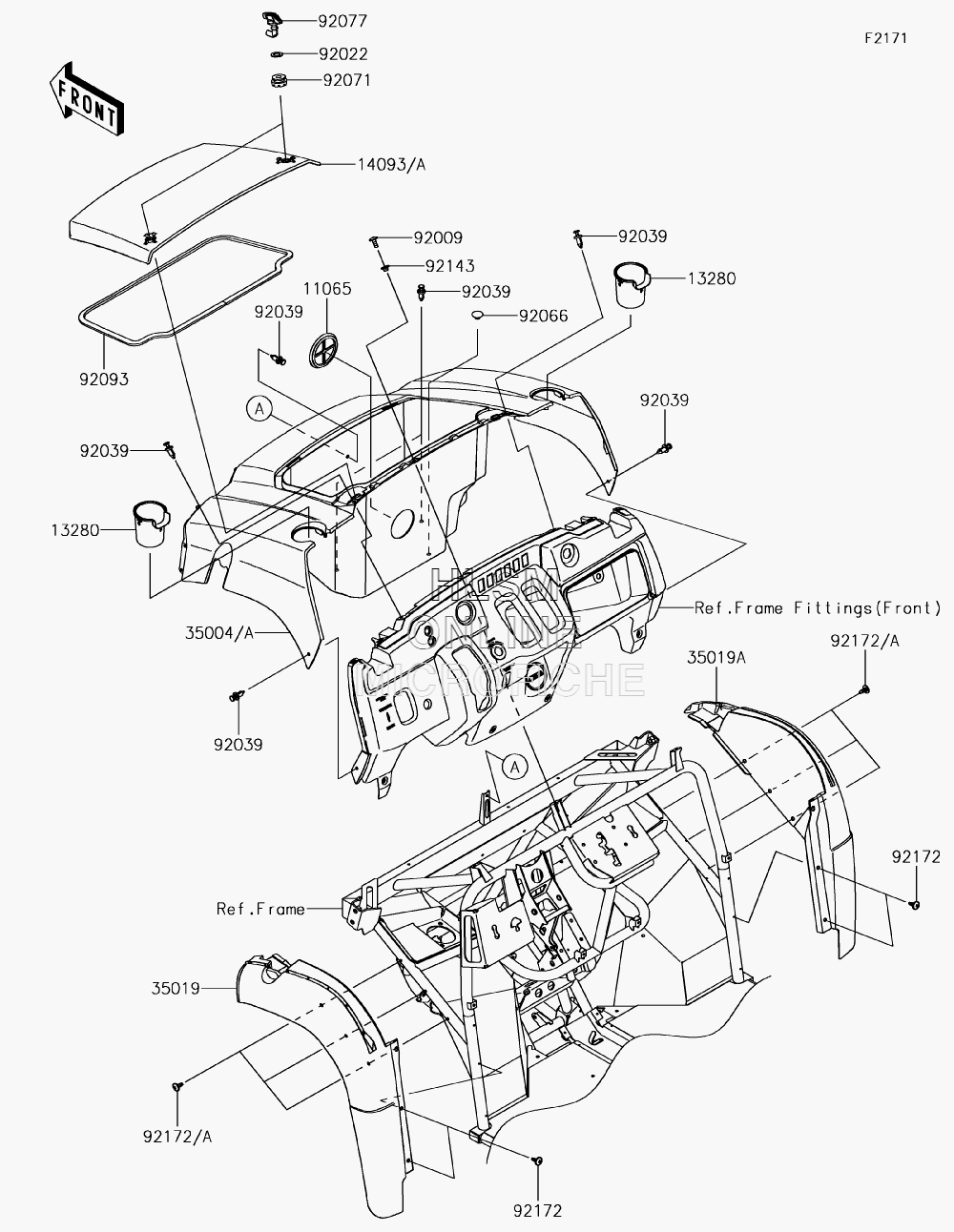

FENDER - FRONT для Kawasaki MULE SX 4X4 (KAF400HJF) - 2018 года выпуска
-
№АртикулНазвание
-
1106511065-1053-6Z CAP, (F.BLACK)CAP, (F.BLACK)
-
1328013280-0879 HOLDERHOLDER
-
1409314093-0390-16L COVER, HOOD, (D.R.RED) (FOR 16M)COVER, HOOD, (D.R.RED) (FOR 16M)
-
14093A14093-0390-42S COVER, HOOD, (T.GREEN) (FOR 42T)COVER, HOOD, (T.GREEN) (FOR 42T)
-
3500435004-0355-16L FENDER-FRONT, (D.R.RED) (FOR 16M)FENDER-FRONT, (D.R.RED) (FOR 16M)
-
35004A35004-0355-42S FENDER-FRONT, (T.GREEN) (FOR 42T)FENDER-FRONT, (T.GREEN) (FOR 42T)
-
3501935019-0608 FLAP, LEFT HANDFLAP, LEFT HAND
-
35019A35019-0609 FLAP, RIGHT HANDFLAP, RIGHT HAND
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
9202292022-072 WASHER, 12.5X22X1.2WASHER, 12.5X22X1.2
-
9203992039-0776 RIVETRIVET
-
9206692066-1485 PLUGPLUG
-
9207192071-0746 GROMMETGROMMET
-
9207792077-0033 KNOBKNOB
-
9209392093-0688 SEAL, 6X15X1755SEAL, 6X15X1755
-
9214392143-1057 COLLARCOLLAR
-
9217292172-0711 SCREW, 6X16SCREW, 6X16
