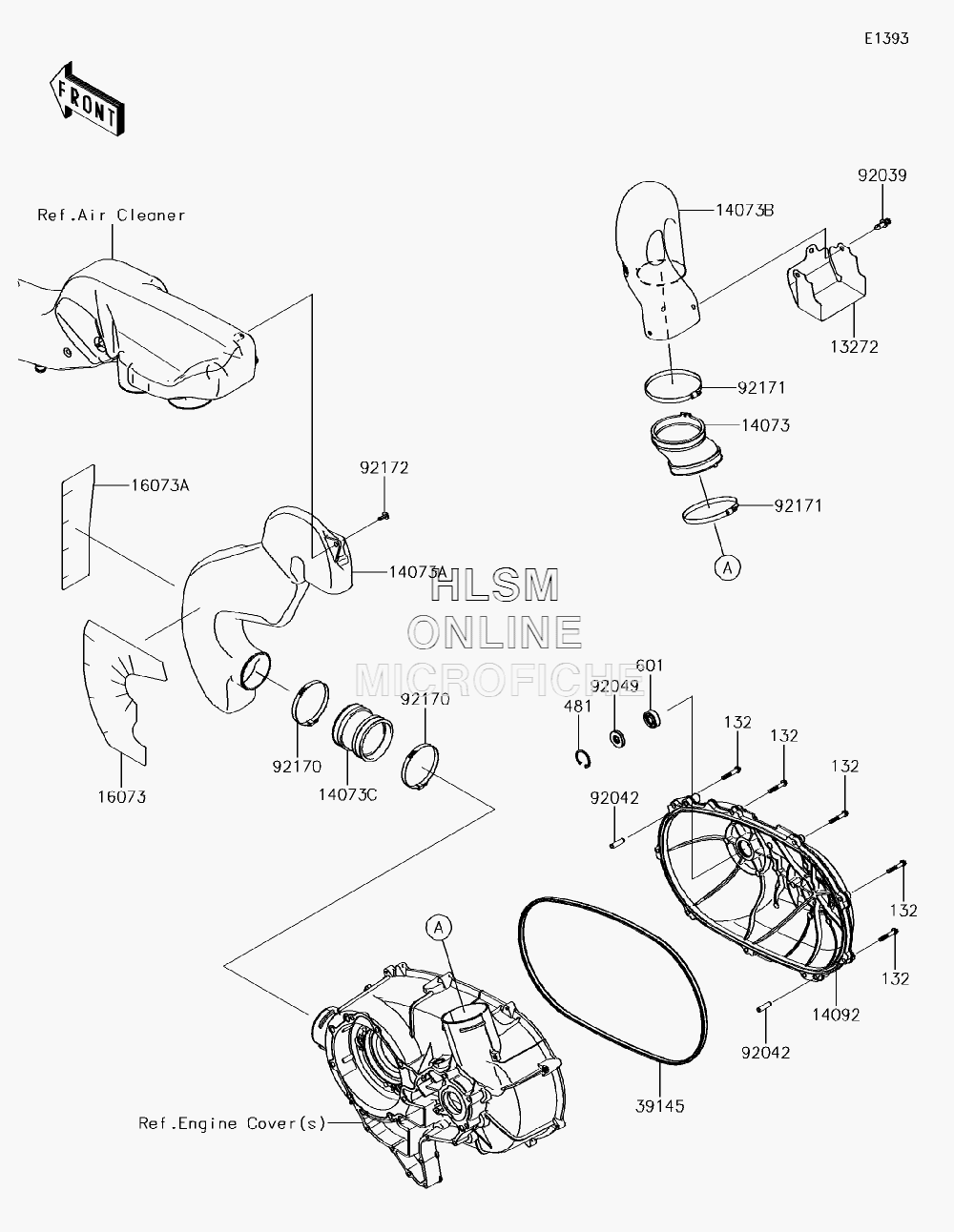

CONVERTER COVER для Kawasaki TERYX LE (KRF800GJF) - 2018 года выпуска
-
№АртикулНазвание
-
132132BA0635 BOLT-FLANGED-SMALL, 6X35BOLT-FLANGED-SMALL, 6X35
-
1327213272-2060 PLATEPLATE
-
1407314073-0307 DUCT, JOINTDUCT, JOINT
-
14073A14073-0760 DUCT, INTAKEDUCT, INTAKE
-
14073B14073-0839 DUCT, EXHAUSTDUCT, EXHAUST
-
14073C14073-1805 DUCT, JOINTDUCT, JOINT
-
1409214092-0266 COVER, CVTCOVER, CVT
-
1607316073-0843 INSULATORINSULATOR
-
16073A16073-0844 INSULATORINSULATOR
-
3914539145-0043 TRIM-SEAL, CVT COVERTRIM-SEAL, CVT COVER
-
481481J3200 CIRCLIP-TYPE-C, 32MMCIRCLIP-TYPE-C, 32MM
-
601601A6201 BEARING-BALLBEARING-BALL
-
9203992039-1229 RIVETRIVET
-
9204292042-050 PIN, DOWEL, 8X28PIN, DOWEL, 8X28
-
9204992049-0167 SEAL-OIL, 12X32X5.8SEAL-OIL, 12X32X5.8
-
9217092170-1763 CLAMPCLAMP
-
9217192171-1383 CLAMPCLAMP
-
9217292172-0297 SCREWSCREW
