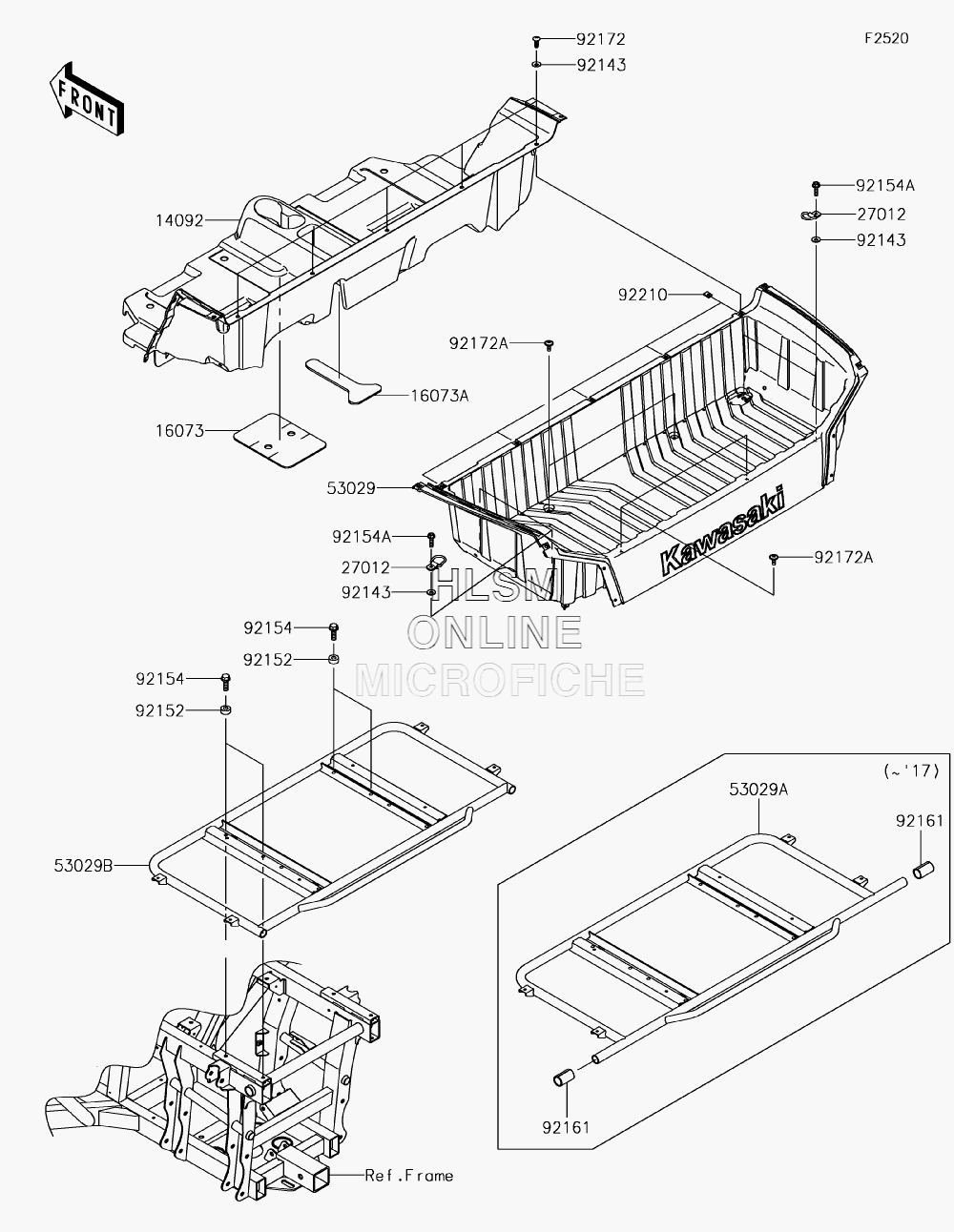

CARRIER(S) для Kawasaki TERYX4 CAMO (KRT800HJF) - 2018 года выпуска
-
№АртикулНазвание
-
1409214092-1057 COVER, REAR CONSOLECOVER, REAR CONSOLE
-
1607316073-0803 INSULATOR, CENTER CONSOLEINSULATOR, CENTER CONSOLE
-
16073A16073-0842 INSULATORINSULATOR
-
2701227012-0783 HOOKHOOK
-
5302953029-0309 CARRIERCARRIER
-
53029B53029-0352 CARRIERCARRIER
-
9214392143-1087 COLLARCOLLAR
-
9215292152-1553 COLLAR, 8.2X18X8COLLAR, 8.2X18X8
-
9215492154-1302 BOLT, FLANGED, 8X25BOLT, FLANGED, 8X25
-
92154A92154-1356 BOLT, FLANGED, 6X22BOLT, FLANGED, 6X22
-
9217292172-0488 SCREW, TAPPING, 6X20SCREW, TAPPING, 6X20
-
92172A92172-0711 SCREW, 6X16SCREW, 6X16
-
9221092210-0624 NUT, LEAF SPRING, 6MMNUT, LEAF SPRING, 6MM
