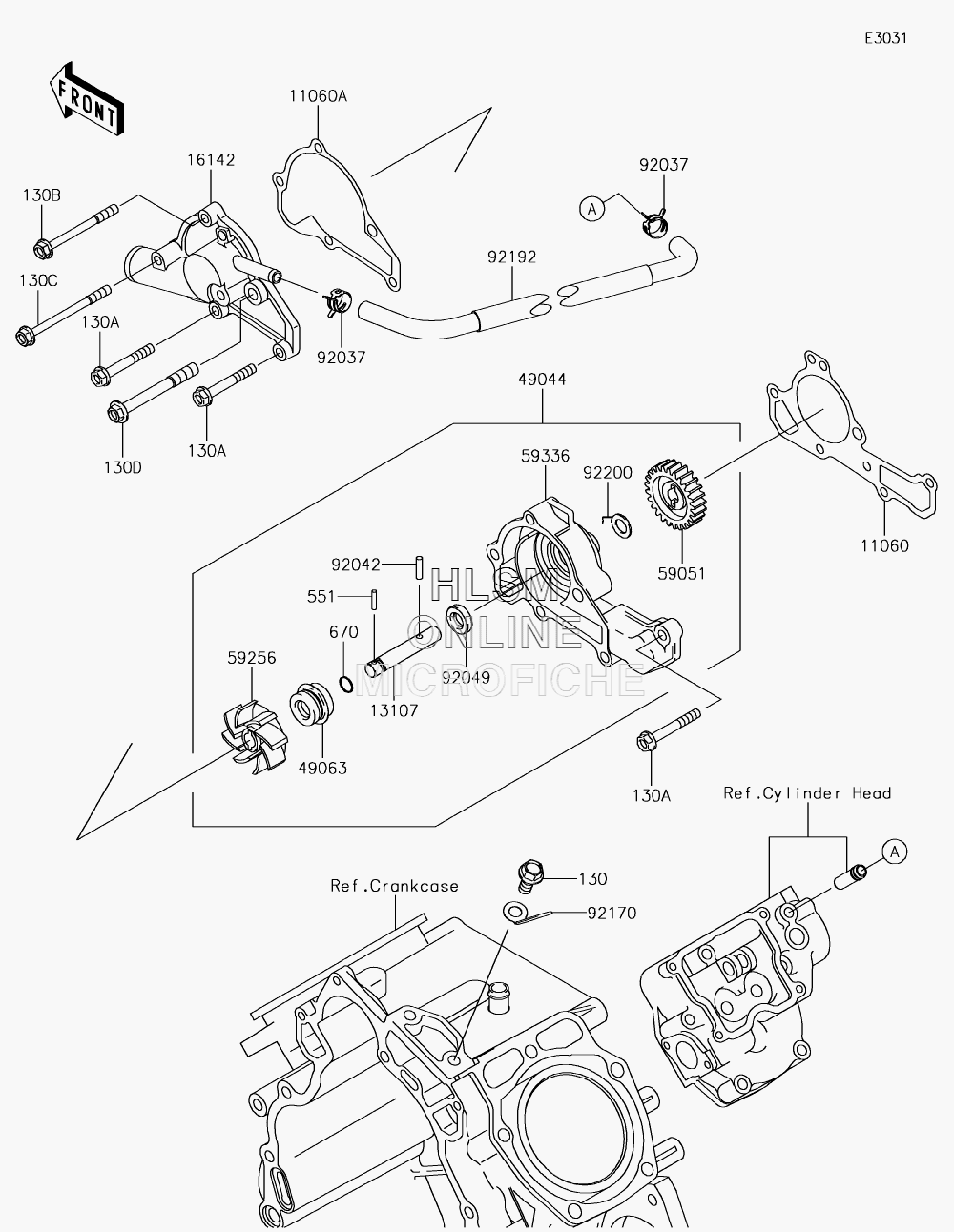

WATER PUMP для Kawasaki MULE 4000 (KAF620PKF) - 2019 года выпуска
-
№АртикулНазвание
-
1106011060-2450 GASKET, PUMP CASEGASKET, PUMP CASE
-
11060A11060-2451 GASKET, PUMP COVERGASKET, PUMP COVER
-
130130BA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
130A130CA0645 BOLT-FLANGED, 6X45BOLT-FLANGED, 6X45
-
130B130CA0665 BOLT-FLANGED, 6X65BOLT-FLANGED, 6X65
-
130C130CA0675 BOLT-FLANGED, 6X75BOLT-FLANGED, 6X75
-
130D130CA0870 BOLT-FLANGED, 8X70BOLT-FLANGED, 8X70
-
1310713107-2097 SHAFT, IMPELLERSHAFT, IMPELLER
-
1614216142-0729 COVER-PUMPCOVER-PUMP
-
4904449044-2066 PUMP-WATERPUMP-WATER
-
4906349063-0002 SEAL-MECHANICALSEAL-MECHANICAL
-
551551A0314 PIN-DOWEL, 3X14PIN-DOWEL, 3X14
-
5905159051-2113 GEAR-SPURGEAR-SPUR
-
5925659256-2057 IMPELLERIMPELLER
-
5933659336-2052 CASE-PUMPCASE-PUMP
-
670670B1507 O RING, 7MMO RING, 7MM
-
9203792037-1181 CLAMP, HOSE CLIPCLAMP, HOSE CLIP
-
9204292042-014 PIN, DOWEL, 4X15.8PIN, DOWEL, 4X15.8
-
9204992049-2111 SEAL-OILSEAL-OIL
-
9217092170-2060 CLAMPCLAMP
-
9219292192-2169 TUBETUBE
-
9220092200-2044 WASHERWASHER
