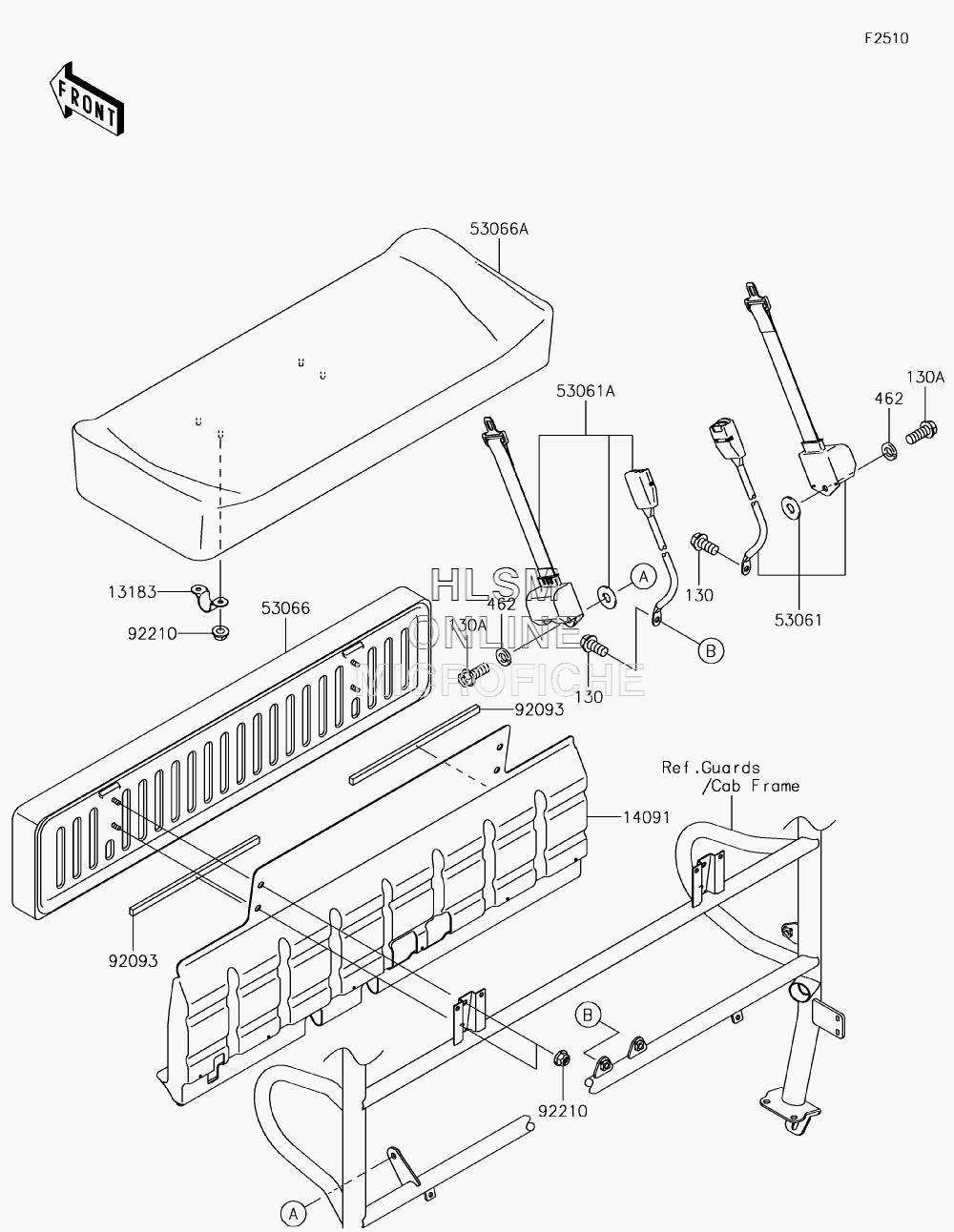

SEAT для Kawasaki MULE 4010 4X4 (KAF620MKF) - 2019 года выпуска
-
№АртикулНазвание
-
130130BA1220 BOLT-FLANGED, 12X20BOLT-FLANGED, 12X20
-
130A130BB1225 BOLT-FLANGED, 12X25BOLT-FLANGED, 12X25
-
1318313183-1400 PLATE, SEATPLATE, SEAT
-
1409114091-0529 COVER, SEAT BACKCOVER, SEAT BACK
-
462462DB1200 WASHER-SPRING, 12MMWASHER-SPRING, 12MM
-
5306153061-0315 BELT-SEAT, FRONT, RIGHT HANDBELT-SEAT, FRONT, RIGHT HAND
-
53061A53061-0316 BELT-SEAT, FRONT, LEFT HANDBELT-SEAT, FRONT, LEFT HAND
-
5306653066-0241-MA SEAT-ASSY, BACK, (BLACK)SEAT-ASSY, BACK, (BLACK)
-
53066A53066-0274-MA SEAT-ASSY, FRONT, LOWER, (BLACK)SEAT-ASSY, FRONT, LOWER, (BLACK)
-
9209392093-0024 SEAL, L=408SEAL, L=408
-
9221092210-0005 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
