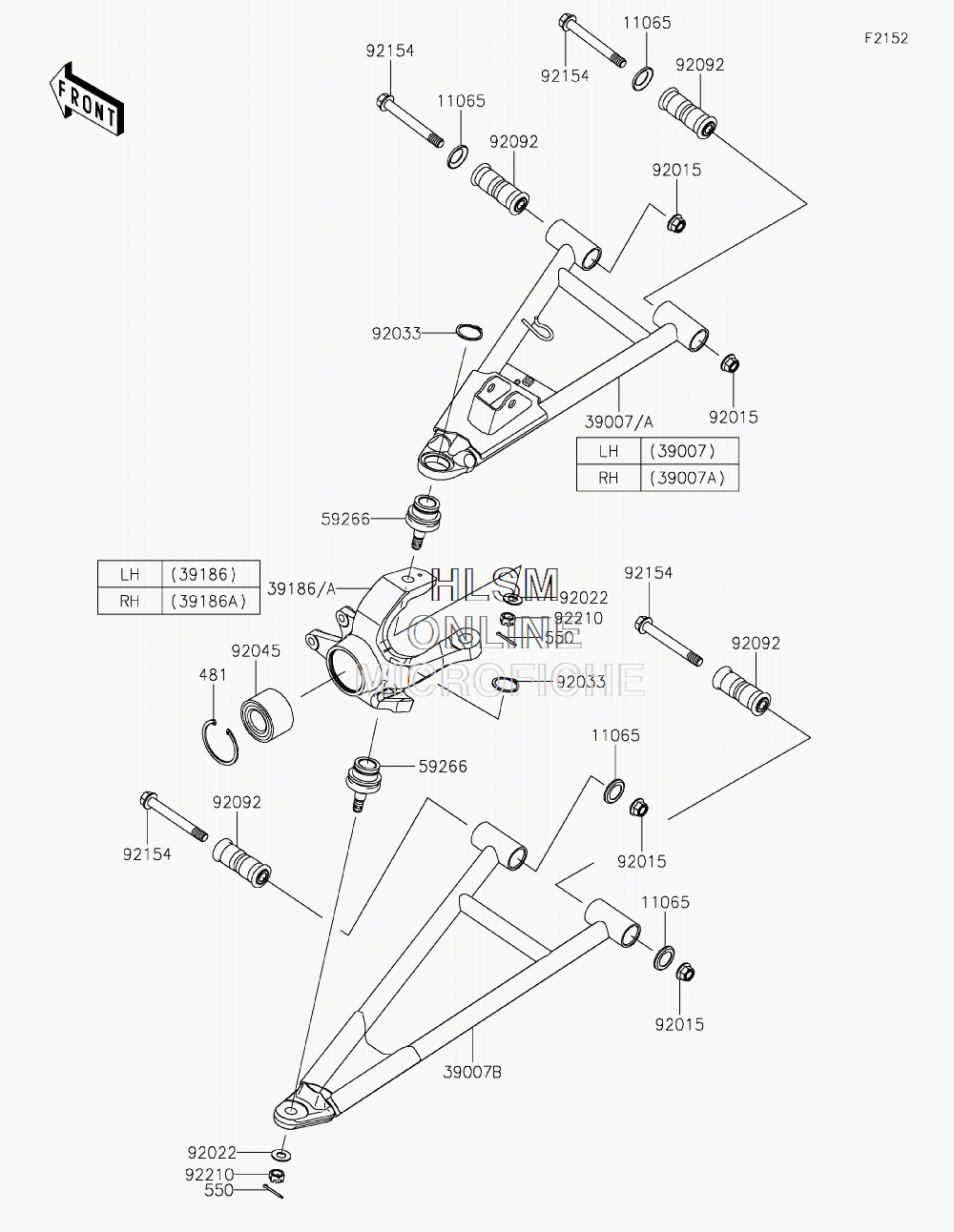

SUSPENSION - FRONT для Kawasaki MULE PRO-DX EPS LE (KAF1000FKF) - 2019 года выпуска
-
№АртикулНазвание
-
1106511065-0838 CAP, ARMCAP, ARM
-
3900739007-0377 ARM-SUSP, FRONT, UPPER, LEFT HANDARM-SUSP, FRONT, UPPER, LEFT HAND
-
39007A39007-0378 ARM-SUSP, FRONT, UPPER, RIGHT HANDARM-SUSP, FRONT, UPPER, RIGHT HAND
-
39007B39007-0383 ARM-SUSP, FRONT, LOWER, LEFT HAND & RIGHT HANDARM-SUSP, FRONT, LOWER, LEFT HAND & RIGHT HAND
-
3918639186-0319 KNUCKLE, FRONT, LEFT HANDKNUCKLE, FRONT, LEFT HAND
-
39186A39186-0320 KNUCKLE, FRONT, RIGHT HANDKNUCKLE, FRONT, RIGHT HAND
-
481481J6000 CIRCLIP-TYPE-CCIRCLIP-TYPE-C
-
550550AA3025 PIN-COTTER, 3.0X25PIN-COTTER, 3.0X25
-
5926659266-0711 JOINT-BALLJOINT-BALL
-
9201592015-1433 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
-
9202292022-1831 WASHERWASHER
-
9203392033-1262 RING-SNAP, C-TYPE, 32MMRING-SNAP, C-TYPE, 32MM
-
9204592045-0905 BEARING-BALL, 30X60X37BEARING-BALL, 30X60X37
-
9209292092-0028 BUSHING-RUBBER, 12X20X78BUSHING-RUBBER, 12X20X78
-
9215492154-1318 BOLT, FLANGED, 12X100BOLT, FLANGED, 12X100
-
9221092210-0395 NUT, CASTLE, 12MMNUT, CASTLE, 12MM
