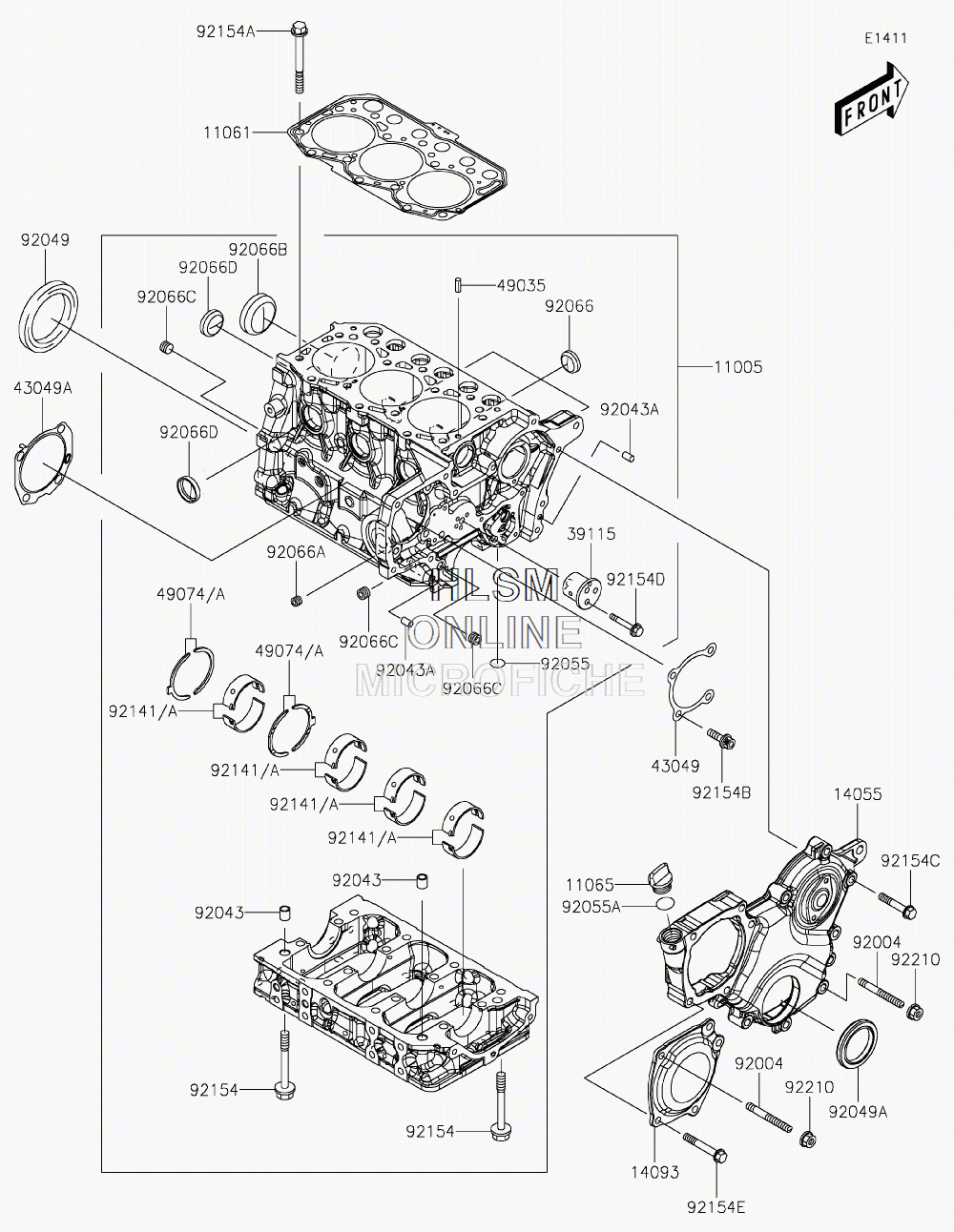

CRANKCASE для Kawasaki MULE PRO-DXT EPS LE (KAF1000CKF) - 2019 года выпуска
-
№АртикулНазвание
-
1100511005-0664 CYLINDER-ENGINECYLINDER-ENGINE
-
1106111061-1192 GASKET, HEADGASKET, HEAD
-
1106511065-0936 CAPCAP
-
1405514055-0622 CASE-GEARCASE-GEAR
-
1409314093-0439 COVERCOVER
-
3911539115-0025 SHAFT-IDLERSHAFT-IDLER
-
4304943049-0035 PACKINGPACKING
-
43049A43049-0036 PACKINGPACKING
-
4903549035-0016 PIN-SPRINGPIN-SPRING
-
4907449074-0003 PLATE-THRUSTPLATE-THRUST
-
49074A49074-0005 PLATE-THRUST, O/S, 0.25PLATE-THRUST, O/S, 0.25
-
9200492004-0744 STUD, 8X60STUD, 8X60
-
9204392043-0883 PIN, KNOCKPIN, KNOCK
-
92043A92043-0884 PIN, 6X10PIN, 6X10
-
9204992049-0787 SEAL-OILSEAL-OIL
-
92049A92049-0788 SEAL-OILSEAL-OIL
-
9205592055-0854 RING-ORING-O
-
92055A92055-0855 RING-ORING-O
-
9206692066-0846 PLUGPLUG
-
92066A92066-0847 PLUGPLUG
-
92066B92066-0849 PLUGPLUG
-
92066C92066-0850 PLUGPLUG
-
92066D92066-0860 PLUGPLUG
-
9214192141-0004 BEARING-PLANE, STDBEARING-PLANE, STD
-
92141A92141-0005 BEARING-PLANE, U/S, 0.25BEARING-PLANE, U/S, 0.25
-
9215492154-1981 BOLT, FLANGEDBOLT, FLANGED
-
92154A92154-1982 BOLT, FLANGEDBOLT, FLANGED
-
92154B92154-1983 BOLT, SOCKETBOLT, SOCKET
-
92154C92154-1984 BOLT, FLANGED, 8X35BOLT, FLANGED, 8X35
-
92154D92154-1995 BOLT, FLANGED, 6X40BOLT, FLANGED, 6X40
-
92154E92154-2000 BOLT, FLANGED, 8X45BOLT, FLANGED, 8X45
-
9221092210-1473 NUT, 8MMNUT, 8MM
