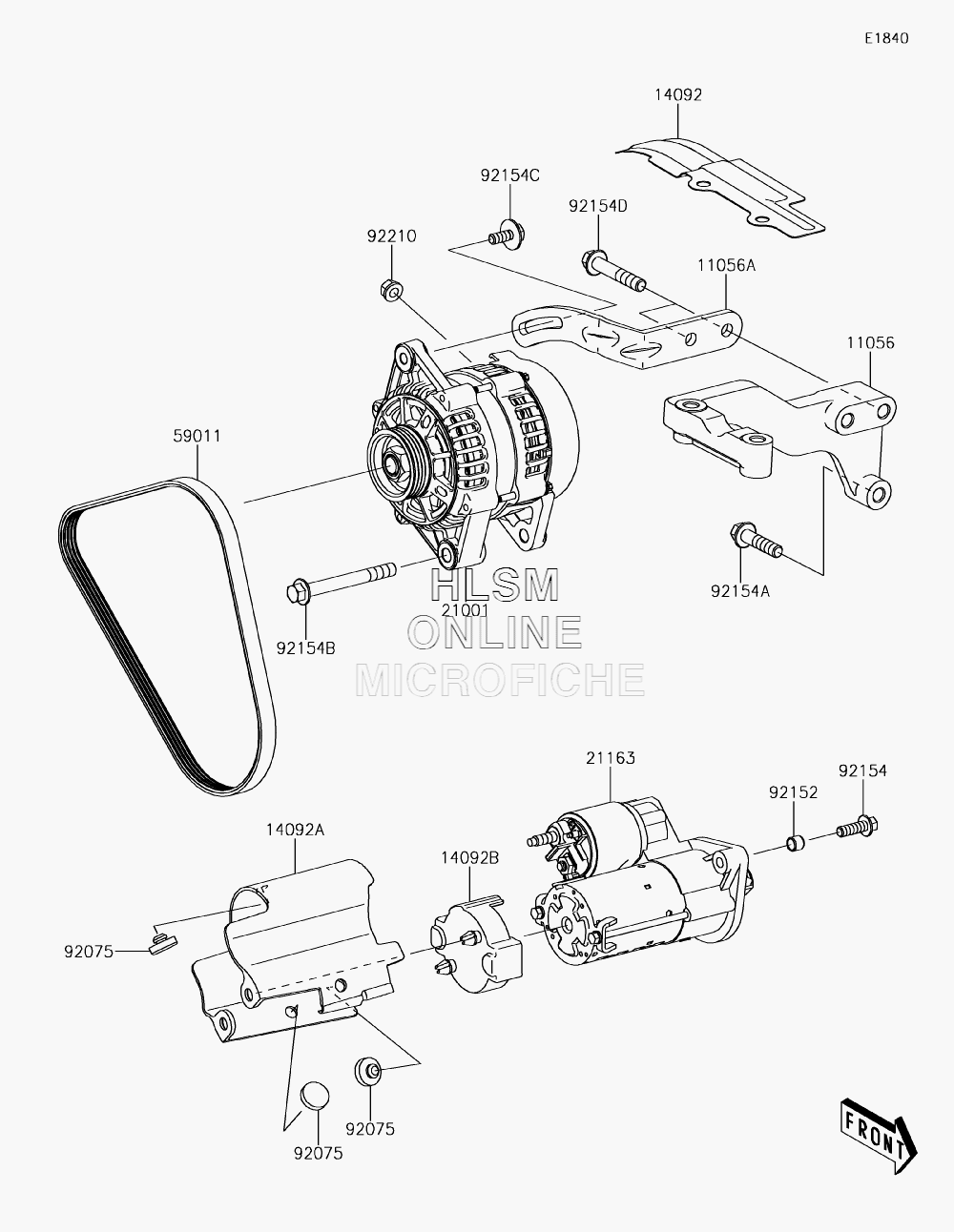

STARTER MOTOR W/ GENERATOR для Kawasaki MULE PRO-FX (KAF820EKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105611056-7083 BRACKET, SUSPENSION, REARBRACKET, SUSPENSION, REAR
-
11056A11056-7084 BRACKETBRACKET
-
1409214092-1198 COVER, ALTER BELTCOVER, ALTER BELT
-
14092A14092-1199 COVER, STARTER BODYCOVER, STARTER BODY
-
14092B14092-1200 COVER, STARTER END FACECOVER, STARTER END FACE
-
2100121001-0606 GENERATORGENERATOR
-
2116321163-0751 STARTER-ELECTRICSTARTER-ELECTRIC
-
5901159011-0041 BELTBELT
-
9207592075-005 DAMPERDAMPER
-
9215292152-1961 COLLARCOLLAR
-
9215492154-1602 BOLT, FLANGED, 8X25BOLT, FLANGED, 8X25
-
92154A92154-1604 BOLT, FLANGED, 10X40BOLT, FLANGED, 10X40
-
92154B92154-1605 BOLT, FLANGED, 10X90BOLT, FLANGED, 10X90
-
92154C92154-1606 BOLT, 8X20BOLT, 8X20
-
92154D92154-1607 BOLT, FLANGED, 10X55BOLT, FLANGED, 10X55
-
9221092210-0960 NUT, 6MMNUT, 6MM
