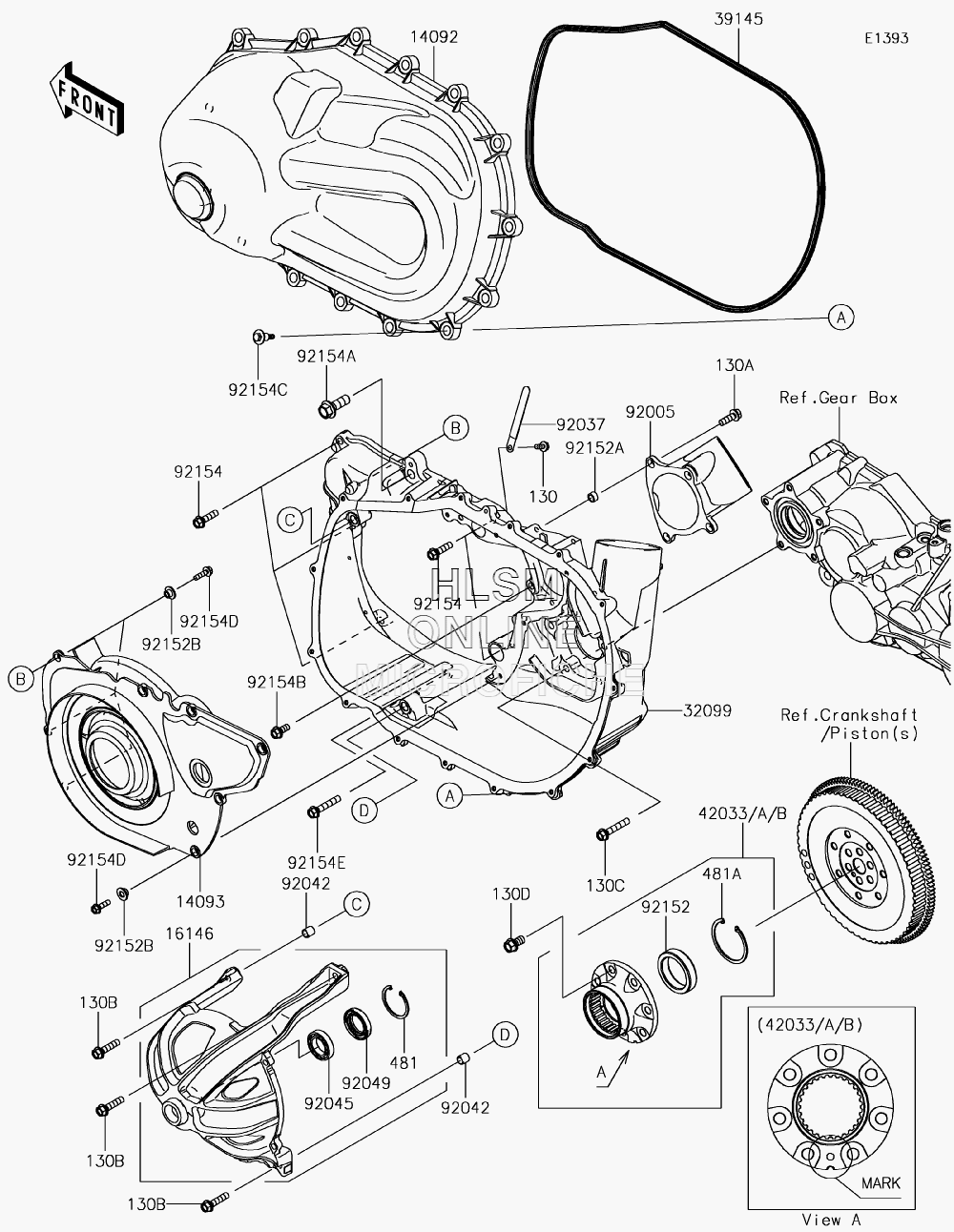

CONVERTER COVER для Kawasaki MULE PRO-FXT EPS CAMO (KAF820DKF) - 2019 года выпуска
-
№АртикулНазвание
-
130130BA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130A130BA0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
130B130BA0835 BOLT-FLANGED, 8X35BOLT-FLANGED, 8X35
-
130C130BA0845 BOLT-FLANGED, 8X45BOLT-FLANGED, 8X45
-
130D130CA1018 BOLT-FLANGED, 10X18BOLT-FLANGED, 10X18
-
1409214092-1202 COVER, CVTCOVER, CVT
-
1409314093-0717 COVERCOVER
-
1614616146-0734 COVER-ASSYCOVER-ASSY
-
3209932099-0746 CASE, CVTCASE, CVT
-
3914539145-0047 TRIM-SEALTRIM-SEAL
-
4203342033-0582 COUPLING-ASSY, B MARK, (WHITE)COUPLING-ASSY, B MARK, (WHITE)
-
42033A42033-0583 COUPLING-ASSY, A MARK, (BLUE)COUPLING-ASSY, A MARK, (BLUE)
-
42033B42033-0584 COUPLING-ASSY, C MARK, (YELLOW)COUPLING-ASSY, C MARK, (YELLOW)
-
481481J4500 CIRCLIP-TYPE-C, 45MMCIRCLIP-TYPE-C, 45MM
-
481A481J6200 CIRCLIPCIRCLIP
-
9200592005-0762 FITTING, INTAKEFITTING, INTAKE
-
9203792037-1993 CLAMPCLAMP
-
9204292042-031 PIN, DOWEL, 12X14PIN, DOWEL, 12X14
-
9204592045-036 BEARING-BALL, #6905BEARING-BALL, #6905
-
9204992049-0767 SEAL-OIL, HTC 28X45X8SEAL-OIL, HTC 28X45X8
-
9215292152-1822 COLLARCOLLAR
-
92152A92152-1853 COLLAR, 8.8X12.3X6.9COLLAR, 8.8X12.3X6.9
-
92152B92152-1931 COLLARCOLLAR
-
9215492154-0850 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
92154A92154-1337 BOLT, FLANGED, 12X35BOLT, FLANGED, 12X35
-
92154B92154-1386 BOLT, FLANGED, 8X18BOLT, FLANGED, 8X18
-
92154C92154-1522 BOLT, CVT COVERBOLT, CVT COVER
-
92154D92154-1525 BOLT, FLANGED, 6X22BOLT, FLANGED, 6X22
-
92154E92154-1526 BOLT, FLANGED, 8X45BOLT, FLANGED, 8X45
