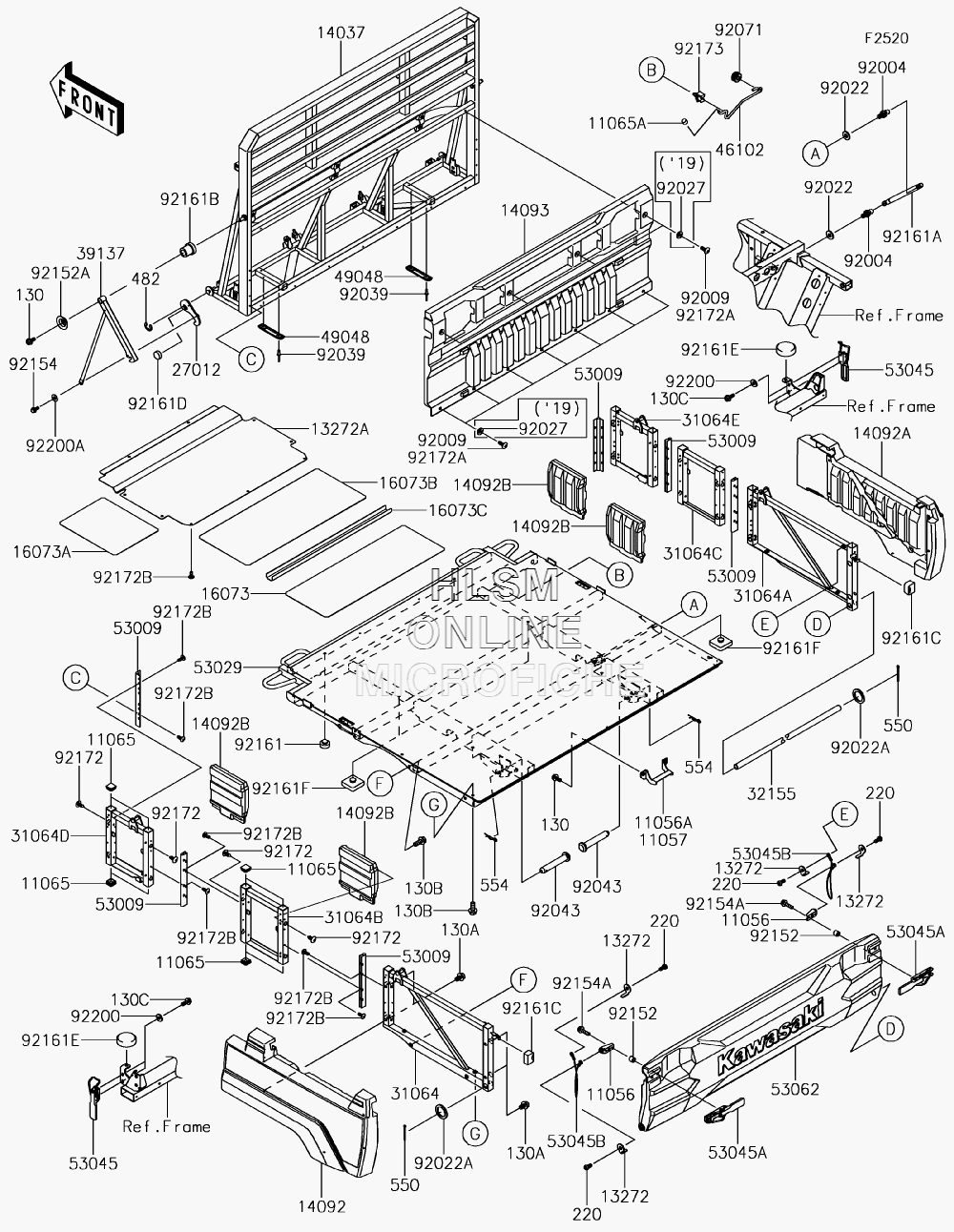

CARRIER(S) для Kawasaki MULE PRO-FXT EPS LE (KAF820CKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105611056-2848 BRACKET, STOPPERBRACKET, STOPPER
-
1105711057-1438 BRACKET, GATE SUPPORTBRACKET, GATE SUPPORT
-
1106511065-0848 CAPCAP
-
11065A11065-7504 CAPCAP
-
130130BA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130A130BA0812 BOLT-FLANGED, 8X12BOLT-FLANGED, 8X12
-
130B130BA0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130C130CA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
1327213272-1597 PLATEPLATE
-
13272A13272-1694 PLATEPLATE
-
1403714037-0787 SCREENSCREEN
-
1409214092-1179-6Z COVER, SIDE PANEL, REAR, LEFT HAND, (F.BLACK)COVER, SIDE PANEL, REAR, LEFT HAND, (F.BLACK)
-
14092A14092-1180-6Z COVER, SIDE PANEL, REAR, RIGHT HAND, (F.BLACK)COVER, SIDE PANEL, REAR, RIGHT HAND, (F.BLACK)
-
14092B14092-1181 COVER, SIDE PANEL, L & RCOVER, SIDE PANEL, L & R
-
1409314093-0301 COVER, SCREENCOVER, SCREEN
-
1607316073-0812 INSULATOR, 250X705INSULATOR, 250X705
-
16073A16073-0813 INSULATOR, 265X335INSULATOR, 265X335
-
16073B16073-0816 INSULATOR, 295X705INSULATOR, 295X705
-
16073C16073-0817 INSULATOR, 70X705INSULATOR, 70X705
-
220220AB0610 SCREW-PAN-CROS, 6X10SCREW-PAN-CROS, 6X10
-
2701227012-0787 HOOK, SCREENHOOK, SCREEN
-
3106431064-0634 PIPE-COMP, REAR, LEFT HANDPIPE-COMP, REAR, LEFT HAND
-
31064A31064-0635 PIPE-COMP, REAR, RIGHT HANDPIPE-COMP, REAR, RIGHT HAND
-
31064B31064-0638 PIPE-COMP, MIDDLE, LEFT HANDPIPE-COMP, MIDDLE, LEFT HAND
-
31064C31064-0639 PIPE-COMP, MIDDLE, RIGHT HANDPIPE-COMP, MIDDLE, RIGHT HAND
-
31064D31064-0640 PIPE-COMP, FRONT, LEFT HANDPIPE-COMP, FRONT, LEFT HAND
-
31064E31064-0641 PIPE-COMP, FRONT, RIGHT HANDPIPE-COMP, FRONT, RIGHT HAND
-
3215532155-1533 PIPEPIPE
-
3913739137-0661 STAY-COMPSTAY-COMP
-
4610246102-0606 RODROD
-
482482EA0100 CIRCLIP-TYPE-E, 10MMCIRCLIP-TYPE-E, 10MM
-
4904849048-0005 SHOE, SCREENSHOE, SCREEN
-
5300953009-0031 HINGEHINGE
-
5302953029-0348 CARRIER, BASECARRIER, BASE
-
5304553045-0025 HOOK-ASSY, MAIN LOCKHOOK-ASSY, MAIN LOCK
-
53045A53045-0026 HOOK-ASSY, MAIN CLAMPHOOK-ASSY, MAIN CLAMP
-
53045B53045-0029 HOOK-ASSYHOOK-ASSY
-
5306253062-0022 GATE-TAILGATE-TAIL
-
550550AA3030 PIN-COTTER, 3.0X30PIN-COTTER, 3.0X30
-
554554DA1200 PIN-SNAP, 12MMPIN-SNAP, 12MM
-
9200492004-0733 STUDSTUD
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9202292022-1533 WASHER, 8.2X19X2WASHER, 8.2X19X2
-
92022A92022-1618 WASHER, 23X32X2.3WASHER, 23X32X2.3
-
9202792027-1168 COLLAR, L=4.6COLLAR, L=4.6
-
9203992039-3763 RIVET, 3.2X8RIVET, 3.2X8
-
9204392043-0716 PIN, 12.4X72.4PIN, 12.4X72.4
-
9207192071-0763 GROMMET, 7.5X14X11GROMMET, 7.5X14X11
-
9215292152-1799 COLLAR, 6.8X10X9.3COLLAR, 6.8X10X9.3
-
92152A92152-2128 COLLARCOLLAR
-
9215492154-0974 BOLT, FLANGED, 5X4.5BOLT, FLANGED, 5X4.5
-
92154A92154-1356 BOLT, FLANGED, 6X22BOLT, FLANGED, 6X22
-
9216192161-0590 DAMPERDAMPER
-
92161A92161-1615 DAMPERDAMPER
-
92161B92161-1634 DAMPER, 12.5X20X24DAMPER, 12.5X20X24
-
92161C92161-1656 DAMPERDAMPER
-
92161D92161-1708 DAMPER, 17X6DAMPER, 17X6
-
92161E92161-1775 DAMPER, 10X40X10DAMPER, 10X40X10
-
92161F92161-1920 DAMPER, 10X34X10DAMPER, 10X34X10
-
9217292172-0284 SCREW, 6X16SCREW, 6X16
-
92172B92172-0739 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9217392173-1213 CLAMP, FUEL PIPECLAMP, FUEL PIPE
-
9220092200-1543 WASHER, 6.5X16X2.0WASHER, 6.5X16X2.0
-
92200A92200-1769 WASHER, 6.5X16X0.5WASHER, 6.5X16X0.5
